ASHCROFT G17M0242M1100#

B007ICC2RC

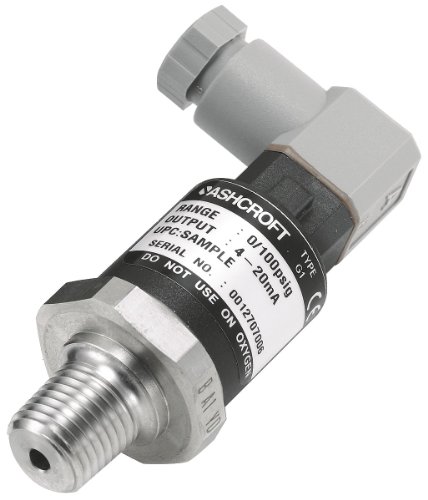

Ashcroft - G17M0242M1100# - Pressure Transducer, Range 0 to 100 psi,

Ashcroft - G17M0242M1100# - Pressure Transducer, Range 0 to 100 psi,zoom

Attributes

Key Value
(hidden) connection bui.4-Pin Mini-DIN Hirschma.
Accuracy+/-0.5%
Accuracy - Transmitter+/-0.50% Full Scale
Burst Pressure10x Range
Calibration Certificate-
Compatible WithAny Process Compatible .
Country of Origin (subj.United States
Electrical Connection4-Pin Mini-DIN Hirschma.
Electrical ConnectionsMini- DIN
Electrical Connections .4 Pin Mini-DIN Connector
Enclosure RatingIP67 ; NEMA 4X
Explosion/Fire ProofNo
Features-
Fitting Material304 Stainless Steel
For Use With-
Housing304 Stainless Steel
Housing Material20% Glass Reinforced Ny.
IncludesInstructions
Intrinsically SafeNo
IP RatingIP67
ItemPressure Transmitter
Loop ResistanceDependent on Loop Suppl.
Manufacturers Warranty .1 yr
Max. Pressure (PSI)200 psi
Maximum Loop Resistance1,227 Ohm Max
Maximum Operating Tempe.257 Degrees F
Maximum Pressure100 psi
Minimum Operating Tempe.-40 Degrees F
Minimum Pressure0 psi
NEMA RatingNEMA 4X
Number of Wires2
Operating Temp.-40 to 257 F
Operating Temp. - Trans.-40 Degrees to 257 Deg.
Operating Temperature-40 Degrees F to 257 .
Output4 to 20 mA at 12 to 30V.
Output - Transmitter4 to 20mA DC
Overpressure2x Range
Power Required9 to 36VDC
Power Required - Transm.9 to 36V DC
Pressure Range0 psi to 100 psi
Pressure Unitspsi
Process Connection1/4 in NPT Male
Process Connection Gend.Male
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection TypeNPT
Process Connection Type.MNPT
Range0 to 100 psi
Range Units - Transmitt.psi
Range Values - Transmit.0 to 100
Response Time1 msec
SeriesG2
StandardsCE, CSA 222 6101-1, UL .
Storage Temperature Ran.-40 Degrees F to 257 De.
Thermal Error+/-3% (-4 Degrees to 1.
Transmitter TypePressure Transmitter
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Wiring Entry1/2 in FNPT Conduit Con.
Wiring Entry - Transmit.1/2 in FNPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0121624127.211In Stock26Ashcroft0.2127.21 @ 1
thumbzoomsustainablesupply.comC1758857205.081In StockAshcroft0.2205.08 @ 1
thumbzoomRaptor SuppliesAE3GRU304.53374251In StockASHCROFT304.5337425 @ 1
