Burndy YA39A5

B002FYE7ZI

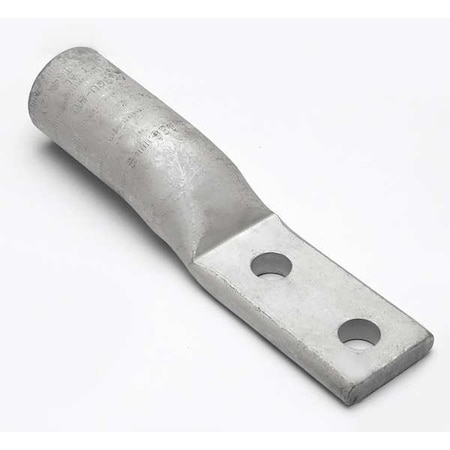

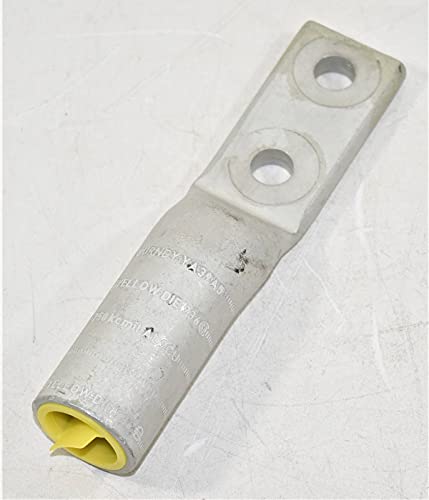

Two Hole Lug Compress Conct, 750 kcmil

Two Hole Lug Compress Conct, 750 kcmilzoom

Attributes

Key Value
ApplicationFor Aluminum & Copper C.
ApprovalsCSA, UL
ASINB002FYE7ZI
Barrel LengthLong
Barrel Outside Diameter1.46 in
Barrel SizeStandard
Barrel StyleChamfered
BrandBurndy-US, a Hubbell af.
Cable Size750 kcmil
Catalog NumberYA39A5
Certification - CSA App.Yes, No
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorYellow
Color CodeYellow
Color FamilyYellow
Conductor - AL Str Size700 kcmil;715 kcmil;750.
Conductor - AL Str Size.700 kcmil-750 kcmil
Conductor - Copper Str .700 kcmil;750 kcmil
Conductor - Copper Str .700 kcmil-750 kcmil
Conductor Size700 kcmil;750 kcmil
Connector TypeTerminal, Standard Barr.
Contact FinishTin
Country of OriginUS - United States, Mex.
Cross Reference Products60277
Current Stock3
Die Code936
Die ColorYellow
Die Index936
Dimension - B Length fr.2-7/16 in
Dimension - B Length in.2.46 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1 to 2, 1/2
Dimension - Bolt Size i.0.5
Dimension - D inch3.15 in
Dimension - Hole Size f.1 to 2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.180 mm
Dimension - Length Over.7.07 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.46 in
Dimension - Pad Width i.1.62 in
Dimension - Strip Lengt.2.875, 2 7/8
Dimension - Stud Size f.1 to 2
Dimension - Stud Size i.1 to 2, 1/2
Dimension - Thread Size1 to 2, 1/2
Dimension - Z inch0.77 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
FinishTin-Plated
For Conductor MaterialAluminum, Copper
For Stranded Aluminum W.700 kcmil
For Stranded Copper Wir.700 kcmil
For Stranded Copper Wir.750 kcmil
For Stud Size1/2 in
For Wire Size700 kcmil
For Wire TypeStranded
Gross Weight0.0438 lbs
GTIN00781810762028
Hole Center to Center1.75 in
Hole Center to End0.63 in
Hole Size0.56 in
Industry Standard(s)UL468A-468B
Inspection HoleNo
InsulatedNon-Insulated
International ShippingNo
ItemTwo-Hole Lug Compressio.
Item model numberYA39A5
Item NumberYA39A5
Item Type3A, YA-A
Lead TimeExpected to ship in 1-2.
Length7.07"
Length (Straight Wirewa.7.07 in
Lug Compression Connect.Two-Hole Lug Compressio.
Lug Wire Size750 kcmil
Made in USANo
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA39A5
MaterialAluminum, Tin-Plated Al.
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kV AC
MpnYA39A5
Net Weight0 lbs
Overall Length7.07 in
Overall Width1.62 in
Peep HoleNo
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
SKUZO-G4655734
Special FeaturesEnsure the Transformer .
StandardUL 486A-486B
StandardsCSA Certified, UL 486A-.
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Strip Length2 7/8 in
Stud Size1/2 in., 1/2 in
Sub BrandTERMINALS, HYLUG
SubCategoryElectrical
Temperature Rating194
Terminal MaterialCopper
Terminal TypeRing
Termination StyleCrimp
Tongue AngleStraight
Tongue Length1.4 in
Tongue StyleStandard
Tongue Thickness0.43 in
Tongue Width1.62 in, 1.62 "
Tongue Width Ranges1.51 inches and wider
Trade NameHYLUG?, HYLUG?
TypeYA-A
UL ListedYes
UL Listed 90 DEG C, 600.Straight
UNSPSC39121405
UPC781810762028, 781810556.
UPC 12 Digit7818107620288
UPC Code781810762028
Use WithCopper, Aluminum
Voltage - Maximum35000
Voltage Rating35
Width1.62"
Wire Size700 kcmil;750 kcmil, 75.
Wire Size (kcmil)750 kcmil
Wire Size Range750 kcmil - 700 kcmil
Wire Strip Length3 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com1966032.341In StockBURNDY32.34 @ 1
thumbzoomSpecialized Products109X52236.551In Stock43Burndy36.55 @ 1
Graybar8804863046.3232143Burndy46.3232 @ 1
thumbzoomZoroG465573456.8911Burndy0.5556.89 @ 1
thumbzoomKelly HayesYA39A563.051539Burndy63.05 @ 1
thumbzoomsimsupply.comZO-G465573467.4413Burndy67.44 @ 1
AmazonB002FYE7ZI75.351In StockBURNDY75.35 @ 1
kirbyrisk.com190182587.681In StockBurndy87.68 @ 1
thumbzoomMegadepotYA39A594.931In StockBurndy94.93 @ 1
thumbzoomusmegastore.comYA39A599.621In StockBurndy99.62 @ 1
us.rs-online.com71487231123.5912BURNDY123.59 @ 1
thumbzoommayerelectric.comBURYA39A5136.491In StockBURNDY136.49 @ 1
thumbzoomGalcoYA39A5-BURN137.261In StockBurndy0.0438137.26 @ 1
thumbzoomcrescentelectric.com56181139.731In StockBurndy-US, a Hubbell affiliate139.73 @ 1
thumbzoomRaptor SuppliesAB6RMR166.80918151In StockBURNDY166.8091815 @ 1
