- mpn335-10
- brandname: E-Z Lok
- manufacturername: E-Z Lok

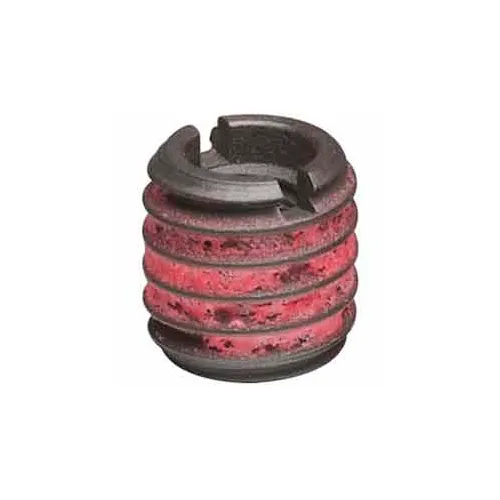

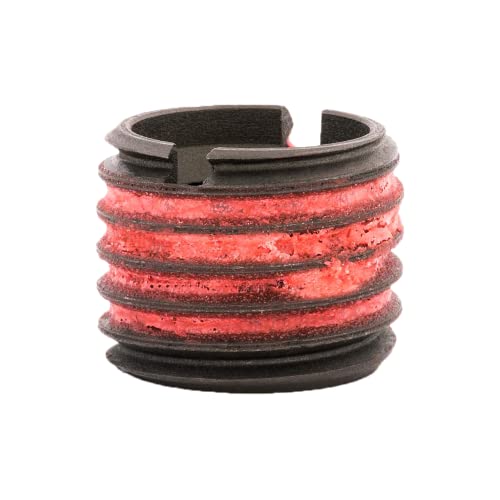

E-Z Lok Externally Threaded Insert, C12L14 Carbon Steel, Meets AISI 12L14, 5/8"-11 Internal Threads, 1"-8 External Threads, 0.781" Length, Made in US (Pack of 5)
- Brand: E-Z LOK
- PartNumber: 335-10
- Model: 335-10
- Size: 7/8"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: E-Z LOK
- Label: E-Z LOK
Attributes
| Key | Value |
|---|
| Application | For Use on Metal |
| Brand | E-Z Lok |
| Brinell Hardness | 163 |
| Coating | Use-Activated Epoxy |
| Drill Size | 7/8", 7/8 in, 7/8 |
| E-Z Lok P/N | 335-10 |
| External Thread | 1-8 |
| External Thread Class | 2A |
| External Thread Size | 1-8, 1"-8 |
| For Use in | Metal |
| Installation | Screwdriver or Bolt/Nut |
| Installation Tool P/N | Install Tool Not Availa. |
| Installed Length | 0.78 |
| Internal Thread | 5/8-11 |
| Internal Thread Class | 2B |
| Internal Thread Size | 5/8-11, 5/8"-11 |
| Item | Self Locking Thread Ins. |
| Length | 0.781", 25/32 in |
| Length (Straight Wirewa. | 25/32 in |
| Material | Steel, Steel - Carbon, . |
| Maximum External Thread. | #1-8 |
| Maximum Internal Thread. | 5/8-11 |
| Min. Full Thread Depth | 7/8 |
| Minimum Full Thread Dep. | 0.875 |
| Overall Length | 0.781, 19.8 |
| Package Quantity | 5 |
| Power Driver | 4ZE59 |
| Product Type | Self Locking Thread Ins. |
| Style | Solid Wall |
| Sub-Category | Extra Heavy Wall |
| System of Measurement | Inch |
| Tap Size | 1-8 |
| Tap Sizes | 1-8 |
| Tensile Strength (PSI) | 78,300, 78,300 psi |
| Thread Density | Coarse |
| Thread Type | UNC Internal/UNC Extern. |
| Wall Type | Extra Heavy |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB435279 | 2.57 | 5 | 25 | | EZ Lok | | 2.57 @ 25 |
 | MRO Supply | 6254472 | 3.08 | 14 | 25 | | E-Z Lok | | 3.08 @ 25 |
| reidsupply.com | 335-10 | 3.71 | 5 | 25 | | E-Z Lok | | 3.71 @ 25 |
 | National Supply Network | 8704140 | 4.6296 | 5 | 25 | | E-Z Lok | | 4.6296 @ 25 |
| motionindustries.com | 03951770 | 6.03 | 1 | 25 | | E Z Lok | | 6.03 @ 25 |
| grainger.ca | ELK335-10 | 15.19837764 | 1 | 25 | | E-Z LOK | 0.26 | 15.19837764 @ 25 |
 | Zoro | G408622320 | 15.95 | 1 | 25 | | Ez Lok | | 15.95 @ 25 |
