Hamilton R-MD-103NYB

mpnR-MD-103NYB
brandname: Hamilton
manufacturername: Hamilton

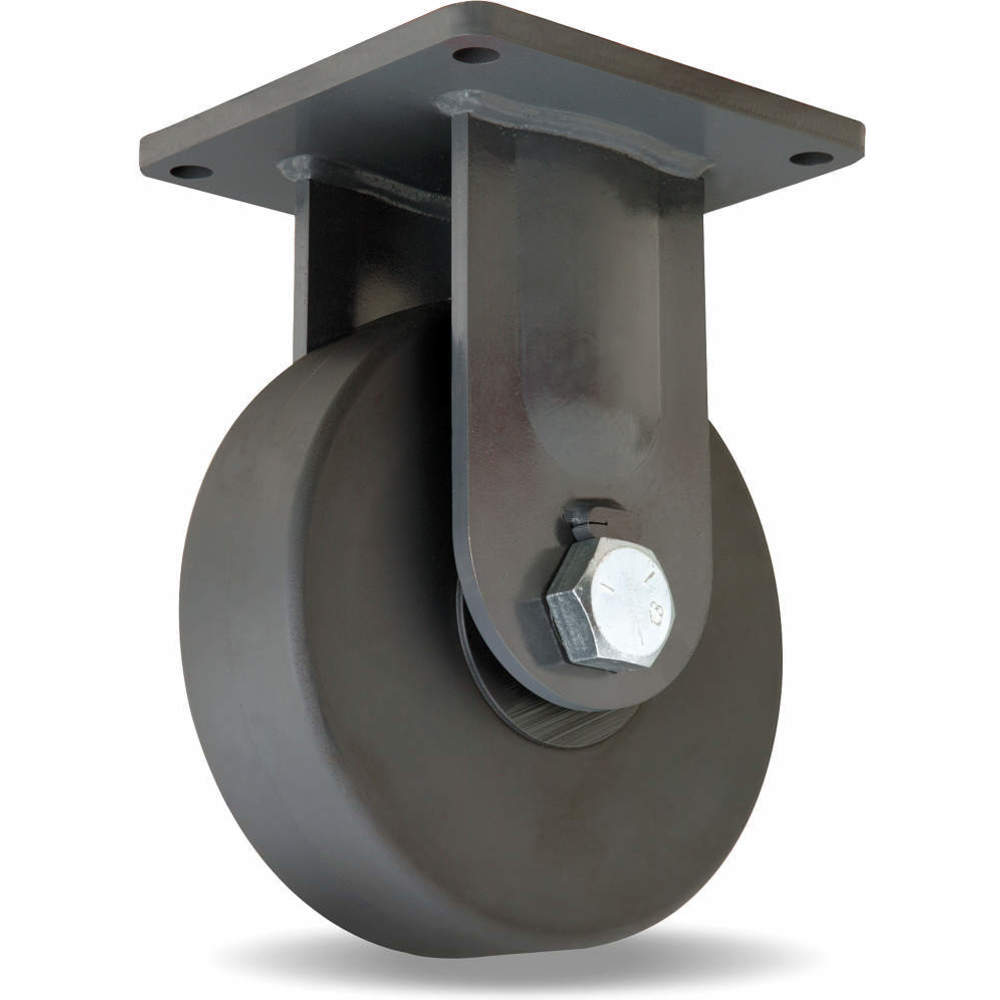

Hamilton Maxi-Duty Caster - 10"Dia.X3"W Wheel - 8200-Lb. Capacity - Nylast Plastic Wheel - Rigid

Hamilton Maxi-Duty Caster - 10"Dia.X3"W Wheel - 8200-Lb. Capacity - Nylast Plastic Wheel - Rigid

zoom

Brand: Hamilton
PartNumber: R-MD-103NYB
Model: R-MD-103NYB
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hamilton
Label: Hamilton

Attributes

Key	Value
Application	Aerospace Tooling, All .
Caster Brake Included	No
Caster Brake Type	No Brake Included
Caster Core Material	Nylon
Caster Frame Material	Steel
Caster Load Rating Range	Extra Super Duty
Caster Max. Temp.	200 Degrees F
Caster Min. Temp.	-30 Degrees F
Caster Plate Hole Patte.	D
Caster Plate Size	8-1/2" x 8-1/2"
Caster Plate Thickness	1/2"
Caster Product Group	Rigid Caster
Caster Sub-Type	Rigid
Caster Swivel Lock Type	No Lock Included
Caster Temp. Range	-30 Degrees to 200 Deg.
Caster Temp. Range Avai.	Yes
Caster Wheel Bearings	Ball
Caster Wheel Shape	Standard
Caster Wheel/Tread Mate.	Nylon
Core Color	Black
Country of Origin (subj.	United States
Durometer	85 shore D
Extended Lead	No
Features	Floor Protective
Frame Finish	Enamel
Frame Material	Steel
Includes	Spanner Bushing
Includes Thread Guards	No
Inside Bolt Hole Spacing	7 in x 7 in
Item	Standard Plate Caster
Load Rating	8200 lb
Load Rating Range	6000 lb and Greater
Mounting Bolt Dia.	1/2 in
Mounting Height	13 in
Mounting Plate Bolt Hol.	D
Mounting Plate Size	8 1/2 in x 8 1/2 in
Non-Marking	Yes
Number of Mounting Holes	4
Number of Wheels	1
Outside Bolt Hole Spaci.	7 in x 7 in
Overall Height	13"
Plate Caster Bolt Hole .	D
Plate Size	8-1/2" x 8-1/2"
Plate Thickness	1/2"
Replacement Wheel	49H451
Standards	ICWM
Swivel Lock Type	No Lock Included
Thread Guards	No
Tread Shape	Standard
Wheel Bearing Type	Precision Ball
Wheel Color	Black
Wheel Core Material	Nylon
Wheel Dia.	10 in
Wheel Width	3 in
Wheel/Tread Color	Black
Wheel/Tread Hardness	85 shore D
Wheel/Tread Hardness Ra.	Hard
Wheel/Tread Material	Nylon

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6937393	470.0	1	In Stock	26	Hamilton	43.0	470.0 @ 1
	sustainablesupply.com	C1491901	703.67	1	In Stock		Hamilton	43.0	703.67 @ 1
	motionindustries.com	05867316	820.19	1	In Stock		Hamilton Caster		820.19 @ 1
	Raptor Supplies	AG6WNM	1008.3525075	1	In Stock		HAMILTON		1008.3525075 @ 1
