- mpnTA-2/0
- brandname: ILSCO
- manufacturername: ILSCO

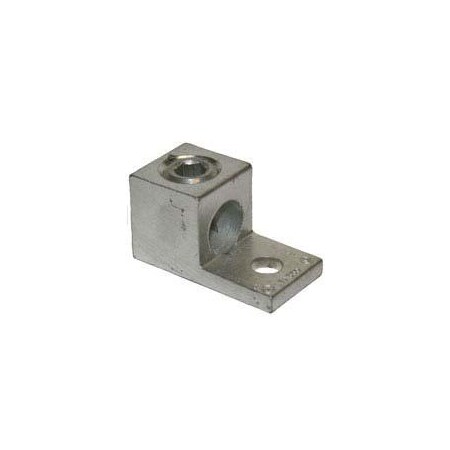

Ilsco TA-2/0 Aluminum lug single 2/0 -14 awg LUG20AL
- Brand: Ilsco
- PartNumber: TA-2/0
- Model: TA-2/0
- PackageQuantity: 1
- Manufacturer: Ilsco
- Label: Ilsco
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 14 - 2/0 |
| Approvals | CSA, UL |
| Bag Quantity | 1 |
| Carton Quantity Descrip. | STD PACK QTY 50 |
| Case Pack | 1 |
| Color | Silver |
| Color Family | Silver |
| Conductor Material | Aluminum, Copper |
| Conductor Range AL Soli. | 10 Sol - 14 Sol |
| Conductor Range AL Stra. | 2/0 Str - 14 Str |
| Conductor Range CU Soli. | 10 Sol - 14 Sol |
| Conductor Range CU Stra. | 2/0 Str - 14 Str |
| Conductor Type | Solid, Stranded |
| Connection | Mechanical |
| Connector Finish | Tin |
| Contains DE-OX? | No |
| Country of Origin | MX - Mexico |
| CSA File Number | LR-29601 |
| CSA Standard | C22.2 No. 65-03 |
| Dimension G (IN) | 0.422 |
| Dimension G (mm) | 10.7188 |
| Direct Burial | No |
| Drive Size Main | 3/16 |
| Drive Type Main | Internal Hex |
| Dual Rated | Yes |
| ECCN | EAR99 |
| Family Series | Ilsco Terminals, TA Ser. |
| Gross Weight | 0.032 lbs |
| Height | 0.794 in, 0.794 in. |
| Height BX (IN) | 2 |
| Item Number | TA-2/0 |
| Length | 1.469 in | 37.3126 mm, . |
| Length (mm) | 37.3126 |
| Lug Wire Size | 14-2/0 AWG |
| Manufacturer | Ilsco |
| Manufacturer Part Number | TA-2/0 |
| Material | Aluminum |
| Material/Composition | Tin-Plated Aluminum |
| Max Conductor Range | 2/0 AWG |
| Min Conductor Range | 14 AWG |
| Mounting | 1-Hole |
| Mounting Bolt/Stud Size | 1/4 |
| Mounting Hole Diameter . | 0.272 |
| Mounting Hole Diameter . | 6.9088 |
| Mounting Hole Spacing (. | 0 |
| Mounting Hole Type | Thru |
| NEMA Code | S-588-3 |
| Net Weight | 0.03 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Number of Mounting Holes | 1 |
| Number of Poles | 1 |
| Number of Ports / Wirew. | 1 |
| Number of Wire Binding . | 1 |
| Product Series | TA |
| Prop65 Compliance | This product is in comp. |
| RoHS Compliant | Yes |
| ROHS Indicator | IND |
| Standards | California Proposition . |
| Stud Size | 1/4 in, 1/4 in. |
| Tang Length (IN) | 0.844 |
| Tang Length (mm) | 21.4376 |
| Tang Thickness (IN) | 0.187 |
| Tang Thickness (mm) | 4.7498 |
| Tang Width (IN) | 0.623 |
| Tang Width (mm) | 15.8242 |
| Temperature Rating | 90?C |
| Type | Mechanical, Lug |
| UL / CULUS Specification | UL 467 Listed, UL 486A/. |
| UL Control Number | 453G |
| UL File Number | E6207 |
| UNSPSC | 39121408 |
| UPC Code | 78366917749 |
| Use With | Aluminum and Copper Con. |
| Voltage Rating | 35 kV |
| Weight | 0.032 lbs |
| Weight BX (LB) | 1.753 |
| Width | 0.623 in., 0.623 in |
| Width (in) | 0.62 |
| Width BX (IN) | 6.1875 |
| Wire Binding Hardware F. | Tin |
| Wire Binding Hardware M. | Aluminum |
| Wire Binding Screw Size | 7/16 |
| Wire Binding Torque | 120 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6503098 | 2.08 | 4 | 48 | 2 | Ilsco | | 2.08 @ 4 |
 | gordonelectricsupply.com | TA-2/0 | 2.09 | 1 | 47 | | ILSCO | | 2.09 @ 1 |
 | Galco | TA-2/0-ILSC | 2.64 | 1 | 34 | | Ilsco | 0.032 | 2.64 @ 1 |
 | mayerelectric.com | ILSTA20 | 3.17 | 1 | 31 | | ILSCO | 0.032 | 3.17 @ 1 |
 | French Gerleman | ILSCTA20 | 3.81 | 1 | 10 | | ILSCO | | 3.81 @ 1 |
 | Platt.com | 0029355 | 3.82 | 1 | 1688 | | Ilsco | | 3.82 @ 1 |
 | Lighting Supply | TA-2/0 | 4.88 | 1 | 31 | | ILSCO | | 4.88 @ 1 |
| Graybar | 88138292 | 6.9104 | 1 | In Stock | | ILSCO | | 6.9104 @ 1 |
| AmazonTP | B07G3BB9MV | 34.21 | 1 | 48 | 1 | Ilsco | | 34.21 @ 1 |
