- mpn090LT17FH6326
- brandname: Marathon Motors
- manufacturername: Marathon Motors

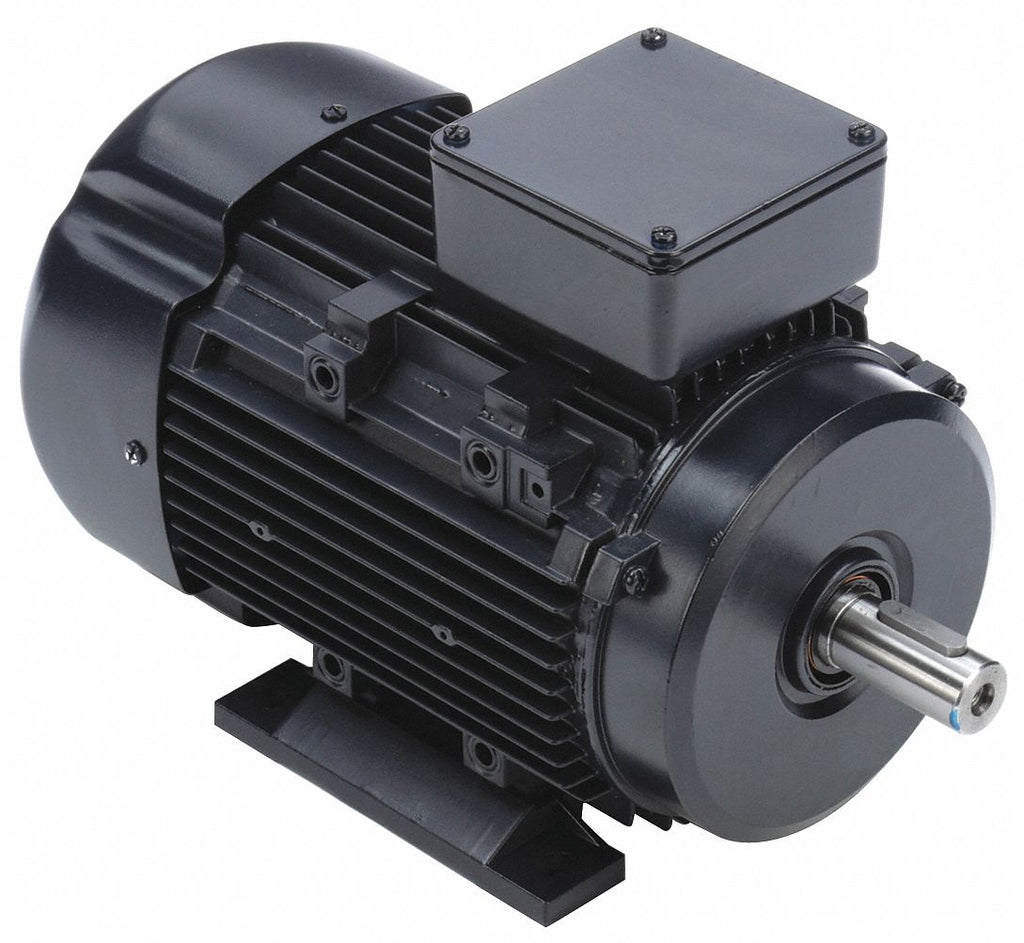

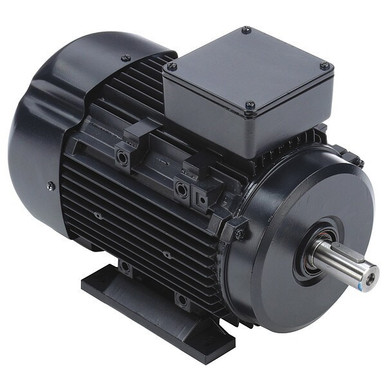

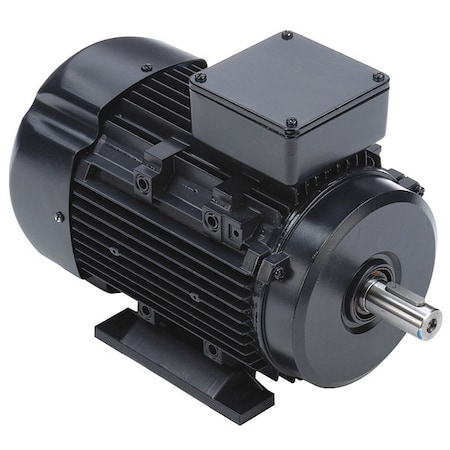

GP Motor,2 HP,1,745 RPM,230/460V AC,90L
- Brand: CAI - MARATHON MOTORS
- PartNumber: 090LT17FH6326
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Application |
| Approval | Approval |
| Brand | Marathon Motors |
| Category | Electric Motor |
| Composition | Aluminum |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Construction | Aluminum |
| Current Stock | 9 |
| Drive End Flange Type | Standard |
| Duty | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 87.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| FL Amps | 5.4/2.7 |
| FL Efficiency | 87.5 |
| Frame | 90L |
| Frame Material | Frame Material |
| Frequency Rating | Frequency Rating |
| Gross Weight | 0 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Insulation Class | Insulation Class |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | FACTORY NEW |
| Item Number | 090LT17FH6326 |
| Kilowatts | 1.5 kW |
| KW | 1.5 |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 291 mm |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | R319A |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Footed |
| mounting | Rigid Base |
| Mounting Type | Footed |
| Mpn | 090LT17FH6326 |
| Nameplate RPM | 1,745 |
| NEMA Frame | 90L |
| Net Weight | 44 lbs |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | 1, Number of Speeds |
| Overall Length | 341 mm |
| Part Number | 090LT17FH6326 |
| Phase | 3, Three |
| Product Type | IEC Metric |
| RPM | 1,745 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| SKU | ZO-G5610035 |
| Speed (RPM) | 1745 |
| Speeds | Speeds |
| Standards | CE, CSA, UL Recognized |
| SubCategory | Motors/Ac Motors |
| Unspsc | Unspsc |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230V, 460V, 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 090LT17FH6326-MARA | 547.53 | 1 | In Stock | | Marathon Electric | 44.0 | 547.53 @ 1 |
 | Zoro | G5610035 | 547.99 | 1 | 4 | | Marathon Motors | 42.3 | 547.99 @ 1 |
 | Dealers Electric | 090LT17FH6326 | 572.17 | 1 | In Stock | | Marathon Electric | 53.0 | 572.17 @ 1 |
 | motorsandcontrol.com | R319A | 611.94 | 1 | In Stock | | Marathon Motors | | 611.94 @ 1 |
 | simsupply.com | ZO-G5610035 | 648.57 | 1 | 9 | | Marathon Motors | | 648.57 @ 1 |
 | mecampbell.com | 090LT17FH6326 | 650.19 | 1 | In Stock | 33 | Marathon Motors | | 650.19 @ 1 |
 | sustainablesupply.com | C2792553 | 814.78 | 1 | In Stock | | Marathon | 42.3 | 814.78 @ 1 |
 | Raptor Supplies | AB7YQQ | 948.004434 | 1 | In Stock | | MARATHON MOTORS | | 948.004434 @ 1 |
 | pumpproducts.com | 090LT17FH6326 | 1245.5 | 1 | In Stock | | Marathon | | 1245.5 @ 1 |
