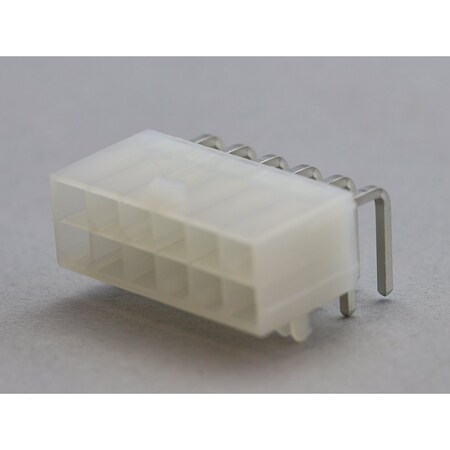

Molex Connector, Header, 12Pos, 2Row, 4.2Mm - 39301120
- Brand: Molex
- PartNumber: 39301120
- PackageQuantity: 1
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5569-12A2 |
| Alternate Part No. | 538-39-30-1120 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Male Pin |
| Contact Finish | Matte Tin Plated |
| Contact Finish - Mating | 100.0?in (2.54?m) |
| Contact Finish - Post | Brass |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | General Purpose, Indust. |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.142" (3.60mm) |
| Contact Length - Post | - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating | Tin |
| Contact Plating Thickne. | 2.54 ?m |
| Contact Shape | Tin |
| Contact Type | 0.165" (4.20mm) |
| Current Rating | 13 A |
| Current Rating (Amps) | - |
| Family Name | Mini-Fit Jr. |
| Fastening Type | - |
| Features | - |
| Flammability Rating | UL 94V-2 |
| Hole Center to Center | 4.2 mm |
| Housing Material | Nylon |
| Ingress Protection | UL94 V-2 |
| Insulation Color | - |
| Insulation Height | Square |
| Insulation Material | Board Lock |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-30-1120 |
| Mated Stacking Heights | 100.0?in (2.54?m) |
| Material | Nylon |
| Material Flammability R. | Natural |
| Max. Temp. | 240?C |
| Max. Voltage | 600V AC/DC |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Solder |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12, 2 |
| Number of Positions Loa. | Board to Cable/Wire |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | - |
| Orientation | Right Angle |
| Overall Contact Length | 0.378" (9.60mm) |
| Package | Active |
| Package Quantity | 1 |
| Packaging | Bulk |
| Part # Aliases | 0039301120 5569-12A2 |
| Part Status | Header |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 12 |
| Plating Material | Matte Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | All |
| Series | Bulk, 5569, 5569 Series |
| Shrouding | Through Hole, Right Ang. |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Shrouded - 4 Wall |
| Terminal Finish | Matte Tin Plated |
| Terminal Type | Through Hole |
| Termination | Locking Ramp |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Right Angle Header, Pin. |
| UPC Code | 800753748163 |
| Voltage Rating | -, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Power and Signal Group | 0039301120 | 0.6697 | 1200 | 149 | | Molex | | 0.6697 @ 1200 |
| Waldom | MOLEX 39-30-1120 | 0.7 | 80 | 11043 | | MOLEX | | 0.7 @ 80 |
| Onlinecomponents.com | 39-30-1120 | 0.85 | 1 | 1532 | | MOLEX / WALDOM | | 0.85 @ 1 |
 | jensentools.com | 10188518 | 0.87 | 1 | 10845 | | Molex | | 0.87 @ 1 |
 | NEP Electronics | 39-30-1120 | 0.8971 | 85 | 10845 | | Molex | | 0.8971 @ 85 |
| AmazonSC | B00MEKQ7A6 | 1.58 | 1 | 63 | | Molex | 0.000625 | 1.58 @ 1 |
 | Digi-Key | WM1356-ND | 1.62 | 1 | 63 | | Molex | | 1.62 @ 1 |
| us.rs-online.com | 70373101 | 1.95 | 1 | 51 | | Molex Incorporated | | 1.95 @ 1 |
 | Newark | 98K9012 | 2.23 | 1 | 2245 | | MOLEX | | 2.23 @ 1 |
| RS Delivers | 510-9887P | 2.3256 | 1 | 235 | | Molex | | 2.3256 @ 1 |
 | swatee.com | 39-30-1120 | 3.1 | 1 | 1048 | | Molex | | 3.1 @ 1 |
 | Zoro | G2764891 | 87.2 | 1 | In Stock | | Molex | | 87.2 @ 1 |
 | TME | MX-39-30-1120 | 99.4 | 1 | 246 | | MOLEX | | 99.4 @ 1 |
