Qa1 NML7S

mpnNML7S
brandname: QA1
manufacturername: QA1

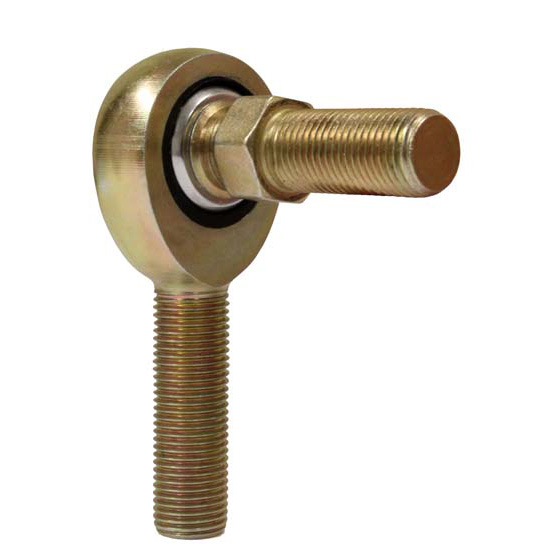

Male Stud Rod End,Nylon/PTFE,LH,7/16-20

Male Stud Rod End,Nylon/PTFE,LH,7/16-20

zoom

Brand: Qa1
PartNumber: NML7S
Color: Natural
PackageQuantity: 1
Binding: Misc.
Manufacturer: Qa1
Label: Qa1

Attributes

Key	Value
Application	Low Load, Moderate Osci.
Ball	52100 Steel Spherical
Ball Diameter	0.812 in
Ball Material	Alloy Steel
Ball Material Grade	52100
Ball Stud Center Length	1 3/4 in
Ball Stud Material	Carbon Steel
Ball Stud Thread Direct.	Left Hand
Ball Stud Thread Length	7/8 in
Ball Stud Thread Size	7/16"-20
Bore Diameter	7/16 in
Bore Diameter Tolerance	+0.0025/-0.0005 in
Brand	Qa1
Dimension A	7/16"-20
Dimension B	0.688 in
Dimension C	1.062 in
Dimension E	1.125 in
Dimension G	2.125 in
Dimension H	1.375 in
Dimension J	2.688 in
Finish	Zinc Plated
GTIN Code	806990024336
Head Outside Diameter	1 1/8 in
Head Width	0.437 in
Hole Diameter	0.438"
Housing Material	Carbon Steel
Housing Material Finish	Chrome Plated
Inner Ring Width	0.562 in
International Shipping	No
Item	Spherical Rod End
Lead Time	Expected to ship in 1-2.
Load Capacity	5350 lbs.
Material Type	Steel
Maximum Ball Swivel	14 Degrees
MFG. Part #	NML7S
Mpn	NML7S
Overall Length	2 11/16 in
Race Material	Nylon/PTFE
Resistance Properties	Corrosion Resistant, Hi.
Rod End Attachment	Male Threads/Stud
Rod End Construction	3-piece
Rod End Head Width	0.562"
Rod End Misalign Angle	14 degrees
Rod End Type	Spherical Rod End
Self Lubricating Bearing	Yes
Shank Thread Direction	Left Hand
Shank Thread Gender	Male
Shank Thread Length	1 3/8 in
Shank Thread Size	7/16"-20
SKU	ZO-G4426405
Standards	ISO Certified 9001
Static Radial Load Capa.	5,350 lbf
Stud Length	1.062 in
SubCategory	Power Transmission
System of Measurement	Inch
Thread	Left Hand
Thread Length	1.375"
Thread Pitch	7/16"-20
Thread Size	7/16"-20
Thread Type	LH Male
Type	Male Studded
UPC	806990024336

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Summit Racing	QA1-NML7S	6.99	1	In Stock		QA1		6.99 @ 1
	Zoro	G4426405	6.99	1	7		Qa1	0.25	6.99 @ 1
	speedwaymotors.com	721NML7S	6.99	1	In Stock		QA1		6.99 @ 1
	us.rs-online.com	72211871	8.32	1	In Stock		QA1		8.32 @ 1
	Jegs	122-NML7S	10.99	1	In Stock		QA1		10.99 @ 1
	motionindustries.com	06464432	13.21	1	In Stock		QA1 Precision Products		13.21 @ 1
	simsupply.com	ZO-G4426405	14.68	1	In Stock		Qa1		14.68 @ 1
	grainger.ca	GGF20F952	14.92982942	1	In Stock		QA1	0.25	14.92982942 @ 1
	Raptor Supplies	AB4UYD	22.5816435	1	In Stock		QA1		22.5816435 @ 1
