Square D by Schneider Electric 9007C54CS17

B00CONFX5I

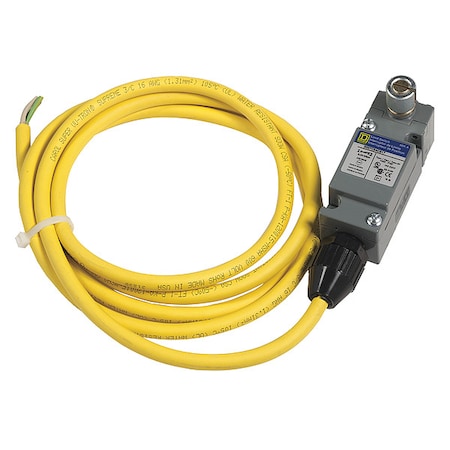

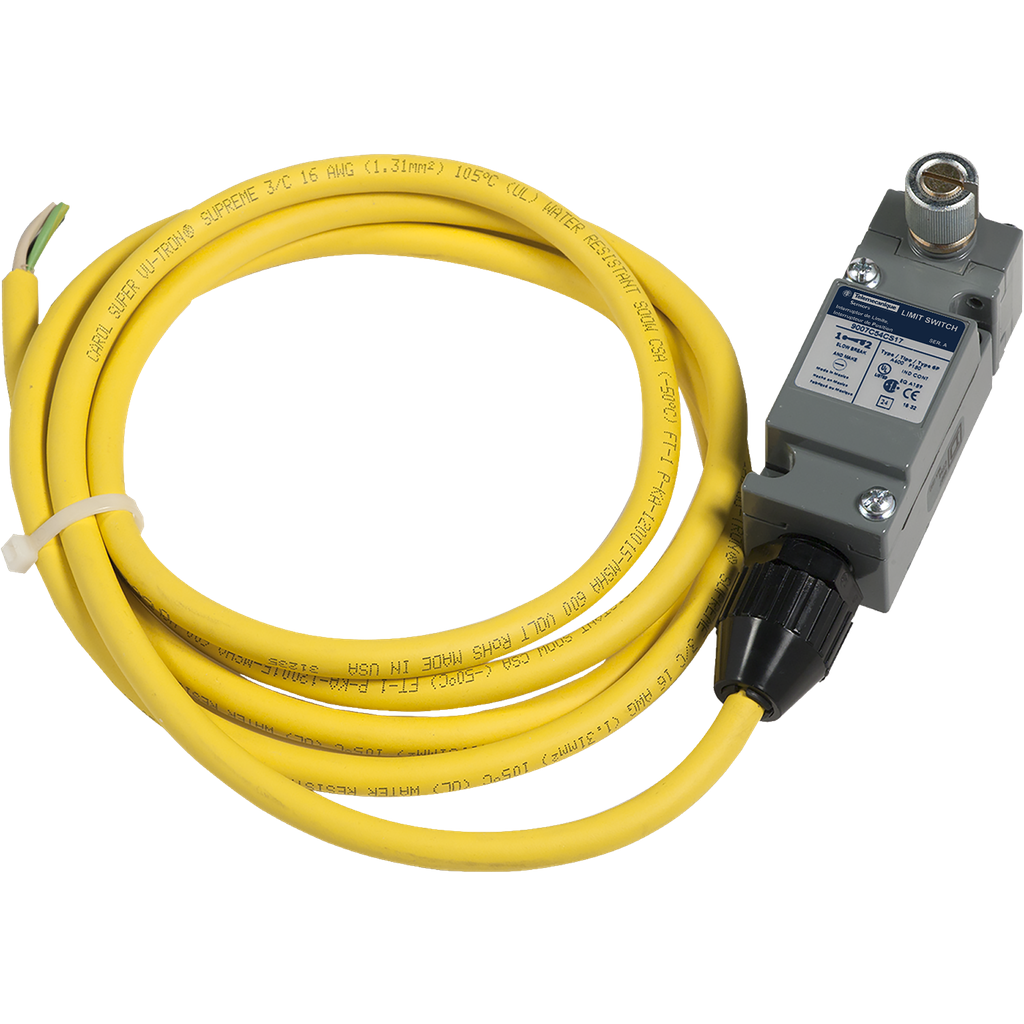

Square D 9007C54CS17 Heavy Duty NEMA Limit Switch, Full Size, 1 Pole, Maintained Rotary Head, for Frigoscandia Products

Square D 9007C54CS17 Heavy Duty NEMA Limit Switch, Full Size, 1 Pole, Maintained Rotary Head, for Frigoscandia Productszoom

Attributes

Key Value
[Ie] Rated Operational .10 A, A600 || 10 A, Q600
[Ui] Rated Insulation V.600 V
AC Contact Rating - Lim.10A @ 600V
ActionCW and CCW;Snap action
Actuation TypeCW and CCW
Actuatorspring return lever arm.
Actuator TypeSide Rotary - No Lever
Ambient Air Temperature.-20-185 ?F
Amperage Rating10
Amps10
ApplicationC,HEAVY DUTY,TURRET HEA.
Body Materialzinc alloy
BrandSquare D by Schneider E.
Cable EntryNPT conduit entry 0.5-0.
California Proposition .Diisononyl phthalate (D.
Catalog Number9007C54CS17
CategorySwitches
CertificationCE || CSA || UL Listed
CircuitSPDT (DB/DM)
Contact Actionsnap action
Contact Configuration1 NO/1 NC;Form Z
Contact FormForm Z
Contact Form- Switches1 NO/1 NC; Form Z
Contact Materialsilver alloy (Ag/Ni)
Contact Operationsnap action
Contacts Materialsilver alloy (Ag/Ni)
Contacts Type And Compo.1 NO/1 NC
Country of OriginMexico
Current Rating (Amps)10A (AC)
DC Contact Rating - Lim.10A @ 600V
Description9007, LIMIT SWITCH 600 .
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Device Short NameC
Differential Travel-
Digi-Key Part Number4008-9007C54CS17-ND
Electrical Life-
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of .
Features-
Head Typeturret head rotary lever
Ingress Protection-
ItemLimit Switch
Item Typeturret head rotary lever
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9007C54CS17
Manufacturer Standard L.1 Weeks
Maximum Displacement An.90 ?
Mechanical Life-
MfrSchneider Electric
Minimum Torque For Trip.3 lbf.in
Mounting TypeChassis Mount
Operating Force-
Operating Position-
Operating Temp. Range-20-185 ?F
Operating Temperature-29?C ~ 85?C, -20-185 A.
Overtravel-
PackageBox
Pretravel-
Product CertificationsCE || CSA || UL Listed
Product StatusActive
Provided Equipmentreceptacle
Range Of Product9007
Reach RegulationReference contains Subs.
Release Force-
Series9007C, C
Series Nameheavy duty
SizeNPT CONDUIT ENTRY, CABL.
StandardCE;CSA;UL Listed
Sub BrandC
Switch ActuationCW and CCW
Switch FunctionSPDT-DB, On-Mom
Termination StyleWire Leads
Tripping Angle45 ?
Type Of Operatorspring return lever arm.
UPC785901046042
Voltage Rating10 A, A600-10 A, Q600
Voltage Rating - AC600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key16378375339.5217Schneider Electric339.52 @ 1
thumbzoomZoroG0560710344.791In Stock10Square D2.46344.79 @ 1
thumbzoomsustainablesupply.comC3001445380.81In StockSquare D2.46380.8 @ 1
standardelectricsupply.com2274464452.661In StockSquare D452.66 @ 1
steinerelectric.com96027458.811In StockSquare D?458.81 @ 1
thumbzoommayerelectric.comSQD9007C54CS17477.511In StockSQUARE D477.51 @ 1
thumbzoomcrescentelectric.com143269551.961In StockSquare D by Schneider Electric551.96 @ 1
thumbzoomNational Supply Network69532604558.471In StockSquare D558.47 @ 1
