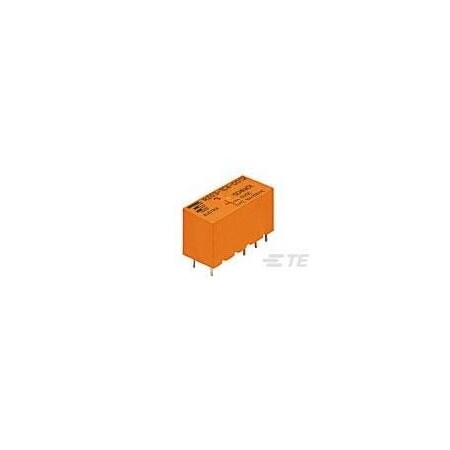

TE Connectivity / AMP 2-1415899-4

B0846BB7DF

2-1415899-4, RZ03-1C4-D048 (25 Items)

2-1415899-4, RZ03-1C4-D048 (25 Items)zoom

Attributes

Key Value
AC contacts rating @R16A / 250V AC
Body dimensions29x12.7x15.7mm
CategoryRelays
Coil Current8.4mA
Coil InsulationClass F
Coil Magnetic SystemMonostable, DC
Coil power consumption400mW
Coil Power Rating Class300 ? 400
Coil Power Rating DC400
Coil resistance5.73k?
Coil Resistance5.73 kOhms, 5730
Coil Special FeaturesUL Coil Insulation Clas.
Coil TypeNon Latching
Coil Voltage48VDC
Coil voltage min.33.5V DC
Coil Voltage Rating48
Contact Arrangement1 Form C (CO)
Contact Current Class10 ? 20, 16
Contact current max.16A
Contact Current Rating .16
Contact FormSPDT (1 Form C)
Contact Limiting Breaki.16
Contact Limiting Contin.16
Contact Limiting Making.30
Contact Limiting Short-.16
Contact materialAgNi 90/10
Contact MaterialAgNi90/10, Silver Tin O.
Contact Number of Poles1
Contact Rating (Current)16A
Contact Switching Volta.400
Contact Voltage Rating250
Contacts configurationSPDT
Country of Origin (subj.Austria
DC contacts rating @R16A / 24V DC
Environmental Ambient T.85??C?[?185??F?]
Environmental Ambient T.70 ? 85
Environmental Category .RTII
Features-
Height Class (Mechanica.15 ? 16
Insulation Clearance Be.10?mm?[?.394?in?]
Insulation Clearance Cl.8
Insulation Creepage Bet.10?mm?[?.394?in?]
Insulation Creepage Cla.8
Insulation Initial Diel.4000
Insulation Initial Diel.5000
Insulation Initial Diel.1000
Insulation Special Feat.Tracking Index of Relay.
Length Class (Mechanica.25 ? 30
ManufacturerTE Connectivity
Mechanical durability1000000 cycles
MfrTE Connectivity Potter .
MountingPCB
Mounting TypeThrough Hole
Must Operate Voltage33.6 VDC
Must Release Voltage4.8 VDC
Operate Time8ms
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
PackageBulk
Packaging MethodCarton, Tube
Part StatusActive
Power Relay TypeStandard
Product Height15.7?mm?[?.618?in?]
Product Length29?mm?[?1.142?in?]
Product Weight10?g?[?.353?oz?]
Product Width12.7?mm?[?.5?in?]
Rated coil voltage48V DC
Relay Mounting TypePrinted Circuit Board
Relay seriesRZ
Relay TypeGeneral Purpose
Relay variantminiature
Release Time6ms
Seal Rating-
SeriesRZ, SCHRACK
Switched voltagemax. 300V DC,
Switching Voltage400VAC - Max
Terminal pitch5mm
Terminal TypePCB-THT
Termination StylePC Pin
Type of relayelectromagnetic
Width Class (Mechanical)12 ? 16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-1415899-41.334017369TE CONNECTIVITY/AMP BRAND1.33 @ 40
us.rs-online.com721434971.72300058TE Connectivity1.72 @ 3000
Onlinecomponents.com2-1415899-41.79132500TE Connectivity / AMP Brand1.79 @ 1
thumbzoomZoroG2010263562.3300043Te Connectivity2.3 @ 3000
Digi-Key54276332.881250TE Connectivity Potter & Brumfield Relays2.88 @ 1
Newark36AC08302.92116889AMP - TE CONNECTIVITY2.92 @ 1
RS Delivers124-44913.611120TE Connectivity3.6 @ 1
TE Connectivity2-1415899-43.7721500TE Connectivity (TE)3.772 @ 1
