TE Connectivity 7-146252-5

B00KSUY1YS

TE Connectivity Part Number 7-146252-5

TE Connectivity Part Number 7-146252-5zoom

Attributes

Key Value
Applications-
Base Product Number146252
Body OrientationStraight
BrandTE Connectivity
CategoryConnectors, Interconnec.
Connector SystemBoard to Board, Wire to.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.318" (8.08mm)
Contact Length - Post0.125" (3.18mm)
Contact MaterialCopper Alloy, Phosphor .
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3.0A
Current Rating (Amps)3A
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.090" (2.29mm)
Insulation MaterialLiquid Crystal Polymer .
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number Of Contacts50
Number of Positions50
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length0.533" (13.55mm)
PackageBulk
Part StatusActive
Pitch2.54mm
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II
Shrouded/UnshroudedUnshrouded
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Termination MethodSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key22757795.15371000In StockTE Connectivity AMP Connectors5.1537 @ 1000
WaldomTE CONNECTIVITY AMP BRAND 7-146252-55.2915600TE CONNECTIVITY/AMP BRAND5.29 @ 15

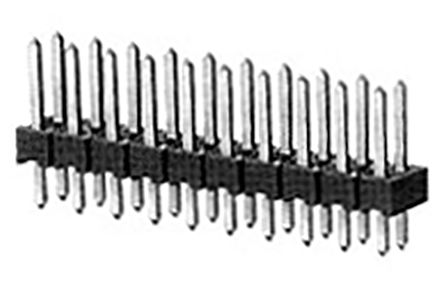

thumbzoomRS Delivers863-84265.53321000In StockTE Connectivity5.5332 @ 1000
Newark19R73886.61000In StockAMP - TE CONNECTIVITY6.6 @ 1000
Mouser571-7-146252-58.081368TE Connectivity8.08 @ 1
