TE Connectivity 3-1393816-0

B00KSPE0MQ

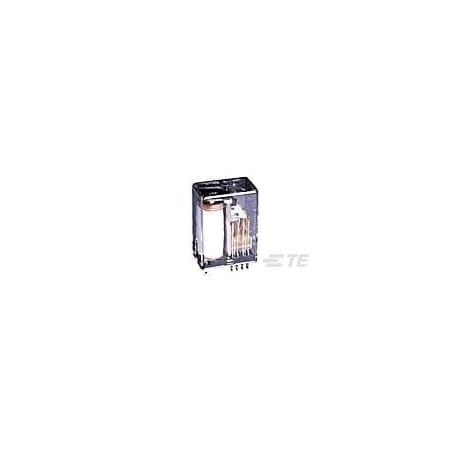

TE Connectivity Part Number 3-1393816-0

TE Connectivity Part Number 3-1393816-0zoom

Attributes

Key Value
Base Product Number3-1393816
Body Depth - Relay1.181 in
Body Height - Relay1.575 in
Body Width - Relay0.748 in
CategoryRelays
Coil Current34.4 mA
Coil Insulation-
Coil Resistance3.2 kOhms, 3200 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage110VAC
Contact Form4PDT (4 Form C)
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.2A
Contact Limiting Contin.2A
Contact Limiting Making.2A
Contact Limiting Short-.2A
Contact MaterialAg, Silver (Ag), Gold (.
Contact Rating5A
Contact Rating (Current)2 A
Contact Voltage Rating125 VAC [ 150 VDC ]
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Voltage500 Vrms Adjacent Conta.
Digi-Key Part Number3-1393816-0-ND
Electrical Connection -.Solder Terminals
FeaturesStandard Type, -
Item - RelayCradle W Relay
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.3-1393816-0
MfrTE Connectivity Potter .
Mounting TypeSocketable, Screw Mount.
Must Operate Voltage88 VAC
Must Release Voltage-
Number of Poles4
Operating Temp. Range-40 to 70 ?C
Operating Temperature-40?C ~ 70?C
PackageBulk
Power Consumption - Rel.1150 mW
Product StatusActive
Protection CategoryRTI
Relay TypeGeneral Purpose
Seal Rating-
SeriesV23005, AXICOM
Switching Voltage125VAC, 150VDC - Max, 1.
Terminal TypePlug-In, Solder
Termination StylePlug In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1393816-0200.4214TE CONNECTIVITY/AMP BRAND200.42 @ 1
Newark10AK1538252.0814POTTER&BRUMFIELD - TE CONNECTIVITY252.08 @ 1
thumbzoomDigi-Key2398392272.914TE Connectivity Potter & Brumfield Relays272.9 @ 1
thumbzoomZoroG105865983325.991In StockTe Connectivity325.99 @ 1
