WAGO NA

mpn750-504/000-800
brandname: Wago
manufacturername: Wago

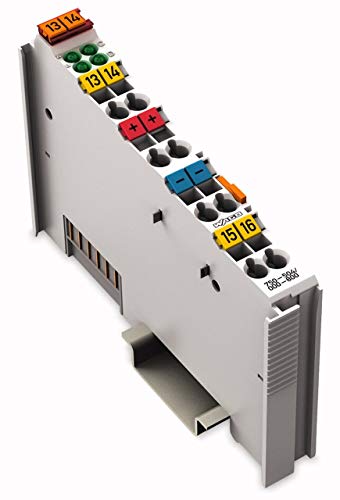

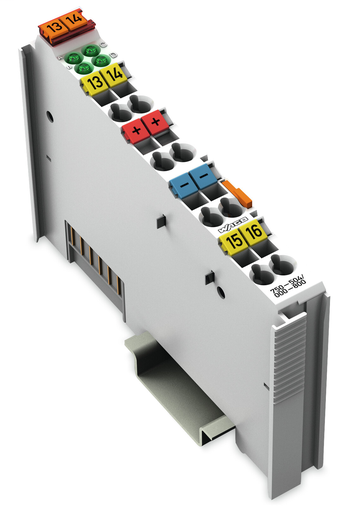

Wago 750-504/000-800 4DO

Wago 750-504/000-800 4DO

zoom

Brand: WAGO
PartNumber: NA
Manufacturer: Wago
Label: Wago

Attributes

Key	Value
Brand	WAGO
Catalog Number	750-504/000-800
Color	light gray
Conductor Range	14-28 AWG Conductor Ran.
Connection	Terminals (Cage-clamp)
Connection technology	8 x CAGE CLAMP?
Country of Origin	Germany
Country of origin	DE
Depth	69.8 mm / 2.748 inches,.
Depth UOM	Inch
Dimensions	H100mm x W12mm x D69.8mm
GTIN	4045454870454
Height	100?mm?/ 3.937?inch, 10.
Height UOM	Inch
Housing material	Polycarbonate, polyamid.
Indicator	LED (A-D) green: Status.
Isolation	500?V system/field
Item Type	I/O unit
Load type	Resistive, inductive, l.
Made in USA	No
Manufacturer	WAGO
Mounting	Din Rail
Mounting position	Horizontal (standing/ly.
Mounting type	DIN-35 rail
Number of digital outpu.	4
Output characteristic	High-side switching
Output current	Short-circuit-protected
Output current per chan.	0.5 A
Protection type	IP20
RoHS Indicator	Yes
Signal type	Voltage
Solid conductor	0.08 ? 2.5?mm??/ 28 ? 1.
Switching frequency (ma.	1?kHz
Total number of channel.	4
Vibration resistance	4g per IEC 60068-2-6
Weight	48.423 g, 48.423
Weight UOM	Grams
Width	0.472, 12?mm?/ 0.472?in.
Width UOM	Inch

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Platt.com	0308936	110.03	1	In Stock		Wago		110.03 @ 1
	crescentelectric.com	1081020	110.6	1	In Stock		WAGO		110.6 @ 1
	standardelectricsupply.com	2346094	115.7	1	In Stock		Wago	0.1065306	115.7 @ 1
	Newark	58T0625	196.1	1	In Stock		WAGO		196.1 @ 1
