- mpnAOM3558T
- brandname: Baldor
- manufacturername: Baldor

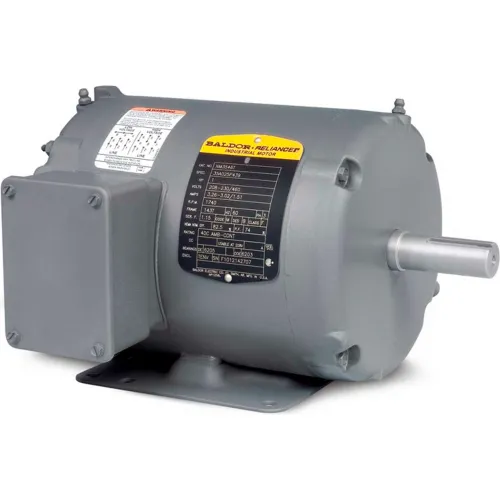

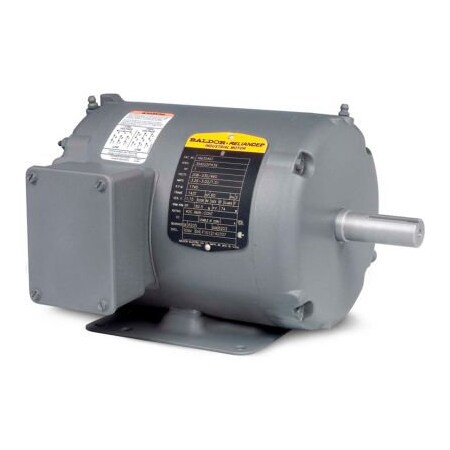

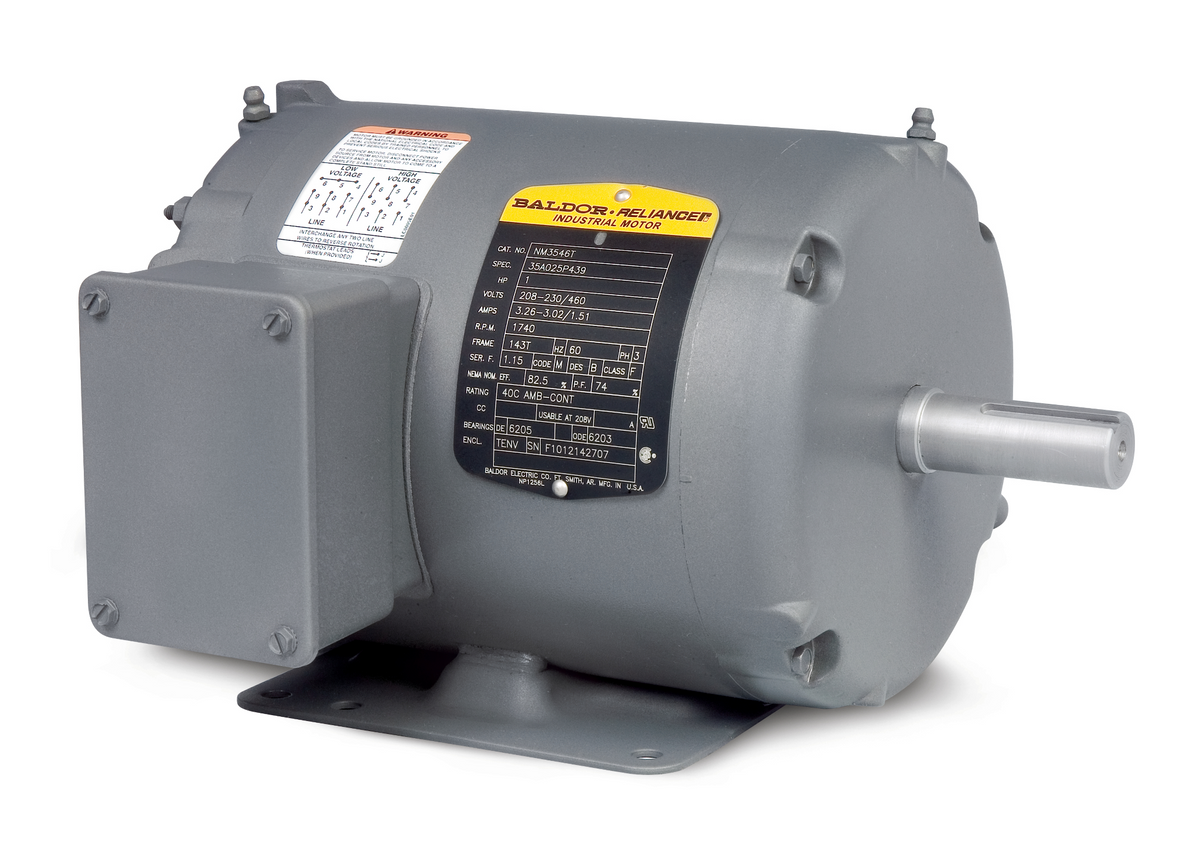

(AOM3558T) 2 Hp 208-230/460 Vac 3 PH. 145T Frame 1800 Rpm TEAO
- Brand: Baldor Electric
- PartNumber: AOM3558T
- PackageQuantity: 1
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 3/6/6.5 |
| Application | HVAC |
| Approvals | CSA, UL |
| Bearings | Ball |
| Construction | Aluminum |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency % | 82.5 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 38.00 |
| Family Series | Baldor Motors, AOM Seri. |
| FL Amps | 6.5-6/3 |
| FL Efficiency | 82.5 |
| Frame | 145T |
| Frame Type | 145T |
| Gross Weight | 38 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| Horsepower Rating | 2 hp |
| HP | 2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | AOM3558T |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 35K695P805G1 |
| Manufacturer Part Number | AOM3558T |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 3 Amp, 6 Amp, 6.500 Amp |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 145T |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 2 hp |
| Motor Insulation Class | Class F Insulation |
| Motor Nema Design | Nema Design L |
| Motor RPM's | 1800 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 145T |
| Net Weight | 43 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 12.12", 12.12 " |
| Part Number | AOM3558T |
| Phase | 3, 3 Phase |
| Product Series | AOM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1735, 1735 R. |
| Series | HV3 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 0.875" |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 1735 |
| Supply Voltage | 208-230/460 VAC |
| UPC Code | 781568121733 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 26250 | 484.95 | 1 | In Stock | | Baldor | | 484.95 @ 1 |
 | emotorpro.com | AOM3558T | 511.32 | 1 | In Stock | | Baldor | 38.0 | 511.32 @ 1 |
| factorysupplyoutlet.com | XY71BI | 564.36 | 1 | In Stock | | Baldor-Reliance | | 564.36 @ 1 |
 | galesburgelectric.com | AOM3558T | 565.77 | 1 | In Stock | | Baldor | | 565.77 @ 1 |
 | Walker Industrial | AOM3558T | 565.77 | 1 | In Stock | | Baldor | | 565.77 @ 1 |
 | Galco | AOM3558T-BLDR | 565.77 | 1 | In Stock | | Baldor | 43.0 | 565.77 @ 1 |
 | Global Industrial | WBB388850 | 569.0 | 1 | In Stock | | Baldor-Reliance | | 569.0 @ 1 |
| motorsandcontrol.com | AOM3558T | 589.34 | 1 | In Stock | | Baldor Reliance | 38.0 | 589.34 @ 1 |
| us.rs-online.com | 71935107 | 653.79 | 1 | In Stock | | Baldor-Reliance | | 653.79 @ 1 |
 | pumpproducts.com | AOM3558T | 669.17 | 1 | In Stock | | Baldor | | 669.17 @ 1 |
| rspsupply.com | BALDOR AOM3558T | 694.36 | 1 | In Stock | | Baldor | | 694.36 @ 1 |
| kirbyrisk.com | 1775818 | 741.84 | 1 | In Stock | | Baldor | | 741.84 @ 1 |
| motionindustries.com | 00545704 | 816.16 | 1 | In Stock | | Baldor-Reliance | | 816.16 @ 1 |
 | Zoro | G605129875 | 954.99 | 1 | In Stock | | Baldor-Reliance | | 954.99 @ 1 |
 | Raptor Supplies | AJ6NVC | 1685.1314025 | 1 | In Stock | | BALDOR MOTOR | | 1685.1314025 @ 1 |
