Baldor-Reliance CDP3580

B08J7NYBB8

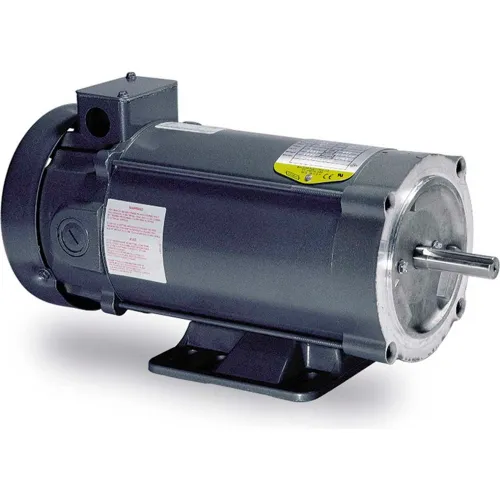

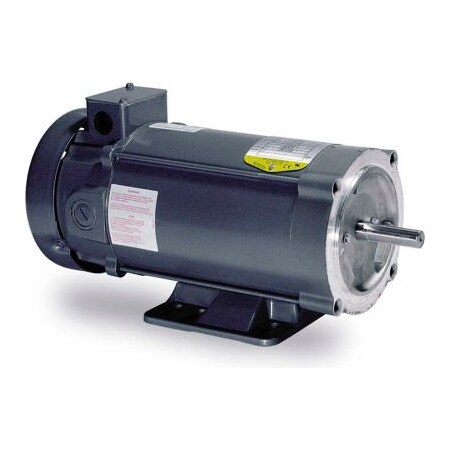

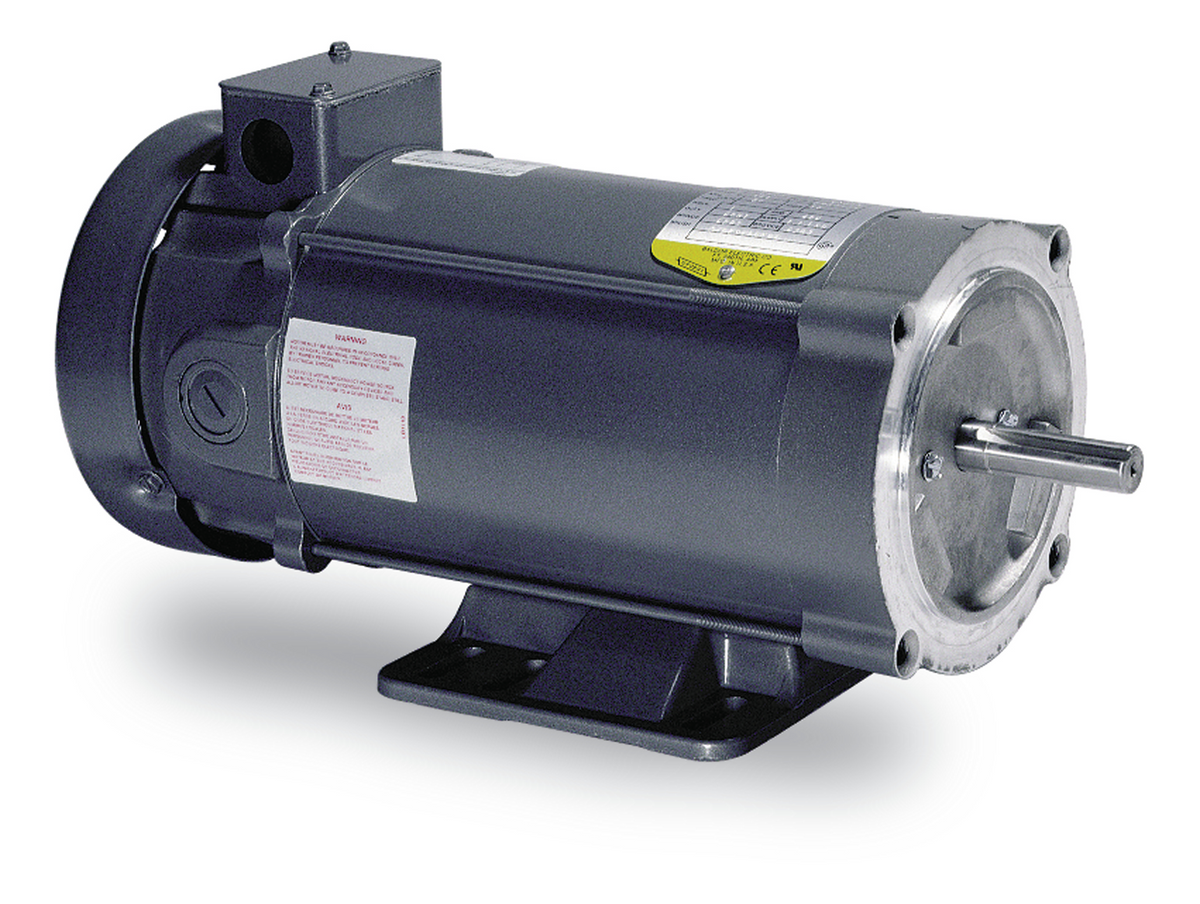

Baldor-Reliance CDP3580 DC Electric Motor - Permanent Magnet, Brushed, 1-1/2 hp hp, 180 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), 145TC Frame

Baldor-Reliance CDP3580 DC Electric Motor - Permanent Magnet, Brushed, 1-1/2 hp hp, 180 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), 145TC Framezoom

Attributes

Key Value
Amps7
ApprovalsCSA, UL
Armature Current7 A, 7
Armature Voltage180 V
Base RPM2,500 RPM
BearingsSealed
Country of Origin (subj.United States
CT Speed Range20:1
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight60.00
Family SeriesBaldor Motors, PERMANEN.
Frame145TC
Gross Weight53 lbs
Horsepower1 1/2 hp
HP1.5, 1-1/2
Insulation ClassF
Item NumberCDP3580
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35P432Z183
Manufacturer Part NumberCDP3580
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeC-Face Removable Base
Net Weight53 lbs
Overall Length14.5"
Part NumberCDP3580
PhaseDC
Product SeriesPERMANENT MAGNET SCR
Product TypeDC, General Purpose
RotationReversible
RPM2500
Service Factor1.00
Shaft Diameter0.875"
Ship Weight60 lbs.
Speed (RPM)2500
Voltage180V
Volts180VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCDP35801408.01In StockBALDOR1408.0 @ 1
AmazonTPB07FN3Q5DW1476.41In Stock3Baldor Electric1476.4 @ 1
AmazonUNKB07FN3Q5DW1476.41In StockBaldor Electric1476.4 @ 1
thumbzoomemotorpro.comCDP35801872.931In StockBaldor60.01872.93 @ 1
factorysupplyoutlet.comLI28FO2051.681In StockBaldor-Reliance2051.68 @ 1
motorsandcontrol.comCDP35802072.391In StockBaldor Reliance60.02072.39 @ 1
thumbzoomWalker IndustrialCDP35802072.41In StockBaldor2072.4 @ 1
thumbzoomGalcoCDP3580-BLDR2072.41In StockBaldor53.02072.4 @ 1
thumbzoomGlobal IndustrialWBB3888172075.01In StockBaldor-Reliance2075.0 @ 1
thumbzoomcbtcompany.comCDP35802225.941In StockBaldor Reliance2225.94 @ 1
us.rs-online.com725125112357.111In StockBaldor-Reliance2357.11 @ 1
thumbzoomapexindustrialautomation.comCDP35802391.2311Baldor-Reliance2391.23 @ 1
thumbzoompumpproducts.comCDP35802451.171In StockBaldor2451.17 @ 1
motionindustries.com005344842570.451In StockBaldor-Reliance2570.45 @ 1
kirbyrisk.com29309232717.311In StockBaldor2717.31 @ 1
thumbzoomZoroG7051739524566.591In StockBaldor-Reliance4566.59 @ 1
thumbzoomRaptor SuppliesAJ6PCC6172.52073751In StockBALDOR MOTOR6172.5207375 @ 1
