CLEVELAND C40827

mpnC40827
brandname: Cleveland
manufacturername: Cleveland

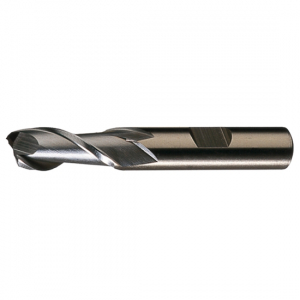

CLEVELAND Sq. End Mill,Single End,Pow Met,3/16" C40827

CLEVELAND Sq. End Mill,Single End,Pow Met,3/16" C40827

zoom

Brand: CLEVELAND
PartNumber: C40827
Model: C40827
PackageQuantity: 1
Binding: Misc.
Manufacturer: CLEVELAND
Label: CLEVELAND

Attributes

Key	Value
Catalog Page	N/A
Center Cutting:	Yes
Construction:	High Performance Finish.
Corner Radius	0.000 in
Country of Origin	USA
Cutter Diameter	3/16 in
Cutting Direction	Right Hand
Decimal Equivalent:	0.1875"/4.76mm
Diameter Fractional:	3/16"
Dimension Type	Fractional Inch
Double Ended:	No
Drilling Tool Configura.	Individual
End Mill Application	Finishing
End Mill Cutting Type	Center Cutting
End Mill Material	Powdered Metal
End Mill Style	Square
End Style:	Square
Finish	TiCN Coated, TiCN
Finish - Machining	TiCN
Flute Type	Spiral
Grade	Heavy Duty
Hand of Spiral Cut:	RHS/RHC
Hardened (H) Compatibil.	No
Helix Angle	37 deg, 37 Degrees, 37.
Item	Square End Mill
Item?	438L95
Length of Cut	1/2 in
Length of Cut:	0.5000"/ 12.70mm
List Number	PM-2-TC
List Style:	PM-2
Material	PM HSS-E
Material - Machining	Powdered Metal
Material Grade - Machin.	Heavy Duty
Material:	Powdered Metal
Measurement System	Fractional Inch
Mfr. Model?	C40827
Milling Dia.	3/16 in
Milling Diameter	3/16"
Neck Dia.	Not Applicable
Neck Length	Not Applicable
Non Ferrous (N) Compati.	Yes
Number of Flutes	2
Number of Flutes:	2
Overall Length	2-3/8 in, 2 3/8 in
Overall Length:	2.3750" /60.32mm
Primary Material Applic.	All Materials
Primary Material Applic.	H; K; M; N; P; S
Series	PM-2
Shank Dia.	3/8 in
Shank Diameter	3/8 in
Shank Diameter:	0.3750"/9.52mm
Shank Type	Straight/Weldon Flat, W.
Shank Type - Machining	Weldon Flat
Shank:	Straight w/ Weldon Flats
Single End/Double End	Single End
Steel (P) Compatibility	Yes
Surface Condition:	TiCN
Type	Center Cutting Single E.
UNSPSC	27112803

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6116577	29.62	2	In Stock		Cleveland		29.62 @ 2
	usmegastore.com	C40827	32.64	1	In Stock		Cleveland		32.64 @ 1
	Zoro	G2975292	38.99	1	1		Cleveland	0.06	38.99 @ 1
	Grainger	438L95	49.91	1	In Stock		CLEVELAND		49.91 @ 1
	sustainablesupply.com	C2769898	50.29	1	In Stock		Cleveland	0.06	50.29 @ 1
