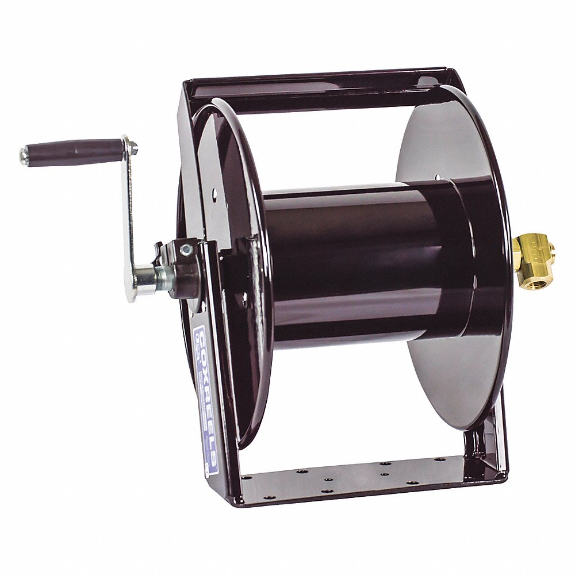

COXREELS SM17-4-125

B002UZ817C

Coxreels Swivel Mount Hand Crank Hose Reel | Manual Air Hose Reel | Adjustable Tension Brake | Air Hose Wheel | Retractable Hose Reel | Air Hose Reel Without Hose | 1/2" x 125' | SM17-4-125

Coxreels Swivel Mount Hand Crank Hose Reel | Manual Air Hose Reel | Adjustable Tension Brake | Air Hose Wheel | Retractable Hose Reel | Air Hose Reel Without Hose | 1/2" x 125zoom

Attributes

Key Value
Base (X) x (Y)10.25" (X) x 4" (Y)
Base Motion TypeStationary
Bearing ConstructionEPDM
BrandCoxreels
ColorBlack
Compatability125 ft 1/2 In.
Drive TypeHand Crank
Duty RatingMedium Duty
EnclosedNo
Fasteners IncludedNo
FeaturesAdjustable Tension Brak.
FinishPowder Coated
For Dual HoseNo
Ft125'
Handle Length3 1/2 in
HoseYes
Hose Capacity125 ft (1/2 in ID)
Hose IncludedNo
Hose Inside Dia.1/2 in
Hose Length125 ft
Hose Outlet1/2 in (M)NPT
Hose Outside Dia.7/8 in
Hose Reel Primary Appli.Air, Chemical Fluid Tra.
Hose Reel TypeWall Mount Hose Reel
I.D1/2"
I.D.1/2"
Includes GooseneckNo
Includes HoseNo
Includes Leader HoseNo
ItemHand Crank Hose Reel
Length125'
Max Psi4,000 Psi
Max PSI4000
Max Temperature225 Degrees F
Maximum Operating Press.4,000 Psi
Maximum Operating Tempe.225 Degrees F
Minimum Operating Tempe.-40 Degrees F
Mount Base Height4 in
Mount Base Width10 1/4 in
Mount Hole Diameter1/2 in
Mounting Hole Center to.3 in
Mounting LocationFloor, Truck, Wall
Mounting Pattern (M) x .7" (M) x 3" (N)
Number of Mount Holes8
O.D7/8"
O.D.7/8"
Overall Dimensions17 in L x 19 in W x 18 .
Overall Height18 1/2 in
Overall Length17 in
Overall Width19 in
Pressure4000
Product Dimensions (In.)17 x 19 x 18.5 In.
Psi17
Reel ColourBlack
Reel Diameter5 1/2 in
Reel FinishPowder Coated
Reel Inlet1/2 in (F)NPT
Reel MaterialSteel
Reel SeriesHand Crank
Reel Width8 in
Seal MaterialFKM
Seal TypeViton
Ship Weight (Lbs)19
Shipping Weight (lbs)19 lbs
SkuSM17-4-125
SKUSM17-4-125
StandardsCE
Swivel Inlet GenderFemale
Swivel Inlet Size1/2 in
Swivel Inlet Thread Size1/2 in
Swivel Inlet TypeNPT
Swivel MaterialBrass
Swivel Outlet GenderFemale
Swivel Outlet Size1/2 in
Swivel Outlet Thread Si.1/2 in
Swivel Outlet TypeNPT
Weight19 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialB584638182.951In StockCoxreels182.95 @ 1
thumbzoomFactory Authorized OutletCXS-SM17-4-125199.991In StockCoxreels19.0199.99 @ 1
AmazonTPB00BR32DEA224.621In Stock3Coxreels224.62 @ 1
AmazonUNKB00BR32DEA224.621In StockCoxreels224.62 @ 1
thumbzoomwylaco.comSM17-4-125235.921In Stock28COXREELS235.92 @ 1
thumbzoomMRO Supply2517420263.011In StockCoxReels263.01 @ 1
thumbzoomZoroG4860003275.99126Coxreels23.67275.99 @ 1
thumbzoomintlairtool.comSM17-4-125285.01In StockCoxreels19.0285.0 @ 1
thumbzoomprimebuy.comSM17-4-125286.11In StockCoxReels19.0286.1 @ 1
imsbolt.comSM17-4-125294.251In StockCOXREELS294.25 @ 1
thumbzoomshopetsonline.comSM174125305.01In StockCox Reels305.0 @ 1
thumbzoomNational Supply Network48706758318.841In StockCoxReels318.84 @ 1
factorysupplyoutlet.com170-SM17-4-125338.961In StockCoxreels338.96 @ 1
thumbzoombscsource.comSM174125362.891In StockCoxreels362.89 @ 1
grainger.caCXRSM17-4-125422.194092141In StockCOXREELS26.0422.19409214 @ 1
thumbzoomRaptor SuppliesAA8AQK433.7329231In StockCOXREELS433.732923 @ 1
