Nichicon LGU2G331MELC

mpnLGU2G331MELC
brandname: Nichicon
manufacturername: Nichicon

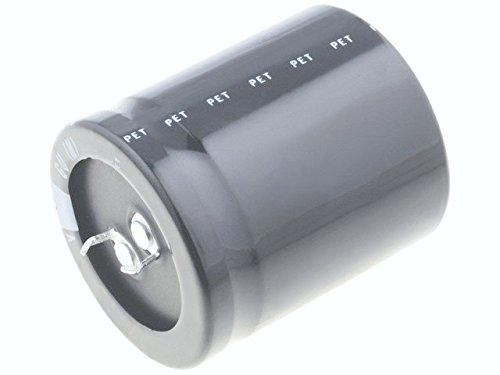

Nichicon Aluminum Electrolytic Capacitor 330Uf, 400V, 20%, Snap-in - LGU2G331MELC

Nichicon Aluminum Electrolytic Capacitor 330Uf, 400V, 20%, Snap-in - LGU2G331MELC

zoom

Brand: Nichicon
PartNumber: LGU2G331MELC
Model: LGU2G331MELC
PackageQuantity: 1
Manufacturer: Nichicon
Label: Nichicon

Attributes

Key	Value
Applications	General Purpose
Capacitance	330 uf, 330 ?F
capacitance	330 uf
Capacitance Range	100 to 999 uF
Case Size	Dia. 1.378 x L 1.181 in.
Category	Capacitors
Configuration	Radial ; Can
Element Material	Aluminum Electrolytic
ESR (Equivalent Series .	-
Height - Seated (Max)	1.181" (30.00mm)
item per pack	1
Lead Spacing	0.394 In. (10.00 mm), 0.
lead style	-
lead type	snap in
Lifetime @ Temp.	3000 Hrs @ 105?C
Mfr	Nichicon
Minimum Operating Tempe.	-25 C
Mounting Type	Through Hole, PCB Mount
Operating Temperature	-25?C ~ 105?C
Package	bulk
package	bulk
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Product Status	Active
Ratings	-
Ripple Current @ High F.	2.0592 A @ 50 kHz
Ripple Current @ Low Fr.	1.44 A @ 120 Hz
Series	LGU Series, LGU
Size / Dimension	1.378" Dia (35.00mm)
Surface Mount Land Size	-
temperature	105
Termination	Snap-In
Tolerance	?20%, 20% %
tolerance	20%
voltage	400 vdc
Voltage - Rated	400 V
Voltage Rating	400 vdc

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70188180	4.0	200	6		Nichicon		4.0 @ 200
	Tedss	2020062845	4.99	3	6		NICHICON		4.99 @ 6
	Hotenda	H243509	5.18	1	6		Nichicon		5.18 @ 6
	Newark	54K6032	5.41	1	641		NICHICON		5.41 @ 6
	Digi-Key	1004467	6.98	1	513		Nichicon		6.98 @ 6
	RS Delivers	519-3725	11.076	1	86		Nichicon		11.076 @ 6
