NTN SUCTBL207-20C0FG1

B09QBH4RJK

SUCTBL207-20C0FG1 - NTN - Corrosion Resistant - Factory New

SUCTBL207-20C0FG1 - NTN - Corrosion Resistant - Factory Newzoom

Attributes

Key Value
Base Height0.73 in
Bearing Housing Materia.PBT
Bearing Insert Material440C Stainless Steel
Bearing Insert TypeBall
Bolt Hole Center-to-Cen.3 1/4 in
Bolt Size1/2"-13 UNC
Bore Dia.1 1/4 in
Bore Diameter1 1/4 in
Center Height1 55/64 in
Dynamic Load Capacity4,520 lb
FinishUnfinished

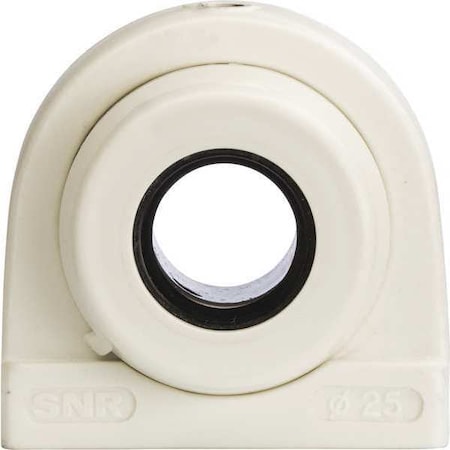

ItemPillow Block Bearing
Mount Hole Center-to-Ce.3.25 in
Mounting Bolt Size1/2"-13
Mounting Surface to Sha.1 7/8 in
Number of Bolts2
Overall Height3 3/4 in
Overall Length4 5/16 in
Overall Width3 1/2 in
SeriesTBL-FG1
Shaft Locking TypeSet Screws
StandardsNSF H1 Registered
Static Load Capacity3,510 lb
Temp. Range14 Degrees to 212 Degr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0611742322.991In Stock15Ntn1.69322.99 @ 1
motionindustries.com07167809411.051In StockNTN411.05 @ 1
