TE Connectivity 5646346-1

B00DK85Y46

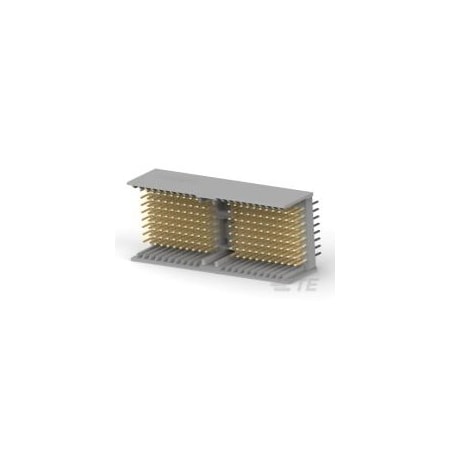

TE CONNECTIVITY 5646346-1 HARD METRIC CONNECTOR, HEADER, 176POS (1 piece)

TE CONNECTIVITY 5646346-1 HARD METRIC CONNECTOR, HEADER, 176POS (1 piece)zoom

Attributes

Key Value
AdvancedTCA Specified P.No
Alternate Mfr Part Numb.5646346-1
Alternate Part No.571-5646346-1
Backplane ArchitectureMezzanine
Base Product Number5646346
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2?mm?[?.078?in?]
Circuit ApplicationSignal
CompactPCI DesignationNone
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StylePlug, D 22
Connector SystemBoard-to-Board
Connector TypeHeader, Male Pins, Conn.
Connector UsageBackplane
Contact Base MaterialPhosphor Bronze
Contact ConfigurationACTION PIN,Signal
Contact Current Rating .1.5
Contact Finish-
Contact Finish Thickness-
Contact Mating Area Pla.Performance Based
Contact Mating Area Pla..76??m?[?30??in?]
Contact PlatingGold
Contact TypePin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1.5 A
Data Rate1 Gbps, ?1
FeaturesBoard Guide
Housing ColorGray
Housing MaterialPolyester - GF
ManufacturerTE Connectivity
Manufacturer Part No.5646346-1
Mating Alignment TypeMulti-Purpose Center
MfrTE Connectivity AMP Con.
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Columns25
Number of Contacts176
Number of Positions176
Number of Positions Loa.All
Number of Rows8
Number of Signal Positi.176
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageTube
PackagingTube
Packaging MethodTube
Packaging Quantity10
PCB Connector Assembly .PCB Mount Header
PCB Mount OrientationVertical
Pitch0.079" (2.00mm), 2 mm, .
Primary TypeHard Metric
Product CategoryHard Metric Connectors
Product StatusActive
Product TypeHeaders
Rows LoadedA, B, C, D, E, F, G, H
SealableNo
SeriesZ-Pack HM, Z-Pack
TerminationPress-Fit
TradenameZ-Pack
TypePlug
UL Flammability RatingUL 94V-0
Voltage Rating750Vrms
