TE Connectivity 5-104652-5

B07CBLXR4Y

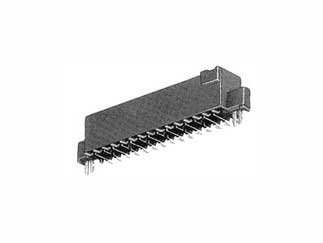

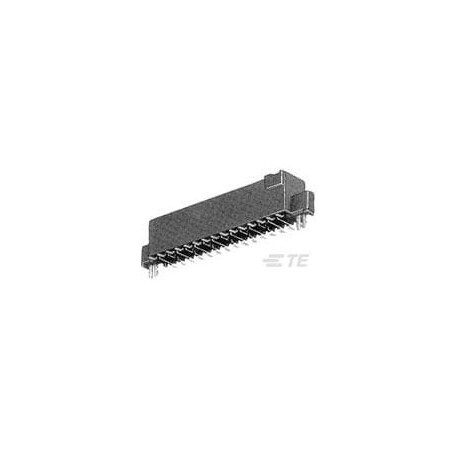

TE CONNECTIVITY 5-104652-5 AMPMODU 50 Position SMT Dual Row Vertical .050 x.050 Board to Board Receptacle - 14 Item(s)

TE CONNECTIVITY 5-104652-5 AMPMODU 50 Position SMT Dual Row Vertical .050 x.050 Board to Board Receptacle - 14 Item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5-104652-5
Alternate Part No.571-5-104652-5
Applications-
Base Product Number104652
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector StyleReceptacle
Connector TypeConnector Assembly, Rec.
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Post-
Contact MaterialCopper Alloy
Contact PlatingGold
Contact ShapeSquare
Contact TypeSocket, Female Socket
Country of Origin (subj.Mexico
Current Rating1 A to 4 A
Current Rating (Amps)-
DescriptionCONN RCPT 50POS 0.05 GO.
Detailed Description50 Position Receptacle .
Digi-Key Part NumberA33548-ND
Family NameAMPMODU Interconnect Sy.
Fastening TypePush-Pull
FeaturesBoard Lock
For Use WithReceptacle Assembly
Height4.75 mm[.187 in]
Housing ColorBlack
Housing MaterialThermoplastic, LCP
Ingress Protection-
Insulation ColorBlack
Insulation Height0.187" (4.75mm)
Insulation MaterialLiquid Crystal Polymer .
Insulation Resistance5000 MegaOhms
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-104652-5
Manufacturer Product Nu.5-104652-5
Manufacturer Standard L.18 Weeks
Mated Stacking Heights6.35mm, 8.13mm, 9.91mm
Material Flammability R.-
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeSurface Mount
Number of Positions50
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
PackageTube
Pitch1.27 mm (0.050"), 1.27 .
Pitch - Mating0.050" (1.27mm)
Primary TypeBoard Mount
Product CategoryBoard to Board & Mezzan.
Product StatusActive
Product TypeConnector, Receptacles
Row Spacing - Mating0.050" (1.27mm)
Row to Row Spacing1.27 mm[.05 in]
SeriesAMPMODU 50/50 Grid Seri.
StyleBoard to Board or Cable
Temperature Operating R.-65 ? 105 ?C
TerminationSolder, Surface Mount
Termination StyleSMD
TradenameAMPMODU
TypeReceptacle
Voltage Rating30 V, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-104652-55.341462891TE CONNECTIVITY/AMP BRAND5.34 @ 14
Future Electronics14488105.6281456TE Connectivity5.628 @ 14
Arrow5-104652-57.3471939TE Connectivity7.347 @ 14
thumbzoomZoroG8010431117.72169414Te Connectivity7.72 @ 1694
us.rs-online.com700873867.92169414TE Connectivity7.92 @ 1694
thumbzoomDigi-Key11214157.977142857141462891TE Connectivity AMP Connectors7.97714285714 @ 14
Onlinecomponents.com5-104652-58.711015TE Connectivity / AMP Brand8.7 @ 14
thumbzoomNewark52K44409.171414AMP - TE CONNECTIVITY9.17 @ 14
thumbzoomswatee.com5-104652-516.08194TE Connectivity16.08 @ 14
AmazonTPB07KW8PW1T62.281141TE Connectivity / AMP Brand62.28 @ 14
AmazonSCB07CBLXR4Y155.55114TE Connectivity155.55 @ 14
