- mpnC15652
- brandname: CLEVELAND
- manufacturername: CLEVELAND

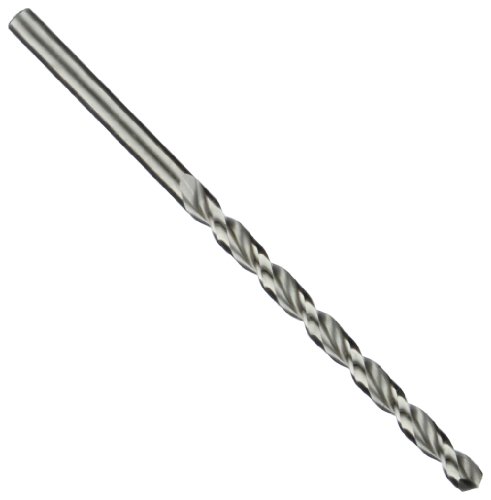

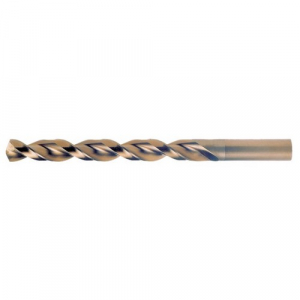

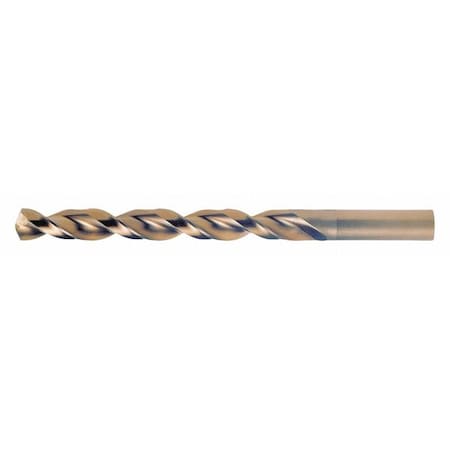

Cleveland 2075 Cobalt Steel Jobbers' Length Drill Bit, Gold Oxide Finish, Round Shank, 135 Degree Notch Point, C (Pack of 10)
- Brand: CLEVELAND
- PartNumber: C15652
- Model: C15652
- Size: C
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Bit Dia. | C |
| Catalog Page | N/A |
| Construction | Wide Land Parabolic |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 2-3/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2420" / 6.15mm, 0.2420 |
| Depth x Dia. Ratio | 10xD |
| Depth:Dia. Ratio | 10xD |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | C |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.242 in |
| Drill Size - Letter | C |
| Drilling Length | 2-3/4" |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2-3/4 in, 2 3/4 in |
| Flute Type | Parabolic, Right Spiral. |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 35? to 45? |
| Item | Jobber Length Drill Bit |
| Item? | 435A36 |
| Length of Flute | 2.7500" / 69.85mm |
| List Style: | 2075 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 1-59/64 in, 2 1/16 in |
| Measurement System | Letter |
| Mfr. Model? | C15652 |
| Number of Flutes | 2 |
| Overall Length | 4 in, 4.0000" / 101.60mm |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Series | 2075 |
| Shank | Straight |
| Shank Dia. | 15/64 in |
| Shank Diameter | 15/64 in |
| Shank Length | 1-1/4 in, 1 1/4 in |
| Shank Size | 0.2420" / 6.15mm, 0.242. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 2075 |
| Surface Condition | Straw, Straw / Gold Oxi. |
| Through Coolant (Yes/No) | No |
| Tool Size | C |
| Type | High Performance |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111423 | 11.02 | 4 | 10 | | Cleveland | | 11.02 @ 10 |
 | Megadepot | C15652 | 11.56 | 1 | 10 | | Cleveland | | 11.56 @ 10 |
 | usmegastore.com | C15652 | 13.32 | 1 | 10 | | Cleveland | | 13.32 @ 10 |
 | Zoro | G3063687 | 14.0 | 10 | 10 | 8 | Cleveland | 0.04 | 14.0 @ 10 |
 | sustainablesupply.com | C2767810 | 15.53 | 1 | 10 | | Cleveland | 0.04 | 15.53 @ 10 |
| Grainger | 435A36 | 18.63 | 1 | 10 | | CLEVELAND | | 18.63 @ 10 |
