Dayton 4Z300

mpn4Z300
brandname: DAYTON
manufacturername: DAYTON

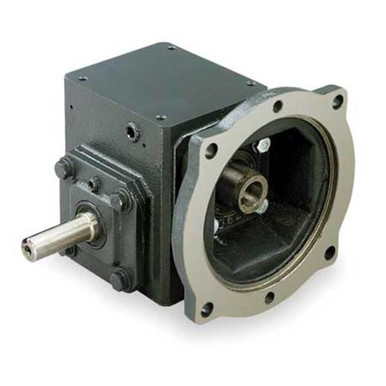

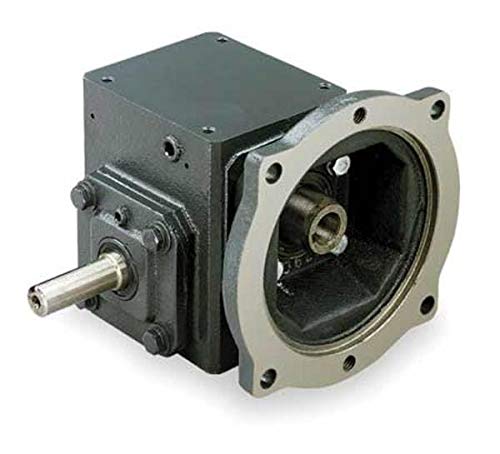

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 875 lb. Overhung Load 4Z300-1 Each

Dayton Standard Cast Iron C-Face Speed Reducer, Single Output, 875 lb. Overhung Load 4Z300-1 Each

zoom

Brand: Dayton
PartNumber: 4Z300
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton Electric Manufacturing Co.
Label: Dayton Electric Manufacturing Co.

Attributes

Key	Value
ASIN	B000LDIXBY
Batteries Required?	No
Bearings	Ball
Bore Dia.	5/8"
Brand	Dayton
Current Stock	47
Dimension U	1 in
Duty	Standard
Finish	Powdered Epoxy Paint
Frame	56C
Gear Material	Hardened and Ground Ste.
Gear Type	Worm
Housing Material	Cast Iron
Input RPM	1750 RPM, 1750
Input Shaft Diameter	5/8 in
International Shipping	No
Item	Speed Reducer
Item model number	4Z300
Item Package Quantity	1
Lead Time	Expected to ship in 1-2.
Lubrication	Klubersynth UH1 6-460, .
Manufacturer	Dayton
Max. Input HP	0.5 hp, 0.5, 1/2
Max. Output Torque	636 in.-lb.
Max. Torque (In.-Lbs.)	636
Mounting	Any Position Except Inp.
Mpn	4Z300
NEMA/IEC Frame	56C
Nominal Output RPM	29, 29 RPM
Nominal Ratio	60:1
Number of Stages	1
Oil Seal	Double Lip
Output Shaft Dia.	1 in
Output Shaft Dia. (In.)	1-1/8
Output Shaft Diameter	1 in
Output Torque @ 1/2 HP	636 in-lbs
Output Torque @ 1/2 HP .	636
Output Torque @ 1/3 HP	423 in-lbs
Output Torque @ 1/3 HP .	423
Output Torque @ 1/4 HP	305 in-lb
Output Torque @ 1/4 HP .	305
Output Torque @ 1/40 HP	3,600 in-lbs
Output Torque @ 3/4 HP	636 in-lbs
Overhung Load	875 lb, 875 lb.
Overhung Load (Lb.)	875
Part Number	4Z300
Pinion Material	Hardened Steel
Prop 65	WARNING: Cancer and Rep.
Reducer Model No.	83971
Rotation	Forward/Reverse
Seal Type	Double Lip
Shaft Assembly	Left
Shaft Orientation	Right Angle
Ship Weight	28 lbs.
Single/Double Output/Un.	Single Output
SKU	ZO-G2801854
Solid/Hollow Output Sha.	Solid
Speed Reducer Type	C-Face
Standards	AGMA
SubCategory	Power Transmission
Type	C-Face
UNSPSC Code	40000000
UPC	190735340332
Worm Center Distance	2.06 in, 2.06"
Worm Gear Material	Bronze

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	NRI Industrial	D540245	470.37	1	In Stock		DAYTON		470.37 @ 1
	grainger.ca	DTN4Z300	546.77869204	1	In Stock		DAYTON	27.8	546.77869204 @ 1
	Amazon	B000LDIXBY	752.36	1	In Stock		Dayton		752.36 @ 1
	AmazonTP	B000LDIXBY	755.1	1	In Stock	3	Dayton		755.1 @ 1
	sustainablesupply.com	C2777271	794.94	1	In Stock		Dayton	27.8	794.94 @ 1
	Zoro	G2801854	911.99	1	74		Dayton	27.8	911.99 @ 1
	emotorpro.com	4Z300	1086.76	1	In Stock		Dayton	28.0	1086.76 @ 1
	simsupply.com	ZO-G2801854	1100.6	1	47		Dayton		1100.6 @ 1
	Raptor Supplies	AE2QUX	1498.9138515	1	In Stock		DAYTON		1498.9138515 @ 1
