Jet GH-1880ZX LATHE W/AC DRO 2 AXIS

mpn321487
brandname: JET
manufacturername: JET

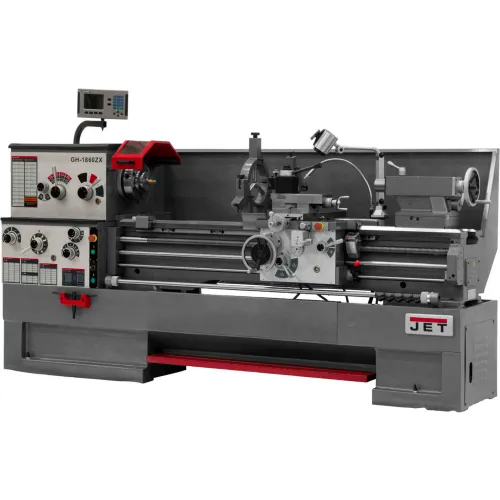

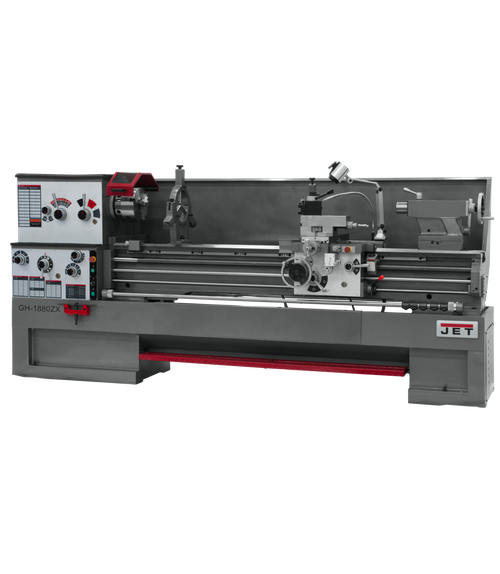

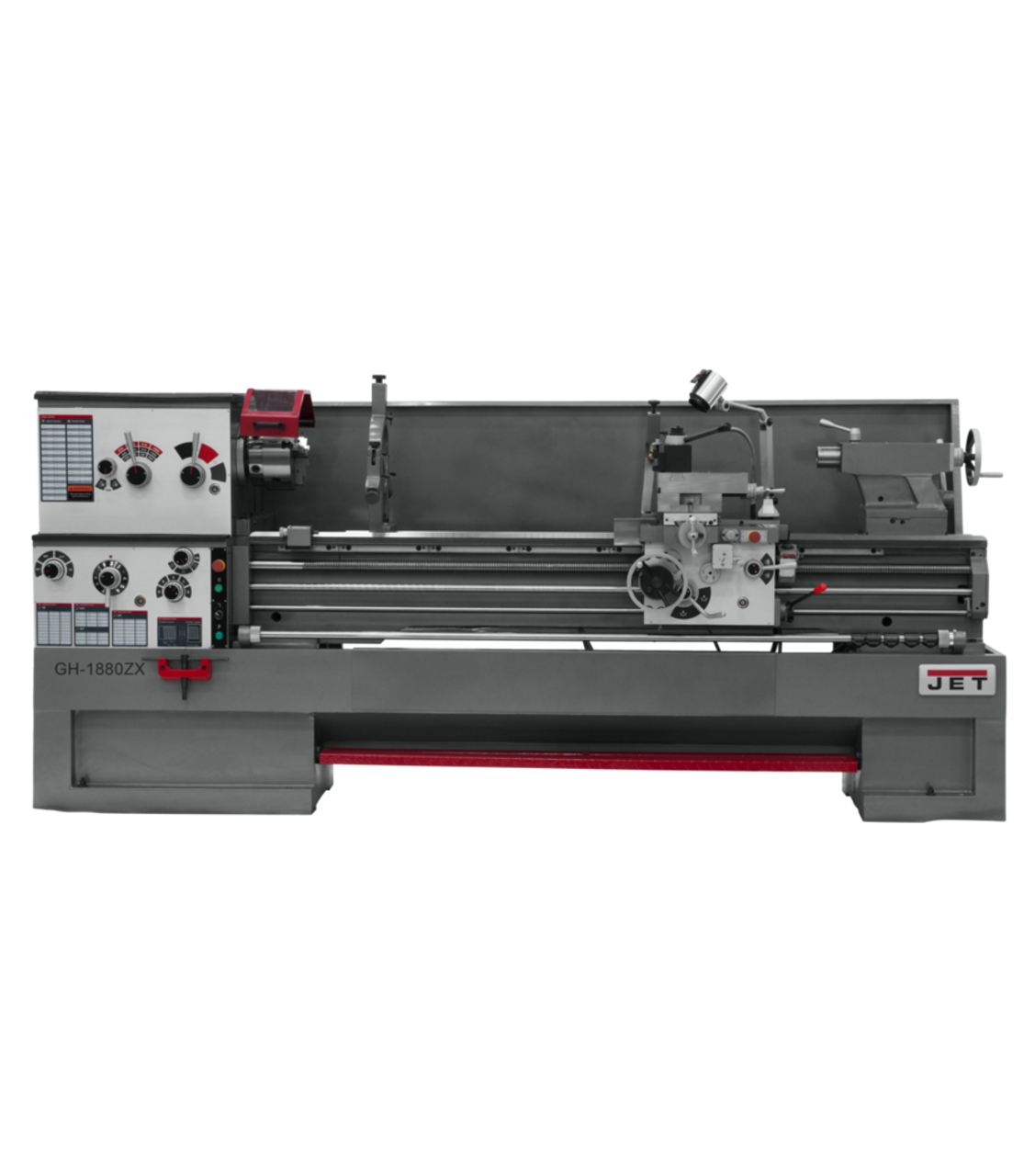

JET GH-1880ZX With ACU-RITE 203 DRO (321487)

Brand: Jet
PartNumber: GH-1880ZX LATHE W/AC DRO 2 AXIS
Model: 321487
Color: Gray
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: JET
Label: JET

Attributes

Key	Value
Bed Width	13 1/8 in
Carriage Travel (In.)	74-5/16 </td
Compound Slide Travel (.	5-1/8 </td
Country of Origin (subj.	China
Cross Slide Travel (In.)	9 </td
Digital Readout	ACU-RITE 200S </td
Distance Between Centers	80 in
Distance Between Center.	80 </td
Drive	Geared Head </td
Features	Corner Radius Precision.
Finish - Machining	Chrome
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Gap Length	12 in
Horsepower	7-1/2 HP
Includes	10 in 3-jaw scroll chuc.
Item	Lathe
Length of Gap (In.)	12 </td
Machine Type	Engine lathe
Max Tool Size (In.)	1 x 1 </td
Max. Cross Feed	0.0360 IPR
Max. Metric Thread	20.00mm
Max. Spindle Speed	1800 RPM
Min. Cross Feed	0.0006 IPR
Min. Metric Thread	0.05mm
Min. Spindle Speed	25 RPM
Min. Threads per Inch	1-5/8
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Number of Inch Threads	61, 61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24, 24 </td
Number of Spindle Speeds	12 </td, 12
Overall Dimensions (L x.	136 x 44 x 66 </td
Overall Length	5-1/2 in
Phase	3
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	18 x 80 </td
SKU	321487
Spindle Bore	3 1/8 in
Spindle Bore (In.)	3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Taper with Slee.	MT-7 (MT-5) </td
Steady Rest Capacity (I.	3/8 - 7-3/4 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed	18 in
Swing Over Bed (In.)	18 </td
Swing Over Cross Slide	11 in
Swing Over Cross Slide .	11 </td
Swing Through Gap (In.)	27-1/2 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	5 in
Taper in Tailstock Spin.	MT-5 </td
Voltage	230/460V
Weight (Lbs.)	6,590 </td
Width of Bed (In.)	13-1/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G1940053	29499.0	1	In Stock	10	Jet	7100.0	29499.0 @ 1
internationaltool.com	JET-321487	34479.0	1	In Stock		Jet		34479.0 @ 1
Global Industrial	WBB0230754	37599.0	1	In Stock	24	JET		37599.0 @ 1
JB Tools	JB-DS-WLT-321487	37599.0	1	In Stock		Jet		37599.0 @ 1
elitemetaltools.com	2312	37599.0	1	In Stock		JET		37599.0 @ 1
ToolUp.com	JET 321487	37599.0	1	In Stock		Jet		37599.0 @ 1
AceTool	JET-321487	37599.0	1	In Stock		Jet	6590.0	37599.0 @ 1
toolsplus.com	JET321487	37599.0	1	In Stock		JET		37599.0 @ 1
imsbolt.com	321487	37599.0	1	In Stock		JET		37599.0 @ 1
