B07DC4SS9Z

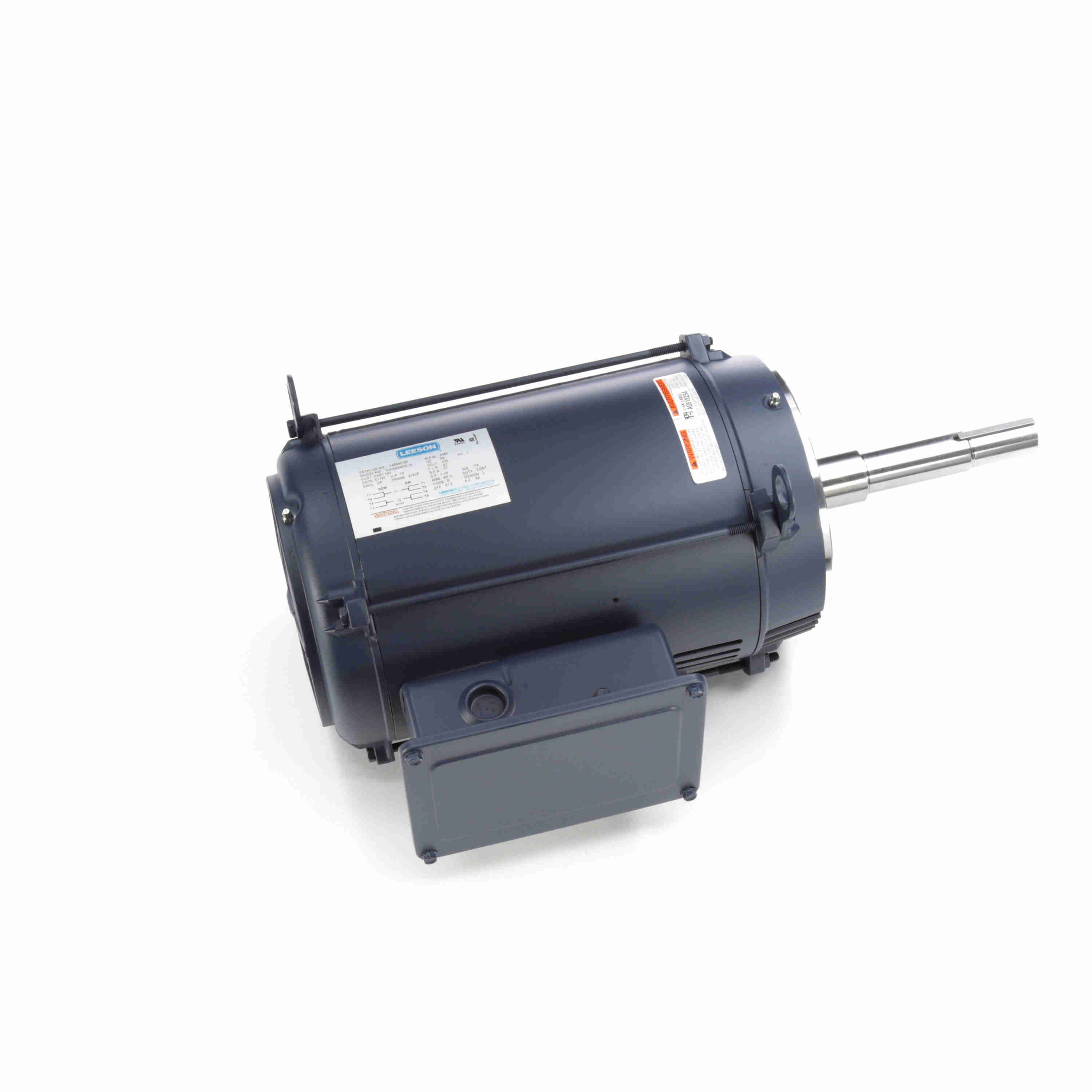

Leeson Electric 140647.00 - Closed Coupled Pump - 1 ph, 10 hp, 3600 rpm, 230 V, 215JP Frame, Drip Proof Enclosure, 60 Hz

Leeson Electric 140647.00 - Closed Coupled Pump - 1 ph, 10 hp, 3600 rpm, 230 V, 215JP Frame, Drip Proof Enclosure, 60 Hzzoom

Attributes

Key Value
Amperage Rating47 A
Application TypeJet Pump (JM/JP) Motors
ApprovalsCSA, UL
Bearing TypeBall, 15.67
Class/GroupC215K34DK1
CompositionSteel
Country of Origin (subj.Mexico
Description:OBSOLETE REPLACED BY 21.
Dimensions23.79 in L x 12.78 in W.
EnclosureDrip Proof
Enclosure TypeDP
Family SeriesLeeson Motors, Pump Dut.
Frame215JP
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower10 hp
Insulation ClassClass F
Item Number140647.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number140647.00
MaterialRolled Steel
MFG Part #:140647.00
Model NumberC215K34DK1
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame215JP
Net Weight138 lbs
Nominal Voltage240 VAC
Number of Poles2
Number of Speeds1
Overall Length15.67 "
Phase1, 1 ph
Product SeriesPump Duty
RotationSelective CCW
RPM3,600 RPM
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size1.25 in Dia x 8.09 in L
Special FeaturesCapacitor Start Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720154731

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2526556830.731In Stock9Leeson138.0830.73 @ 1
thumbzoomelectricmotorwholesale.com140647834.01In StockLEESON834.0 @ 1
thumbzoomZoroG24937021378.711In Stock10Leeson1378.71 @ 1
thumbzoomRaptor SuppliesAJ2RZP1649.6108461In StockLEESON1649.610846 @ 1
thumbzoomGalco140647.00-LEES1853.421In StockLeeson138.01853.42 @ 1
AmazonTPB00EP32J021932.231In Stock10Leeson1932.23 @ 1
kscdirect.comLEE 140647.002088.141In StockLEESON ELECTRIC CORPORATION2088.14 @ 1
thumbzoomWalker Industrial140647-002163.471In Stock10Leeson2163.47 @ 1
