Panduit LCAX3/0-12H-X

B00B5O5LDG

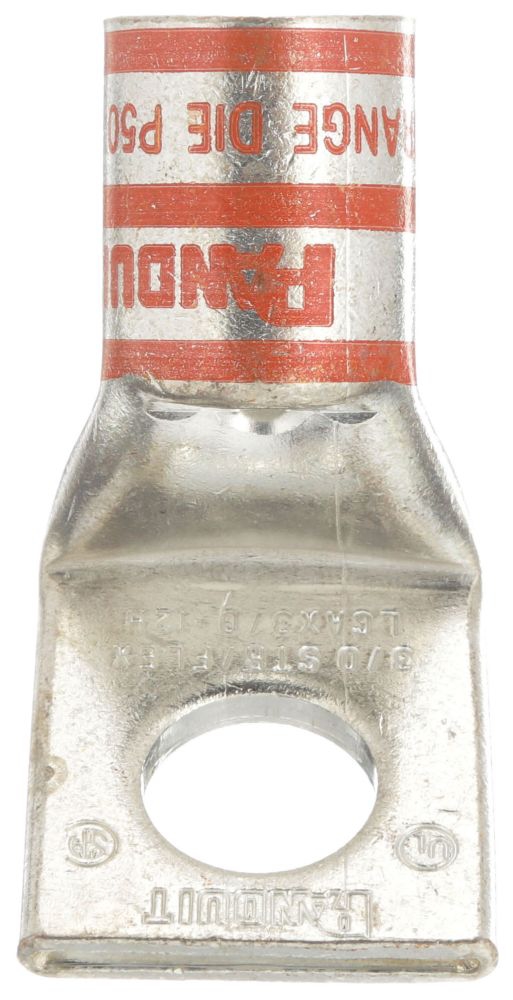

Panduit LCAX3/0-12H-X Flex Conductor Lug, One Hole, Standard Barrel With Window, 45 Degree Angle, 3/0 AWG Code Conductor Size, 3/0 AWG Diesel Locomotive Size, 3/0 AWG Class G/H/I/K/M Conductor Size, 1/2" Stud Hole Size, Orange Color Code, 1" Wire Strip Length, 0.14" Tongue Thickness, 1.06" Tongue Width, 0.91" Neck Length, 2.08" Overall Length

Panduit LCAX3/0-12H-X Flex Conductor Lug, One Hole, Standard Barrel With Window, 45 Degree Angle, 3/0 AWG Code Conductor Size, 3/0 AWG Diesel Locomotive Size, 3/0 AWG Class G/H/I/K/M Conductor Size, 1/2" Stud Hole Size, Orange Color Code, 1" Wire Strip Length, 0.14" Tongue Thickness, 1.06" Tongue Width, 0.91" Neck Length, 2.08" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range3/0
Angle45?
ApprovalsCSA, UL
Base Product NumberLCAX
Cable Size3/0 AWG
CategoryConnectors, Interconnec.
ColorOrange
Color CodeOrange
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeStandard Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 3/0.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.570" (14.48mm)
Diameter - Barrel OD0.710" (18.03mm)
Diameter - Ring ID0.530" (13.46mm)
Digi-Key Part Number298-21964-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.12 lbs
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLCAX3/0-12H-X
Length2.08"
Length - Overall-
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCAX3/0-12H-X
Manufacturer Product Nu.LCAX3/0-12H-X
Manufacturer Standard L.2 Weeks
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range3/0 AWG
MfrPanduit Corp
Min Conductor Range3/0 AWG
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes1
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
Stud Size1/2 in
Stud/Tab Size1/2 Stud
Tab Thickness0.140" (3.56mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width1.06"
Width - Outer Edges1.060" (26.92mm)
Wire Gauge3/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAX3/0-12H-X7.851In StockPANDUIT7.85 @ 1
thumbzoomalldataresource.comLCAX3/0-12H-X10.581In StockPanduit10.58 @ 1
thumbzoomZoroG077394113.841In Stock15Panduit1.1313.84 @ 1
thumbzoomDigi-Key456489314.1513Panduit Corp14.15 @ 1
Onlinecomponents.comLCAX3/0-12H-X14.381In StockPanduit14.38 @ 1
thumbzoomGalcoLCAX3/0-12H-X-PNDT17.4620In StockPanduit1.1217.46 @ 20
thumbzoomPlatt.com025319818.571In StockPanduit18.57 @ 1
Airline HydraulicsPANDUIT LCAX3/0-12H-X21.031In StockPanduit Corp21.03 @ 1
Newark08J1665149.231In StockPANDUIT149.23 @ 1
thumbzoomgordonelectricsupply.comLCAX3/0-12H-X367.01In Stock12PANDUIT367.0 @ 1
