- mpnT2C2J14C
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

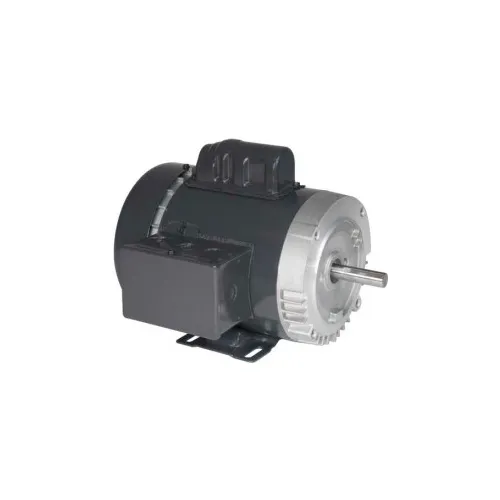

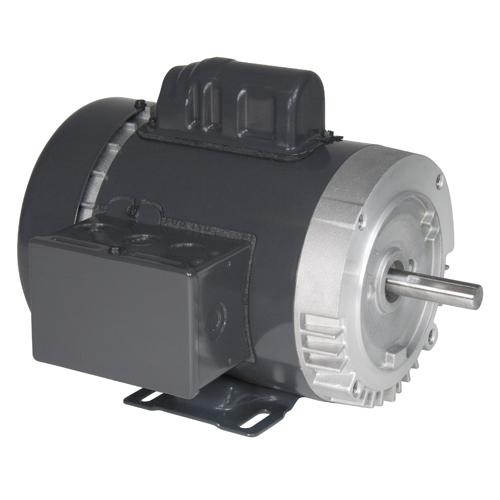

U.S. Motors US Motors, TEFC, 2 HP, 1-Phase, 1725 RPM Motor, T2C2J14C
- Brand: U.S. Motors
- PartNumber: T2C2J14C
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 18.9/10.3-9.4 |
| Bearing Type | Double Shielded |
| Bearings | Ball |
| Capacitor | 60MFD/280VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 81.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 50.60 |
| Family Series | US Motors Motors |
| FL Amps | 18.9/10.3-9.4 |
| FL Efficiency | 81.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,2HP,1725RPM,60HZ,. |
| Item Number | T2C2J14C |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063DCR1648015B |
| Manufacturer Part Number | T2C2J14C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063DCR1648015B |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | T2C2J14C |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| Ship Weight | 46 lbs. |
| Speed (RPM) | 1725 |
| Voltage | 110-120V, 208V, 230V |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2199322 | 594.0 | 1 | In Stock | | U.S. Motors | 46.0 | 594.0 @ 1 |
 | Global Industrial | WBB465801 | 759.0 | 1 | In Stock | | US Motors | | 759.0 @ 1 |
 | emotorpro.com | T2C2J14C | 804.23 | 1 | In Stock | | U.S. Motors | 46.0 | 804.23 @ 1 |
 | motorsandcontrol.com | T2C2J14C | 819.96 | 1 | In Stock | | US Motors (Nidec) | 50.6 | 819.96 @ 1 |
 | Galco | T2C2J14C-USM | 839.49 | 1 | In Stock | | US Motors | 32.0 | 839.49 @ 1 |
 | National Supply Network | B465801 | 882.84 | 1 | In Stock | | US MOTORS | | 882.84 @ 1 |
 | Guardian | 76507318 | 999.41 | 1 | In Stock | | US Motors | | 999.41 @ 1 |
| motionindustries.com | 03941579 | 1074.48 | 1 | In Stock | | US Motors (Nidec) | | 1074.48 @ 1 |
 | bscsource.com | T2C2J14C | 1133.79 | 1 | In Stock | | US Motors | | 1133.79 @ 1 |
