- mpnCFM3166A
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

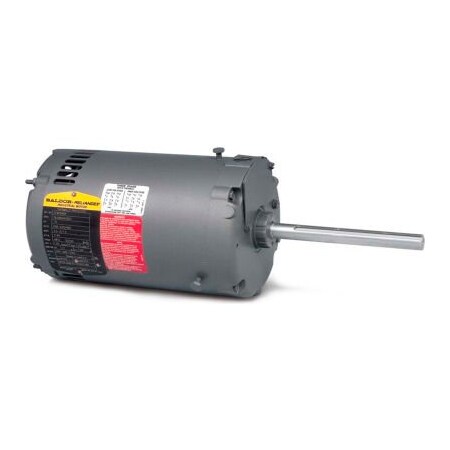

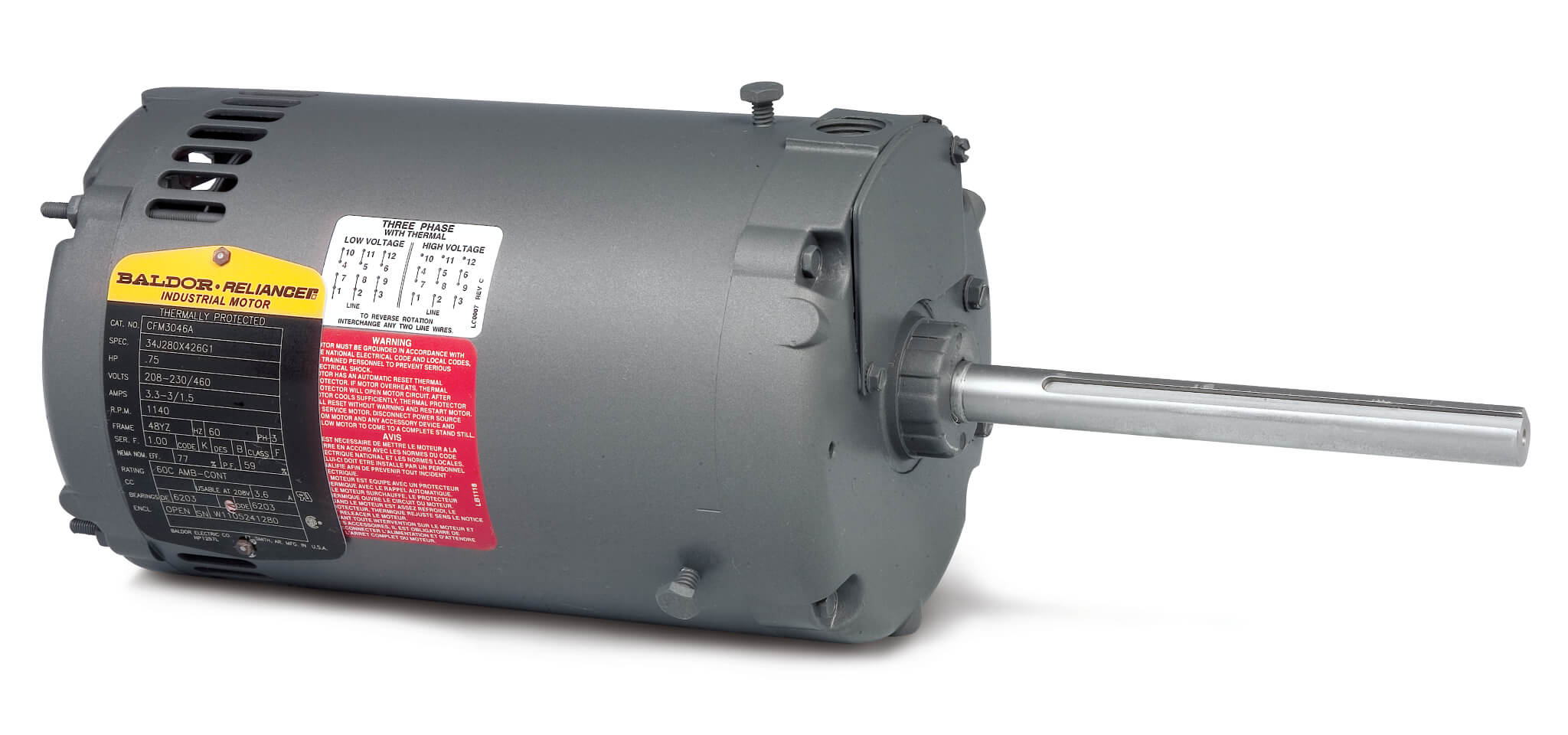

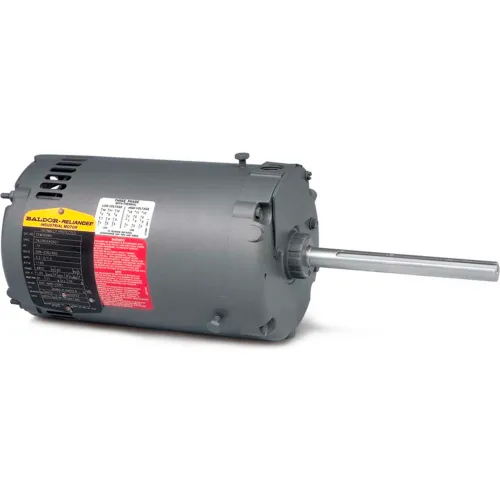

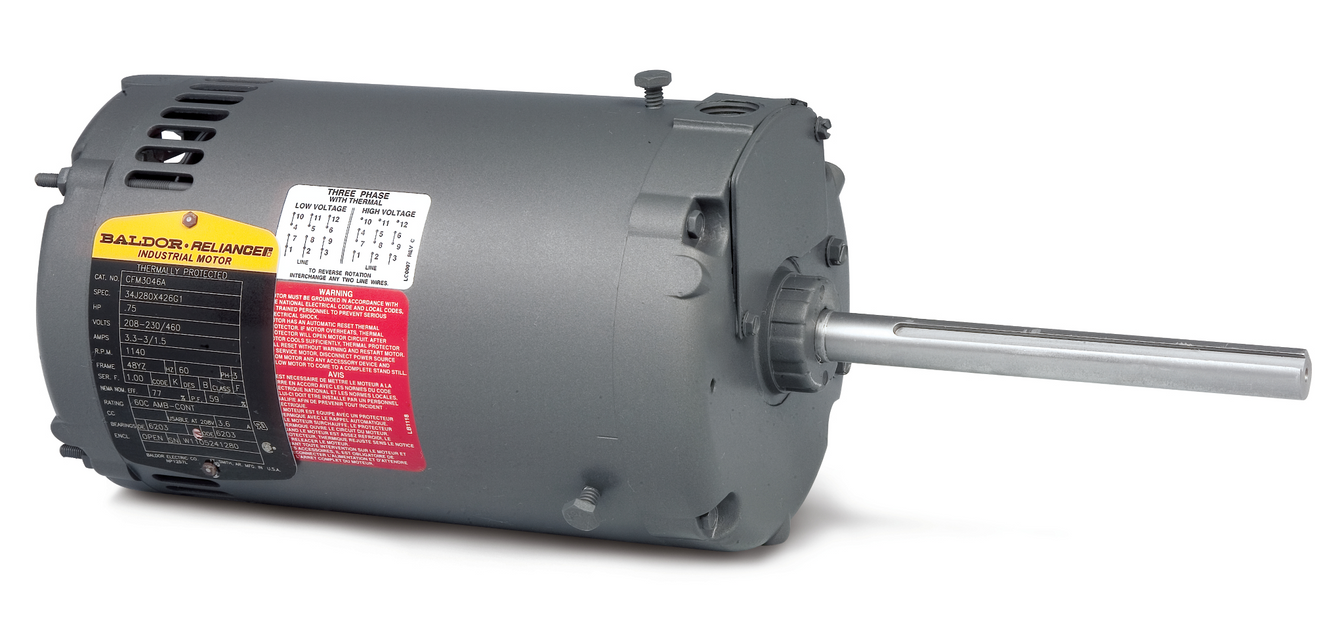

Baldor CFM3166A HVAC Motor
- Brand: Baldor
- PartNumber: CFM3166A
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 2.5/5/5.5 |
| Application | HVAC |
| Bearing Type | Ball |
| Bearings | Sealed |
| Comments | Belly Band Mounting |
| Construction | Cast Iron |
| Drive End Flange Type | Terminal Panel |
| Duty Cycle | Continuous |
| Efficiency | 76.0% |
| Efficiency % | 76 % |
| Enclosure | Open, Drip Proof |
| Enclosure Material | Steel |
| Enclosure Type | OPAP, OPAO (Open Air Ov. |
| Estimated Weight | 48.00 |
| Family Series | Baldor Motors, FM Series |
| FL Amps | 5.5-5/2.5 |
| FL Efficiency | 76 |
| Frame | 56YZ |
| Frame Type | 56YZ |
| Gross Weight | 47 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| Horsepower Rating | 1.5 HP |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | CFM3166A |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35K306Y797 |
| Manufacturer Part Number | CFM3166A |
| Maximum Ambient Tempera. | 60? C |
| Mounting | Resilient, Footless |
| Mounting Type | Footless |
| NEMA Frame | 56YZ |
| Net Weight | 47 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overall Length | 17.43 ", 17.43" |
| Overload Protection | Automatic |
| Part Number | CFM3166A |
| Phase | 3, 3 Phase |
| Product Series | FM |
| Product Type | Fractional HP (HVAC), T. |
| Rotation | Reversible |
| RPM | 1,200 RPM, 1140, 1140 R. |
| Series | HV3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625" |
| Ship Weight | 48 lbs. |
| Special Features | Automatic Thermal Overl. |
| Speed (RPM) | 1140 |
| Supply Voltage | 208-230/460 VAC |
| Thermal Protection | Automatic |
| UPC Code | 781568121504 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | CFM3166A | 735.41 | 1 | In Stock | | Baldor | 48.0 | 735.41 @ 1 |
| factorysupplyoutlet.com | IR13HF | 811.7 | 1 | In Stock | | Baldor-Reliance | | 811.7 @ 1 |
 | Galco | CFM3166A-BLDR | 813.73 | 1 | In Stock | | Baldor | 47.0 | 813.73 @ 1 |
 | Walker Industrial | CFM3166A | 813.73 | 1 | In Stock | | Baldor | | 813.73 @ 1 |
 | Global Industrial | WBB388647 | 829.0 | 1 | In Stock | | Baldor-Reliance | | 829.0 @ 1 |
| motorsandcontrol.com | CFM3166A | 847.63 | 1 | In Stock | | Baldor Reliance | 48.0 | 847.63 @ 1 |
 | pumpproducts.com | CFM3166A | 962.5 | 1 | In Stock | | Baldor | | 962.5 @ 1 |
| us.rs-online.com | 71935112 | 988.1 | 1 | 3 | | Baldor-Reliance | | 988.1 @ 1 |
| kirbyrisk.com | 1776965 | 1066.96 | 1 | In Stock | | Baldor | | 1066.96 @ 1 |
| motionindustries.com | 00534511 | 1173.42 | 1 | In Stock | | Baldor-Reliance | | 1173.42 @ 1 |
 | Zoro | G804936984 | 1440.85 | 1 | In Stock | | Baldor-Reliance | | 1440.85 @ 1 |
 | Raptor Supplies | AJ6QCD | 2423.6327115 | 1 | In Stock | | BALDOR MOTOR | | 2423.6327115 @ 1 |
