- mpnC54521
- brandname: CLEVELAND
- manufacturername: CLEVELAND

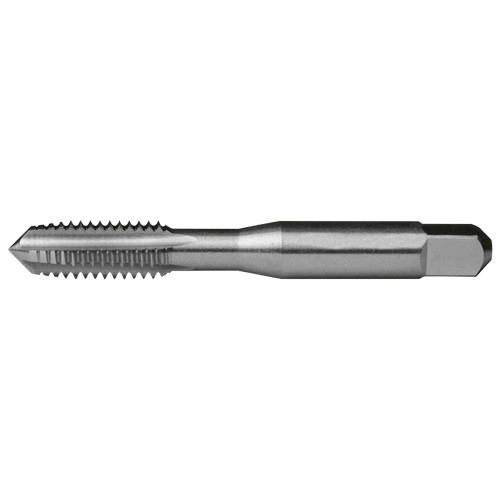

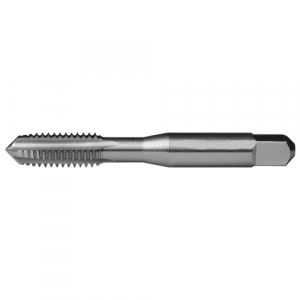

Straight Flute Tap, Plug, 3 Flutes (2 Pieces)
- Brand: CLEVELAND
- PartNumber: C54521
- Manufacturer: CLEVELAND
- Label: CLEVELAND
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 9/32 in |
| 65% Thread Drill Size | J |
| 75% Thread Drill Size | I |
| Catalog Page | N/A |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| Item | Straight Flute Hand Tap |
| Item? | 435N06 |
| List Number | 1002 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Fractional Inch, Imperi. |
| Mfr. Model? | C54521 |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 2.72 in, 2-23/32", 2-23. |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, O, P, S, H;. |
| Secondary Material Appl. | Aluminum; Brass; Bronze. |
| Secondary Material Appl. | K, M, N, P, K; M; N; P |
| Series | 1002 |
| Shank Dia. | 5/16 in, Shank Dia.: 0.. |
| Shank Diameter | 0.318 in |
| Shank Length | 1 19/32 in, 1-19/32 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.2380 in |
| Standards | USCTI TABLE 302A |
| Style | 1002 |
| Surface Condition | Bright |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | 5/16" |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 5/16"-24 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 1-1/8", 11/16 in, 0.69 . |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 / 2B |
| Thread Pitch | 24 |
| Thread Size | 5/16"-24, 5/16-24 |
| Thread Standard | Ground/UNF, UNF |
| Threads per Inch | 24 |
| Tool Size | 5/16-24 UNF |
| Type | General Purpose Standard |
| UNSPSC | 27112806 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120266 | 6.76 | 6 | 2 | | Cleveland | | 6.76 @ 6 |
 | usmegastore.com | C54521 | 8.51 | 1 | 2 | | Cleveland | | 8.51 @ 2 |
 | Megadepot | C54521 | 8.51 | 1 | 2 | | Cleveland | | 8.51 @ 2 |
 | Zoro | G2845661 | 9.54 | 1 | 2 | | Cleveland | 0.06 | 9.54 @ 2 |
 | sustainablesupply.com | C2974965 | 10.23 | 1 | 2 | | Cleveland | 0.06 | 10.23 @ 2 |
| Grainger | 435N06 | 13.59 | 1 | 2 | | CLEVELAND | | 13.59 @ 2 |
 | National Supply Network | 40204646 | 15.455 | 1 | 2 | | Cleveland | | 15.455 @ 2 |
 | bscsource.com | C54521 | 16.09 | 1 | 2 | | Cleveland | | 16.09 @ 2 |
