- mpnC54522
- brandname: CLEVELAND
- manufacturername: CLEVELAND

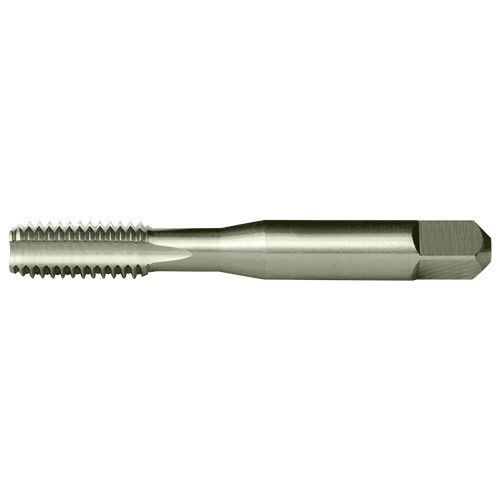

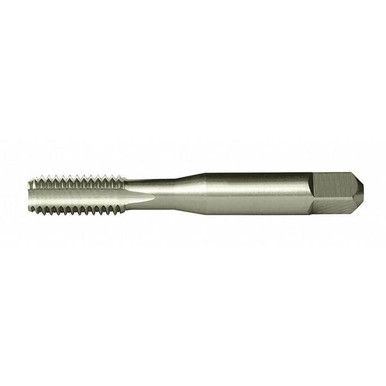

Straight Flute Tap, Bottoming, 3 Flutes (2 Pieces)
- Brand: Cleveland
- PartNumber: C54522
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 9/32 in |
| 65% Thread Drill Size | J |
| 75% Thread Drill Size | I |
| Brand | Cleveland |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Current Stock | 6 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Straight Flute Hand Tap |
| List Number | 1003 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | C54522 |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 2.72 in, 2-23/32" |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, O, P, S |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | K, M, N, P |
| Series | 1003 |
| Shank Dia. | Shank Dia.: 0.318" |
| Shank Diameter | 0.318 in |
| Shank Length | 1 19/32 in |
| Shank Type - Machining | Straight |
| SKU | ZO-G2845792 |
| Spiral Direction | Neutral |
| Square Size | 0.2380 in |
| Standards | USCTI Table 302A |
| Style | 1003 |
| SubCategory | Machining/Threading |
| Surface Condition | Bright |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | 5/16" |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 5/16"-24 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 1-1/8", 0.69 in |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 / 2B |
| Thread Pitch | 24 |
| Thread Size | 5/16"-24, 5/16-24 |
| Thread Standard | Ground/UNF, UNF |
| Threads per Inch | 24 |
| Tool Size | 5/16-24 UNF |
| Type | General Purpose Standard |
| UPC | 697334545224 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120267 | 6.76 | 6 | 2 | | Cleveland | | 6.76 @ 6 |
 | Megadepot | C54522 | 8.51 | 1 | 2 | | Cleveland | | 8.51 @ 2 |
 | usmegastore.com | C54522 | 8.57 | 1 | 2 | | Cleveland | | 8.57 @ 2 |
 | Zoro | G2845792 | 9.69 | 1 | 2 | | Cleveland | 0.06 | 9.69 @ 2 |
 | bscsource.com | C54522 | 9.69 | 1 | 2 | | Cleveland | | 9.69 @ 2 |
 | sustainablesupply.com | C2974966 | 10.23 | 1 | 2 | | Cleveland | 0.06 | 10.23 @ 2 |
 | National Supply Network | 40204661 | 15.455 | 1 | 2 | | Cleveland | | 15.455 @ 2 |
 | simsupply.com | ZO-G2845792 | 16.5 | 1 | 6 | | Cleveland | | 16.5 @ 2 |
 | Guardian | 40204661 | 16.66 | 1 | 2 | | Cleveland | | 16.66 @ 2 |
