E-Switch TL1105LF100Q

B073C48L75

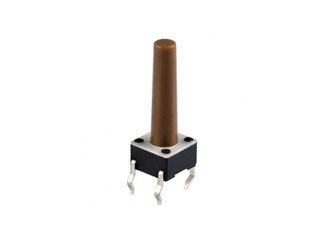

E-Switch TL1105LF100Q Switches Tactile TL1105 Series SPST 1 N Round Button PC Through Hole Tactile Switch - 50 Item(s)

E-Switch TL1105LF100Q Switches Tactile TL1105 Series SPST 1 N Round Button PC Through Hole Tactile Switch - 50 Item(s)zoom

Attributes

Key Value
Actuator colourbrown
Actuator Height off PCB.17.00mm
Actuator Length, Right .-
Actuator MaterialPolyamide (PA), Nylon
Actuator OrientationTop Actuated
Actuator TypeStandard
Base Product NumberTL1105
Body dimensions6x6x4mm
Button height17mm
Button shaperound
CategorySwitches
CircuitSPST-NO
Contact Rating @ Voltage0.05A @ 12VDC
Contacts configurationSPST-NO
DC contacts rating @R0.05A / 12V DC
Features-
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Key stroke0.25mm
Leadsfor PCB
ManufacturerE-Switch
Max. contact resistance:100m?
Mechanical durability100000 cycles
Mechanical Life100,000 Cycles
MfrE-Switch
MountingTHT
Mounting TypeThrough Hole
Number of positions2
Operating Force0.98N, 100gf
Operating Temperature-20?C ~ 70?C
Operating temperature-40...85?C
Outline6.00mm x 6.00mm
PackageBulk
Part StatusActive
Product StatusActive
SeriesTL1105
Stable positions number1
Switch FunctionOff-Mom
Switch Travel0.25mm
Switching methodOFF-(ON)
Terminal pitch6.5x4.5mm
Termination StylePC Pin
Type of switchmicroswitch TACT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk ElectronicsTL1105LF100Q0.1486525050E-Switch0.1486 @ 5250
TMETL1105LF100Q0.26750050E-SWITCH0.26 @ 7500
Future Electronics38058190.312750050E-Switch0.312 @ 7500
Digi-Key3789700.36384150E-Switch0.36384 @ 50
