Hubbell HBL3100PS1W

mpnHBL3100PS1W
brandname: Hubbell Wiring Device-Kellems
manufacturername: Hubbell Wiring Device-Kellems

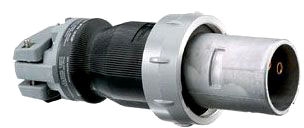

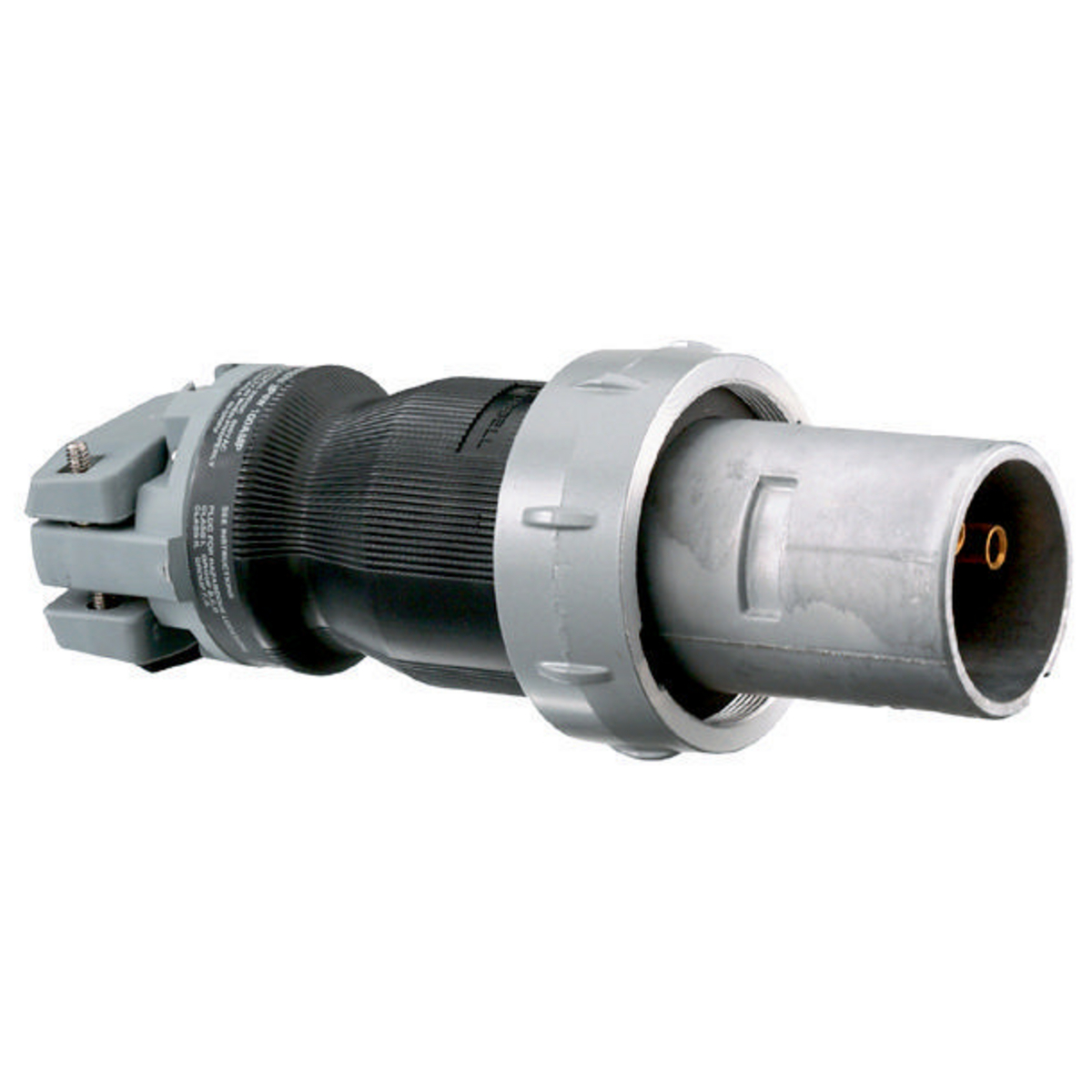

Hubbell HBL3100PS1W Pin and Sleeve Watertight Insulgrip Plug, 2 Pole, 3 Wire, Standard S1 Service, 100 amp, 600V

Hubbell HBL3100PS1W Pin and Sleeve Watertight Insulgrip Plug, 2 Pole, 3 Wire, Standard S1 Service, 100 amp, 600V

zoom

Brand: Hubbell
PartNumber: HBL3100PS1W
Model: HUBHBL3100PS1W
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Amperage	100A
Amperage Rating	100
Approvals	CSA, UL
Aux/Pilot Contacts	None
Built-In Strain Relief	Yes
Case Material	Non-Metallic
Color	Black/Gray
Connection Description	Water Resistant
Country of Origin (subj.	United States
Current Rating	100 A
Dimensions	0.925 in Dia x 1.94 in L
Family Series	Hubbell Plugs & Recepta.
Gross Weight	3.8 lbs
Item Number	HBL3100PS1W
Lockout-Tagout	No
Manufacturer	Hubbell
Manufacturer Part Number	HBL3100PS1W
Material	Composite
Net Weight	0 lbs
Number of Poles	2
Number of Wires	3
Product Series	Insulgrip
Temperature Range (F)	-40-167 ?F
Temperature Rating (Deg.	-40 to 75
Terminal Type	Pressure Terminal Screw.
Type	Male Watertight Standard
UPC Code	783585010908
Voltage	600 V, 250V DC/600V AC
Voltage Color Code	Black, Gray
Voltage Rating	600 VAC/250 VDC
Wire Size	2 AWG, 3 AWG, 4 AWG
Wire Size Range	4-2 AWG
