- mpn321960
- brandname: Jet
- manufacturername: Jet

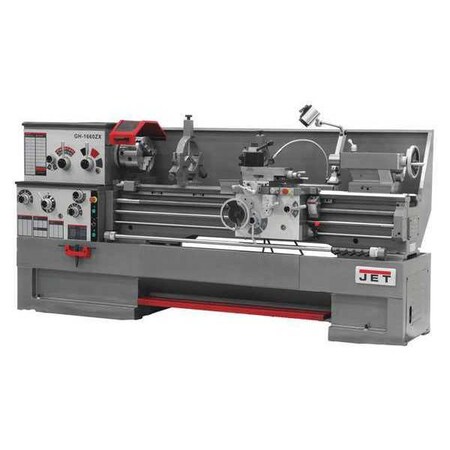

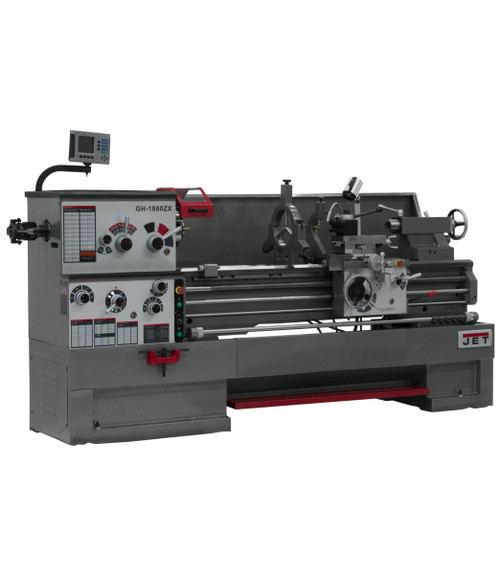

GH-1860ZX 18 Swing 60 Centers
- Brand: Jet
- PartNumber: 321960
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| ASIN | B0007M6GD6 |
| Bed Width | 13 1/8 in |
| Carriage Travel (In.) | 55, 55-9/16 </td |
| Compound Slide Travel (. | 5-1/8 </td |
| Condition | New |
| Cross Feed Rates | 122 |
| Cross Slide Travel (In.) | 9 </td |
| Cross Travel (In.) | 9 |
| Distance Between Center. | 60, 60 </td |
| Drive | Geared Head </td |
| Follow Rest Capacity (I. | 1/2 - 3-1/2 </td |
| Gap Length | 12 in |
| Gap Length (In.) | 12 |
| Horsepower | 3 |
| Includes | (5) 12 in Faceplates, 1. |
| Is Discontinued By Manu. | No |
| Item | Lathe |
| Item model number | 321960 |
| Item Package Quantity | 1 |
| Length of Gap (In.) | 12 </td |
| Longitudinal Feed Rates | 122 |
| Manufacturer | Jet |
| Max Tool Size (In.) | 1 x 1 </td |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph. |
| Number of Inch Threads | 61 </td |
| Number of Longitudinal . | 122 </td |
| Number of Metric Threads | 24 </td |
| Number of Spindle Speeds | 12 </td |
| Number of Threads (mm) | 24 |
| Overall Dimensions (L x. | 115 x 44 x 66 </td |
| Overall Height | 116 in |
| Overall Length | 116 in |
| Overall Width | 44 in |
| Part Number | 321960 |
| Phase | Three |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0006 - .0365 </td |
| Range of Inch Threads (. | 1-5/8 - 72 </td |
| Range of Longitudinal F. | .0015 - .0913 </td |
| Range of Metric Threads | .05 - 20 </td |
| Range of Spindle Speeds. | 25 - 1,800 </td |
| Size | 18 x 60 </td, 18 |
| SKU | 321960 |
| Spindle Bore (In.) | 3-1/8, 3-1/8 </td |
| Spindle Mount | D1-8 </td |
| Spindle Speed (RPM) | 25 to 1800 |
| Spindle Taper | MT-7 |
| Spindle Taper with Slee. | MT-7 (MT-5) </td |
| Steady Rest Capacity (I. | 3/8 - 7-3/4 </td |
| Style | Lathe |
| Style (Type) | Engine - Large Spindle . |
| Swing Over Bed (In.) | 18, 18 </td |
| Swing Over Cross Slide . | 11, 11 </td |
| Swing Through Gap (In.) | 27-1/2 </td |
| Tailstock Spindle Trave. | 5 </td |
| Tailstock Taper | MT3 |
| Tailstock Travel (In.) | 5 |
| Taper in Tailstock Spin. | MT-5 </td |
| Thread Range (In.) | 1-5/8 to 72 |
| UPC | 66275516509 |
| Voltage | 230/460V AC |
| Weight (Lbs.) | 6,245 </td |
| Width of Bed (In.) | 13-1/8 </td |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Amazon | B0007M6GD6 | 22079.0 | 1 | In Stock | | Jet | | 22079.0 @ 1 |
| internationaltool.com | JET-321960 | 27739.0 | 1 | In Stock | | Jet | | 27739.0 @ 1 |
 | penntoolco.com | 113685 | 28299.0 | 1 | In Stock | | Jet | | 28299.0 @ 1 |
 | Global Industrial | WBB0230892 | 28299.0 | 1 | In Stock | 24 | JET | | 28299.0 @ 1 |
 | JB Tools | JB-DS-WLT-JT9-321960 | 28299.0 | 1 | 2 | | Jet | | 28299.0 @ 1 |
| ToolUp.com | JET 321960 | 28299.0 | 1 | In Stock | | Jet | | 28299.0 @ 1 |
 | AceTool | JET-321960 | 28299.0 | 1 | In Stock | | Jet | 6245.0 | 28299.0 @ 1 |
 | burnstools.com | 321960 | 28299.0 | 1 | In Stock | | Jet | | 28299.0 @ 1 |
| elitemetaltools.com | 2429 | 28299.0 | 1 | In Stock | | JET | 6316.0 | 28299.0 @ 1 |
 | toolsplus.com | JET321960 | 28299.0 | 1 | In Stock | | JET | | 28299.0 @ 1 |
 | imsbolt.com | 321960 | 28299.0 | 1 | In Stock | | JET | | 28299.0 @ 1 |
 | Zoro | G9879432 | 28849.0 | 1 | In Stock | | Jet | 6245.0 | 28849.0 @ 1 |
 | Radwell | 321960 | 29850.0 | 1 | In Stock | | JET | | 29850.0 @ 1 |
 | bscsource.com | 321960 | 42011.59 | 1 | In Stock | | Jet | | 42011.59 @ 1 |
