Leeson 192265.00

mpn192265.00
brandname: Leeson
manufacturername: Leeson

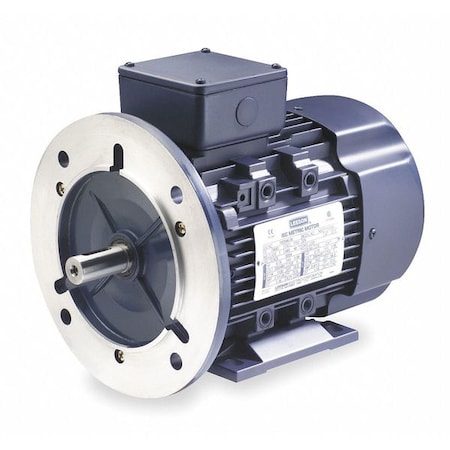

Leeson .1HP-.75KW 3600RPM.80.IP55.230/460V.3PH.60HZ.CONT.40C.1.15SF.B3/B5.IEC METRIC.NOT (192265.00)

Leeson .1HP-.75KW 3600RPM.80.IP55.230/460V.3PH.60HZ.CONT.40C.1.15SF.B3/B5.IEC METRIC.NOT (192265.00)

zoom

Brand: Leeson
PartNumber: 192265.00
PackageQuantity: 1
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
CC Number	CC005A
Country of Origin (subj.	China
Description:	.1HP-.75KW.. 3600RPM.80.
Duty	Continuous
Duty Cycle	Continuous
Family Series	Leeson Motors
Frame	D80D
Frame Material	Aluminum
Frequency	60 Hz
Full Load Amps	2.8
Full Load Amps @ 50Hz	2.8
Green Certification or .	NEMA Premium(R) Rated
Gross Weight	0 lbs
Horsepower	1 hp
HP	1
HP @ 50Hz	1
Hz	60/50
Includes	Terminal Board, Multi-M.
Ins. Class	F
Inverter Rated	Yes
Item	Metric Motor
Item Number	192265.00
kW	0.75
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	192265.00
Max. Ambient Temp.	40 Degrees C
MFG Part #:	192265.00
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Cast Aluminum
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Nameplate RPM	3,600
NEMA Design	B
NEMA Frame	80
Net Weight	0 lbs
No. of Speeds	1
Nominal Efficiency	77 %
Nominal Voltage	240 VAC, 480 VAC
Phase	Three
RPM	3,600 RPM
RPM @ 50Hz	3,475
RPM Range	3,001-3,600
Service Factor @ 50Hz	1.15
Shaft Dia.	19 mm
Shaft Length	40 mm
Standards	CE Certified, CSA Certi.
Supplier:	LEESON ELECTRIC CORPORA.
UPC:	691720991909
Usable @ 200V	No
Usable @ 208V	No
Voltage	230/460V AC
Voltage (AC)	230 VAC, 460 VAC
Voltage @ 50Hz	230/460V AC
Voltage Compatibility	200-230/440V AC, 200-23.
Weight	30 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3016343	204.4	1	In Stock	20	Leeson	30.0	204.4 @ 1
	electricmotorwholesale.com	192265	246.0	1	In Stock		LEESON		246.0 @ 1
	Galco	192265.00-LEES	512.71	1	In Stock		Leeson		512.71 @ 1
	kscdirect.com	LEE 192265.00	601.81	1	In Stock		LEESON ELECTRIC CORPORATION		601.81 @ 1
