Macromatic TR-60628

B00DDDTO8A

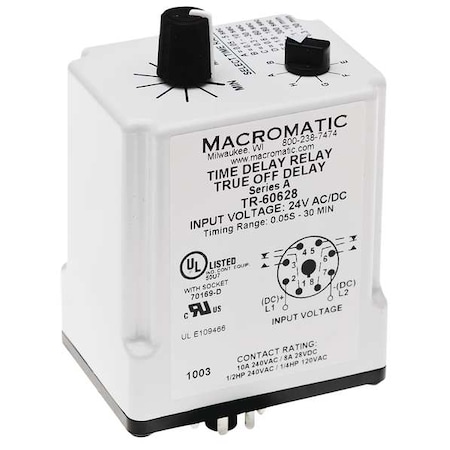

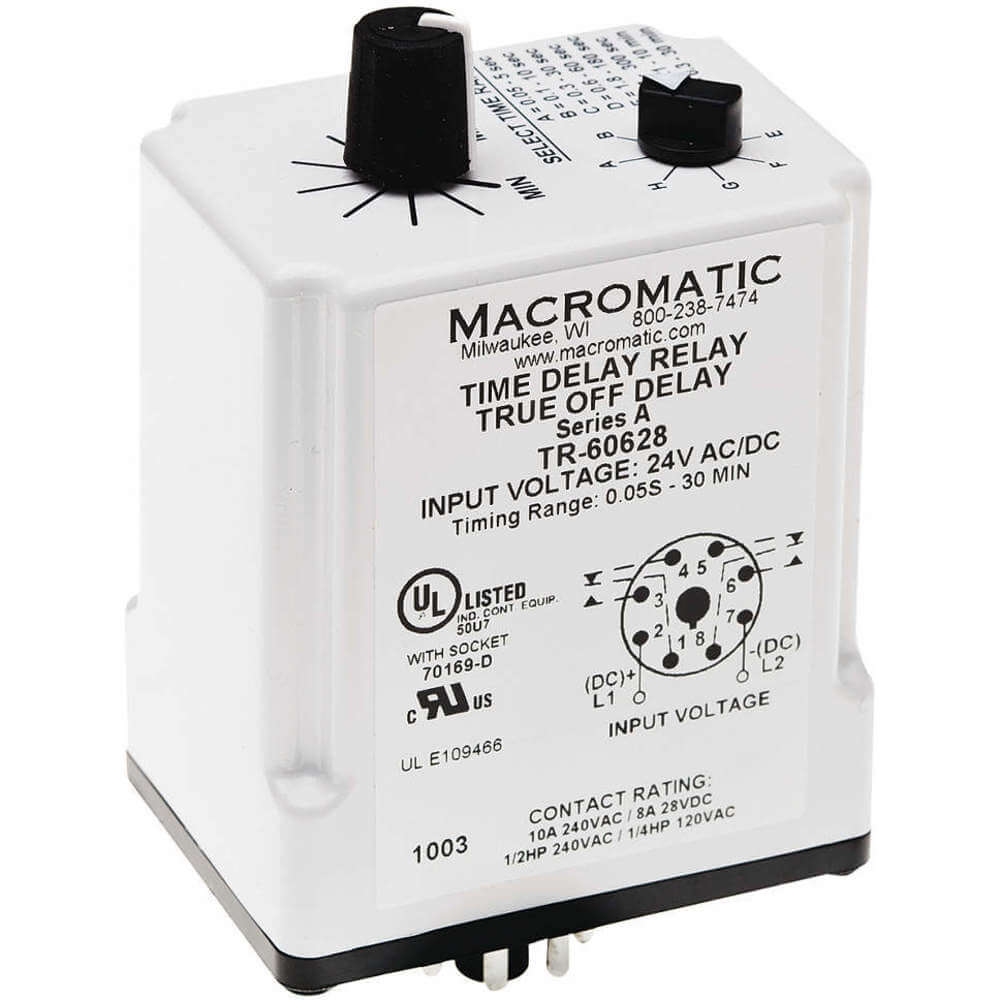

Macromatic TR-60628 Timer; Off Delay; 0.005Sec-30Min; E-Mech; DPDT; 10 A; 24VAC/DC; 8Pin Octal; Time Ranger

Macromatic TR-60628 Timer; Off Delay; 0.005Sec-30Min; E-Mech; DPDT; 10 A; 24VAC/DC; 8Pin Octal; Time Rangerzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 240V
Adjustment Method - Tim.Potentiometer
Adjustment OperatorKnob
ApprovalsCE, cULus, cURus
Base Type - Plug In Rel.Octal
Body Depth2.9 in
Body Depth - Relay1.7 in
Body Height1.7 in
Body Height - Relay2.9 in
Body Width2.3 in
Body Width - Relay2.4 in
BrandMacromatic
Coil Voltage24 VAC, 24 VDC
Coil Volts24V AC/DC
ColorWhite
Contact FormDPDT
Contact Form - RelayDPDT
Contact Rating (A)10 A
ContactsDPDT
Control Voltage24
Current Rating10 A
Current Stock197
DC Contact Rating - Rel.8A @ 28V
Family SeriesMacromatic Relays, TR-6.
Flat Pin WidthNot Applicable
FunctionTrue Off-Delay
Function - Timing RelayPower Off Delay (True O.
Gross Weight0.27 lbs
Input Voltage24V AC/DC
International ShippingNo
Item - RelaySingle Function Timing .
Item NumberTR-60628
ManufacturerMacromatic
Manufacturer Part NumberTR-60628
Max Time30 min
Max. Time Setting - Tim.30 min
Min. Time Setting - Tim.0.05 sec
Mode of OperationTrue Off Delay
Mounting - RelayPlug In
Mounting TypeSocketable, Plug-In
MpnTR-60628
Multi-FunctionNo
Net Weight0.22 lbs
Nominal Coil Voltage24 VAC, 24 VDC
Number of Pins8
Number of Pins - Relay8
Operating Functions10
Overall Depth3.5 in
Overall Height - Relay3.1 in
Pins8
Power Consumption - Rel.2 VA
Primary TypeTime Delay Relays
Product SeriesTR-6
Relay TypeElectromechanical
SeriesTR-6 Series
SKUZO-G2429987
Status IndicatorNone
SubCategoryElectrical
Termination8 Pin, 8-Pin Octal
Time Range (Minutes)0-1, 0-2, 0-3, 0-5, 0-1.
Time Range (Seconds)0-1, 0-2, 0-3, 0-5, 0-1.
Timing Range0, 0.1 Sec. to 120 Min.
UPC801262055483
Voltage (AC)24 VAC
Voltage (DC)24 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC120694066.221In StockMacromatic0.2766.22 @ 1
thumbzoomZoroG242998771.991257Macromatic0.2771.99 @ 1
AmazonTPB007ICAERC87.481In Stock2Macromatic87.48 @ 1
thumbzoomsimsupply.comZO-G242998789.561197Macromatic89.56 @ 1
thumbzoomRaptor SuppliesAE7BKM107.65667251In StockMACROMATIC107.6566725 @ 1
thumbzoomblackhawksupply.comTR-60628112.161In StockMacromatic112.16 @ 1
thumbzoomWalker IndustrialTR-60628115.041In Stock17Macromatic115.04 @ 1
thumbzoomGalcoTR-60628-MCRM118.1912Macromatic0.27118.19 @ 1
standardelectricsupply.com2231930119.831In StockMacromatic Controls119.83 @ 1
us.rs-online.com70175158125.2218Macromatic125.22 @ 1
thumbzoomNewark01N5004206.061In StockMACROMATIC CONTROLS206.06 @ 1
