- mpn5KC49PN0253
- brandname: Marathon Motors
- manufacturername: Marathon Motors

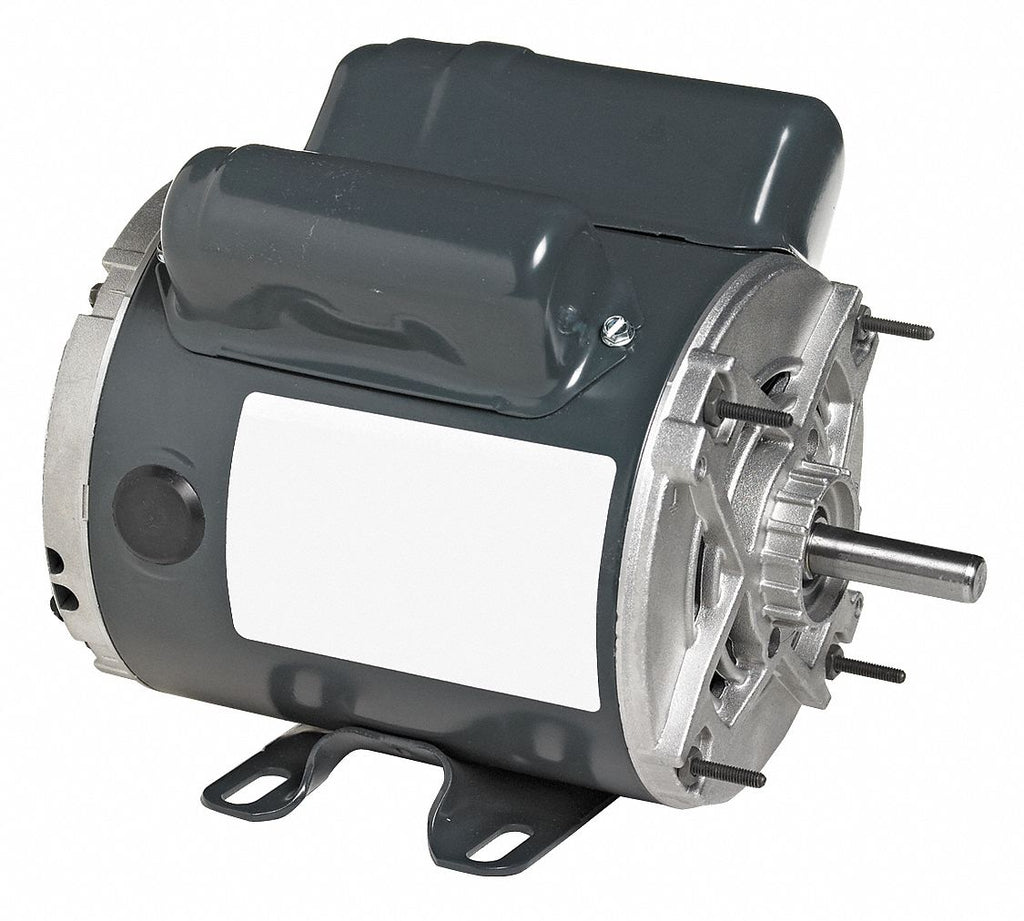

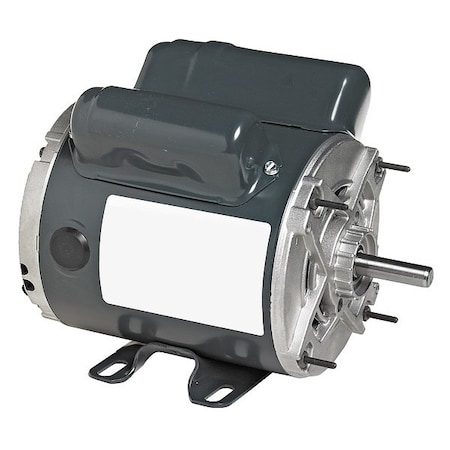

Inst Rev Motor, 1 HP, 1725 RPM, 115/230 V
- Brand: Marathon Industries
- PartNumber: 5KC49PN0253
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | For Door Operators, Mac. |
| ASIN | B008687448 |
| Availability | No Stock Available |
| Batteries Required? | No |
| Brand | Marathon Motors |
| Certification | CE/CSA/IEC/NEMA/UL |
| Classification | Instant Reversing |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency % | 68 % |
| Enclosure | ODP, Open |
| Extended Thru-Bolts | Yes |
| Family Series | Marathon Electric Motors |
| FL Amps | 13.6 |
| FL Efficiency | 68 |
| Frame | 56 |
| Frame Remarks | WB |
| Full Load Amps | 13.6/6.8 |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Ins. Class | B |
| International Shipping | No |
| Item | Instant Reverse Motor |
| Item Condition | Factory New |
| Item model number | 5KC49PN0253 |
| Item Number | 5KC49PN0253 |
| Item Package Quantity | 1 |
| Kilowatts | 0.75 kW |
| KW | 0.75 |
| Length Less Shaft | 9 1/2 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | C1469 |
| Material | HAWA |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Garage and Gate Opener |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW, CW |
| Motor Thermal Protection | None |
| Mounting | Footed |
| Mounting Type | Footed |
| Mpn | 5KC49PN0253 |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56 |
| Net Weight | 31 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 68 % |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Speeds | 1 |
| Number of Wires | 6 |
| Overall Length | 11 3/8 in |
| Part Number | 5KC49PN0253 |
| Phase | 1, Single |
| Product Type | Instant Reversing |
| RPM | 1800, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | CU-3555313737 |
| Speed (RPM) | 1725 |
| Standards | CSA, UL Recognized |
| SubCategory | Motors/Ac Motors |
| UNSPSC Code | 39120000 |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 110-120 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/230 |
| Weight | 31 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KC49PN0253-MARA | 167.79 | 1 | In Stock | | Marathon Electric | 31.0 | 167.79 @ 1 |
 | motorsandcontrol.com | C1469 | 187.52 | 1 | In Stock | | Marathon Motors | | 187.52 @ 1 |
 | simsupply.com | CU-3555313737 | 367.61 | 1 | In Stock | | Marathon Motors | | 367.61 @ 1 |
 | Zoro | G0411661 | 418.02 | 1 | In Stock | | Marathon Motors | 31.5 | 418.02 @ 1 |
 | Amazon | B008687448 | 491.79 | 1 | In Stock | | Marathon Industries | | 491.79 @ 1 |
 | Dealers Electric | 5KC49PN0253 | 508.07 | 1 | In Stock | | Marathon Electric | 31.0 | 508.07 @ 1 |
 | sustainablesupply.com | C1565631 | 538.22 | 1 | In Stock | | Marathon | 31.5 | 538.22 @ 1 |
 | Raptor Supplies | AE6MMB | 826.570836 | 1 | In Stock | | MARATHON MOTORS | | 826.570836 @ 1 |
