PICKER PC312B-12H-X

B075NR1W78

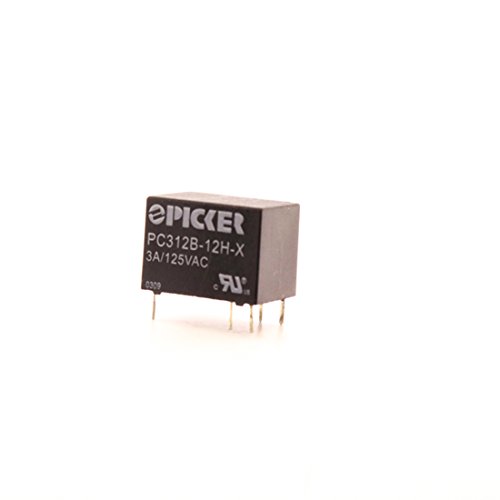

PC312B-12H-X | SPDT 12 VDC Coil, 5 Amp 125 VAC UL Rated, Subminiature PCB Signal Relay with Gold Clad Contacts and 200mW Sensitivy | Cross: Song Chuan 842A-1C-S-12VDC

PC312B-12H-X | SPDT 12 VDC Coil, 5 Amp 125 VAC UL Rated, Subminiature PCB Signal Relay with Gold Clad Contacts and 200mW Sensitivy | Cross: Song Chuan 842A-1C-S-12VDCzoom

Attributes

Key Value
CategoryRelays
Coil Current16.7 mA
Coil InsulationClass B
Coil Resistance720 Ohms
Coil TypeNon Latching
Coil Voltage12VDC
Contact FormSPDT (1 Form C)
Contact MaterialSilver Nickel (AgNi), G.
Contact Rating (Current)3 A
Features-
MfrPicker Components
Mounting TypeThrough Hole
Must Operate Voltage9 VDC
Must Release Voltage1.2 VDC
Operate Time5 ms
Operating Temperature-25?C ~ 70?C
PackageBag
Part StatusActive
Relay TypeTelecom
Release Time5 ms
Seal RatingSealed - Fully
Series-
Switching Voltage220VAC, 60VDC - Max
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key125488850.5691351000175Picker Components0.569135 @ 1000
