Schneider Electric XB5S2B2L2

B00CONPSKS

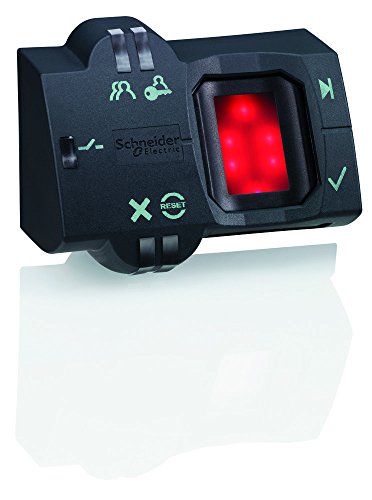

SCHNEIDER ELECTRIC XB5S2B2L2 Biometric W/Cable

SCHNEIDER ELECTRIC XB5S2B2L2 Biometric W/Cablezoom

Attributes

Key Value
(Switching-Indication) .Plastic
(Switching-Indication) .24 Volt
(Switching-Indication) .Monostable, MOMENTARY
(Switching-Indication) .22 mm
ActionMOMENTARY
Actuatorfingerprint reader;Mome.
Actuator Type-, Fingerprint Reader
ApplicationIndustrial machines;mat.
BrandSchneider Electric
Cable Length2 m
Cable MaterialPvR
Catalog NumberXB5S2B2L2
CategorySwitches
Circuit-
Circuit TypePNP
Color - Actuator/Cap-
ComponentBiometric Switch Comple.
Connection1 pre-wired cable, 3 x .
Connection Type(1) Pre-Wired Cable
Country of OriginFR - France, France
Current Rating (Amps)-
Depth1.53 in
DescriptionHARMONY XB5S, BIOMETRIC.
Detailed DescriptionPushbutton Switch Illum.
Digi-Key Part Number4008-XB5S2B2L2-ND
ECCNEAR99
Electrical Connectionfree wire ends 3 2 m
Electrical Life-
EnclosurePolyamide PA66
Enclosure MaterialPolyamide PA66
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Miscellaneous
Features-
FunctionFingerprint recognition
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Height2.13 in
Housing MaterialPolyamide PA66
IEC RatingIEC 61000-6-2; IEC
Illumination Type, ColorLED, Green/Orange/Red
Illumination Voltage (N.24 VDC
Indicatorfor output state indica.
Ingress ProtectionIP65 - Dust Tight, Wate.
IP RatingIP65, 65
ItemBiometric Switch
Item NumberXB5S2B2L2
Item TypeBiometric switch;Monost.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberXB5S2B2L2
Manufacturer Product Nu.XB5S2B2L2
Manufacturer Standard L.3 Weeks
MarkingCE
MaterialDark grey plastic, PVR .
Max. Current200 mA
Maximum Operating Tempe.50 C
Mechanical Life-
MfrSchneider Electric
Minimum Operating Tempe.-5 C
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount, Front
NEMA Rating12
NEMA TypeNEMA 12
Net Weight0 lbs
Operating Temp.23 Degrees to 122 Degr.
Operating Temperature-5-50 A Degrees C, -5?C.
Operating Voltage24 V
OperationMOMENTARY
Operation TypeMOMENTARY
Output TypePNP
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Product StatusActive
Product TypeBiometric Switch
Response TimeLess Than 1 Sec.
SeriesHarmony XB5, Harmony XB.
Shock Resistance50 gm, duration 11 ms
Size0.87
Special FeaturesStand Alone ; 200 Users.
StandardIP20 EN/IEC 60529 rear .
StandardsUL, CSA, CE, IEC 61000-.
Storage Capacity200 Records
Sub BrandXB5S
Switch Function-
Switching Current200 mA
TerminationCable 3-Wire
Termination StyleCable Leads
TypeIlluminated
UNSPSC39122216
UPC785901679080
UPC Code785901679080
Use WithIndustrial Machines; Ma.
Vibration Resistance1 gn-9 Hz to 500 Hz
Voltage24V DC
Voltage Rating20 to 30 V, 24 V DC
Warranty DescriptionContractual Warranty:18.
Width2.73 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.comXB5S2B2L2369.561In StockSquare D369.56 @ 1
thumbzoomGalcoXB5S2B2L2-SQD420.551In StockSquare D420.55 @ 1
thumbzoomDigi-Key16613673436.6112Schneider Electric436.61 @ 1
thumbzoomgordonelectricsupply.comXB5S2B2L2441.01In Stock10SQUARE D441.0 @ 1
thumbzoomcrescentelectric.com81548484.151In StockSchneider Electric484.15 @ 1
thumbzoomNewark73R5299486.2716SCHNEIDER ELECTRIC486.27 @ 1
thumbzoomZoroG3063155493.99113Schneider Electric0.45493.99 @ 1
AmazonTPB00CONPSKS524.041In Stock3SCHNEIDER ELECTRIC524.04 @ 1
rspsupply.comSCHNEIDER XB5S2B2L2524.771In StockSchneider Electric524.77 @ 1
Graybar25404153541.8561In StockSquare D (Schneider Electric)541.856 @ 1
thumbzoomTMEXB5S2B2L2553.881In StockSCHNEIDER ELECTRIC553.88 @ 1
grainger.caSQDXB5S2B2L2581.022219121In StockSCHNEIDER ELECTRIC0.45581.02221912 @ 1
Future Electronics8028411618.8045In StockSchneider Electric618.804 @ 5
thumbzoomsustainablesupply.comC1206453670.81In StockSchneider Electric0.45670.8 @ 1
thumbzoomNational Supply Network55489041744.251In StockSquare D744.25 @ 1
us.rs-online.com70008103876.5514Schneider Electric876.55 @ 1
thumbzoombscsource.comXB5S2B2L2963.991In StockSquare D963.99 @ 1
