- mpnD2CM2J14
- brandname: U.S. Motors
- manufacturername: U.S. Motors

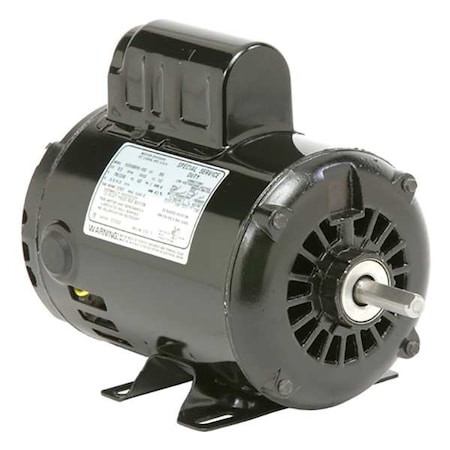

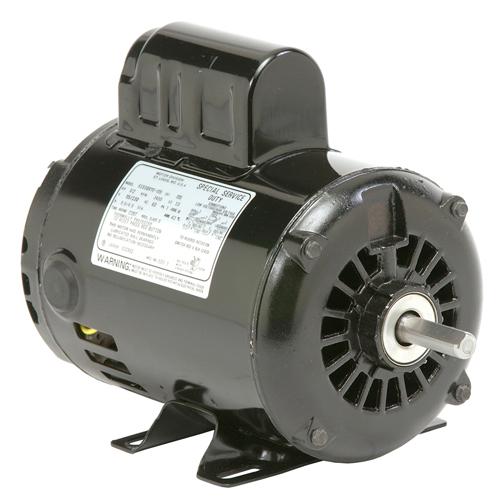

Emerson D2CM2J14 - Motor - Emerson; Nidec; US Motors
- Brand: Emerson
- PartNumber: D2CM2J14
- Binding: Kitchen
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 20.0/11.3-10.0 |
| Bearings | Ball |
| Capacitor | 50MFD/370VAC |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 46.20 |
| Family Series | US Motors Motors |
| FL Amps | 20.0/11.3-10.0 |
| FL Efficiency | 78.5 |
| Frame | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 20.0/11.3-10.0 |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor,2HP,1725RPM,115/2. |
| Item Number | D2CM2J14 |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 11 15/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063DCG1640012B |
| Manufacturer Part Number | D2CM2J14 |
| Max. Ambient Temp. | 104 Degrees F |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063DCG1640012B |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCWLE |
| Motor Thermal Protection | Manual |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| Nameplate RPM | 1,725 RPM |
| NEMA Frame | 145T |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 78.5 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 14 1/4 in |
| Overload Protection | Manual |
| Part Number | D2CM2J14 |
| Phase | 1, Single |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 5/16 in |
| Ship Weight | 42 lbs. |
| Speed (RPM) | 1725 |
| Thermal Protection | Manual |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115, 208, 230 |
| Weight | 32 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | D2CM2J14 | 636.95 | 1 | In Stock | | US Motors (Nidec) | 46.2 | 636.95 @ 1 |
 | Zoro | G4404865 | 650.01 | 1 | In Stock | | U.S. Motors | 42.0 | 650.01 @ 1 |
 | Galco | D2CM2J14-USM | 830.05 | 1 | In Stock | | US Motors | 32.0 | 830.05 @ 1 |
 | emotorpro.com | D2CM2J14 | 854.23 | 1 | In Stock | | U.S. Motors | 42.0 | 854.23 @ 1 |
| motionindustries.com | 04385566 | 1059.81 | 1 | In Stock | | US Motors (Nidec) | | 1059.81 @ 1 |
 | National Supply Network | 40698102 | 1096.22 | 1 | In Stock | | US MOTORS | | 1096.22 @ 1 |
 | bscsource.com | D2CM2J14 | 1100.49 | 1 | In Stock | | US Motors | | 1100.49 @ 1 |
 | Guardian | 40698102 | 1181.51 | 1 | In Stock | | US Motors | | 1181.51 @ 1 |
