Worldwide Electric HdRF325-40/1-DE-56C

B00KC4EMRQ

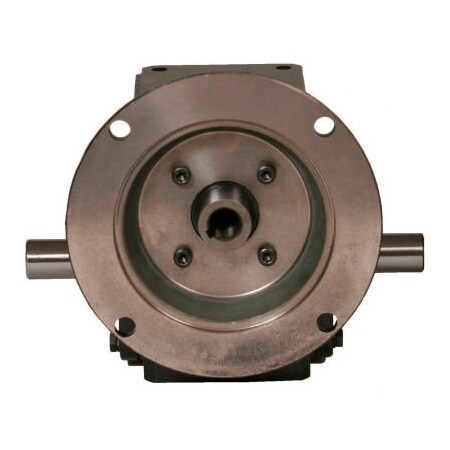

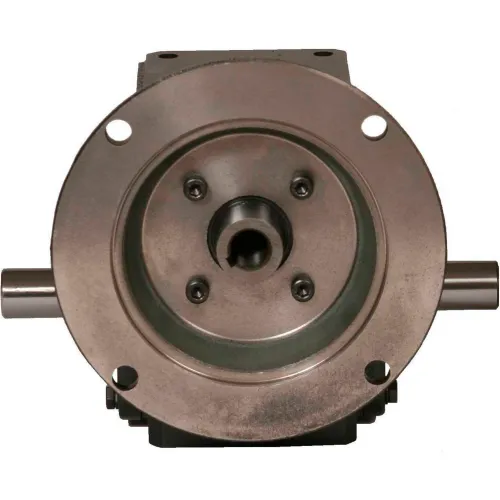

Worldwide Electric HdRF325-40/1-DE-56C Worm Gear Reducers, Double End Output, 40:1 Ratio, 44 Output RPM, 56C Frame, 3.25" WCD Center

Worldwide Electric HdRF325-40/1-DE-56C Worm Gear Reducers, Double End Output, 40:1 Ratio, 44 Output RPM, 56C Frame, 3.25" WCD Centerzoom

Attributes

Key Value
Box size325
Box Size325
Center Distance3.25, 3.25 "
ClassificationRight Angle Worm
Country of Origin (subj.Taiwan, Province of Chi.
Description:Worm Gear Reducer - 40:.
Family SeriesWorldwide Electric Corp.
Frame56C
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore Size0.625 "
Input TypeFlange
Input typeFlange input
Item ConditionFactory New
Item NumberHDRF325-40/1-DE-56C
ManufacturerWorldwide, Worldwide El.
Manufacturer Part NumberHDRF325-40/1-DE-56C-WWEC
MaterialCast Iron
MAX HP3.35
Max Input HP (@ 1750 RP.3.35 hp
Max Output Torque3692
Max OverHung Load (OHL)1,200
MFG Part #:HDRF325-40/1-DE-56C
Motor Frame SizeNEMA 56C
NEMA Motor frame56C
Net Weight87 lbs
Nominal Torque (in-lbs)3,692 in-lbs
Nominall Ratio40:1
OHL1200
Output RPM at 1800 RPM .44
Output Shaft Diameter1.375 "
Output Shaft TypeDouble Shaft
Output Speed (RPM)44 RPM
Output typeDouble end
Output TypeDOUBLE ENDED SHAFT
Product SeriesHDR
Ratio1, 40:1
RPM44
Stages1
Supplier:Worldwide Electric Corp.
Warranty lengthOne year
WCD center3.25 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB1856632529.01In StockWorldwide Electric Corporation529.0 @ 1
AmazonB00KC4EMRQ540.351In StockWorldwide Electric540.35 @ 1
thumbzoomNational Supply NetworkB1856632548.751In StockWorldwide Electric Corporation548.75 @ 1
thumbzoomGalcoHDRF325-40/1-DE-56C-WWEC590.421In StockWorldwide Electric Corporation87.0590.42 @ 1
thumbzoomMRO Supply1848496631.61In StockWorldWide Electric631.6 @ 1
kscdirect.comWWE HDRF325-40/1-DE-56C703.41In StockWorldwide Electric Corporation703.4 @ 1
thumbzoomDealers ElectricHDRF325-40/1-DE-56C770.5217Worldwide87.0770.52 @ 1
thumbzoomZoroG004903045870.721In Stock7Worldwide Electric870.72 @ 1
