A. O. Smith HW2004L

B007ATNTVG

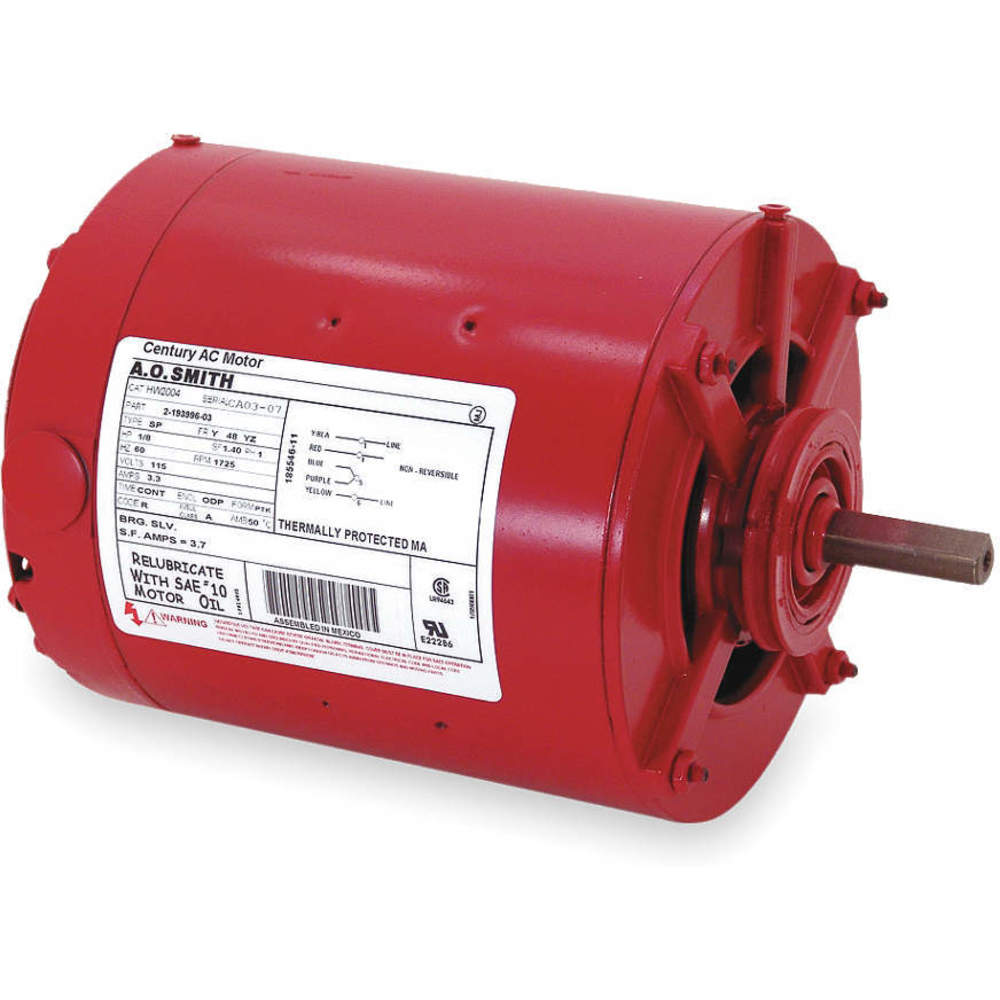

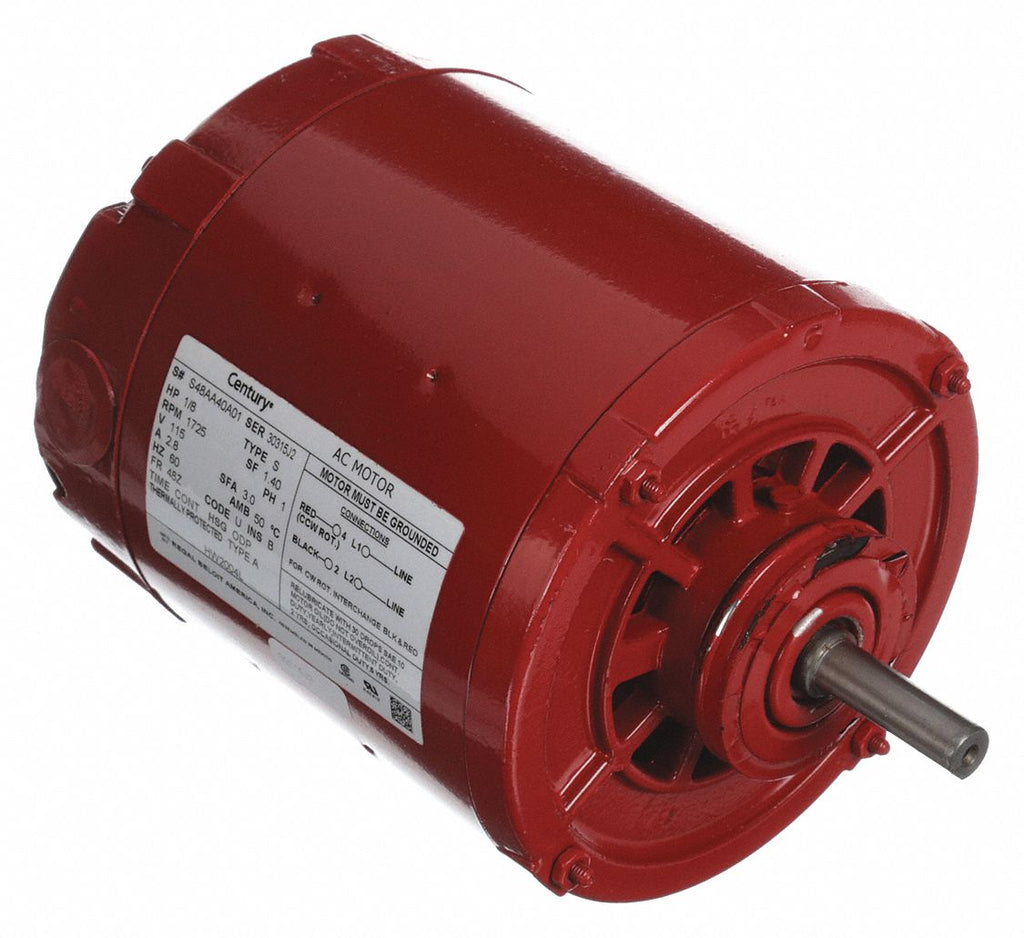

A.O. Smith HW2004L 1/8 HP, 1.4 Service Factor, 48Z Frame, Shaft - 1/2-Inch x 1-1/2-Inch With Flat Hotwater Circulator Motor

A.O. Smith HW2004L 1/8 HP, 1.4 Service Factor, 48Z Frame, Shaft - 1/2-Inch x 1-1/2-Inch With Flat Hotwater Circulator Motorzoom

Attributes

Key Value
Amps2.8
BearingsSleeve
Body Dia.5.6 in
Body Diameter5 9/16 in
BrandCentury
CategoryElectric Motor
Compatible with Pump Ty.In-Line Circulating Pum.
Country of Origin (subj.Mexico
Current Stock4
Duty CycleContinuous
EnclosureODP
Enclosure TypeODP (Open Dripproof)
FinishRed
Frame48Z
Frequency60 Hz
Full Load Amps2.8
Full Load Current2.8 A
Height5 9/16 in
Horsepower1/8
HP1/8
HW2004L is listed in Ce.A.O. Smith 193996, A.O..
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemCirculating Pump Motor
Item ConditionFACTORY NEW
Length Less Shaft7 7/16 in
ManufacturerCentury
MaterialHAWA
Max. Ambient Temp.50 Degrees C
Maximum Ambient Tempera.122 Degrees F, 50? C
Maximum RPM1,725 RPM
Motor ApplicationPump
Motor BearingsSleeve
Motor DesignSplit-Phase
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeRing
Motor Service Factor1.4
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Sub ApplicationWater Circulator
Motor Thermal ProtectionAuto
MountingBand/Ring
mounting**Cushion Ring
MpnHW2004L
Nameplate RPM1,725
Nameplate Voltage115V AC
No. of Speeds1
Number of Speeds1
Overall Length9 in
Phase1, Single
Product TypeSplit Phase
Replacement ForMfr. No. HW2004
Resilient Ring Dia.2 1/4 in
Ring Dia.2 1/4 in
Ring to Ring Center7 in
RotationCCW Shaft End
RPM1700 - 1800, 1800, 1725
RPM Range1,701-1,800
Service Factor (SF)1.40
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length1-1/2", 1 9/16 in
Ship Weight12 lbs.
SKUCU-35454C4C35
StandardsCSA, UL
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115, 115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight12 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply591865766.952In StockCentury66.95 @ 2
thumbzoomktool.netHW2004L122.931In StockCentury122.93 @ 1
thumbzoomVoomi SupplyHW2004L138.721In StockCentury Motors138.72 @ 1
AmazonSCB007ATNTVG141.521In StockA.O. Smith141.52 @ 1
thumbzoomemotorpro.comHW2004L145.491In StockCentury12.0145.49 @ 1
thumbzoomsustainablesupply.comC1563149154.661In StockCentury11.58154.66 @ 1
thumbzoomZoroG3384202162.461In StockCentury11.58162.46 @ 1
thumbzoomindustrialstores.comHW2004L174.691In Stock12Century Motors by Regal Beloit174.69 @ 1
thumbzoommidwestapplianceparts.comHW2004L-AO-P178.821In StockAO Smith178.82 @ 1
thumbzoomDealers ElectricHW2004L200.411In StockCentury12.0200.41 @ 1
thumbzoomsimsupply.comCU-35454C4C35212.361In StockCentury212.36 @ 1
thumbzoomRaptor SuppliesAE3PNF329.49534151In StockCENTURY329.4953415 @ 1
