Genteq 2S002

mpn2S002
brandname: Genteq
manufacturername: Genteq

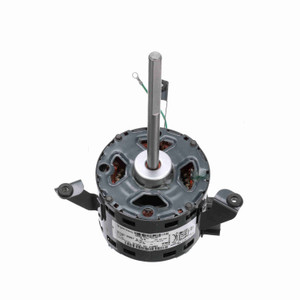

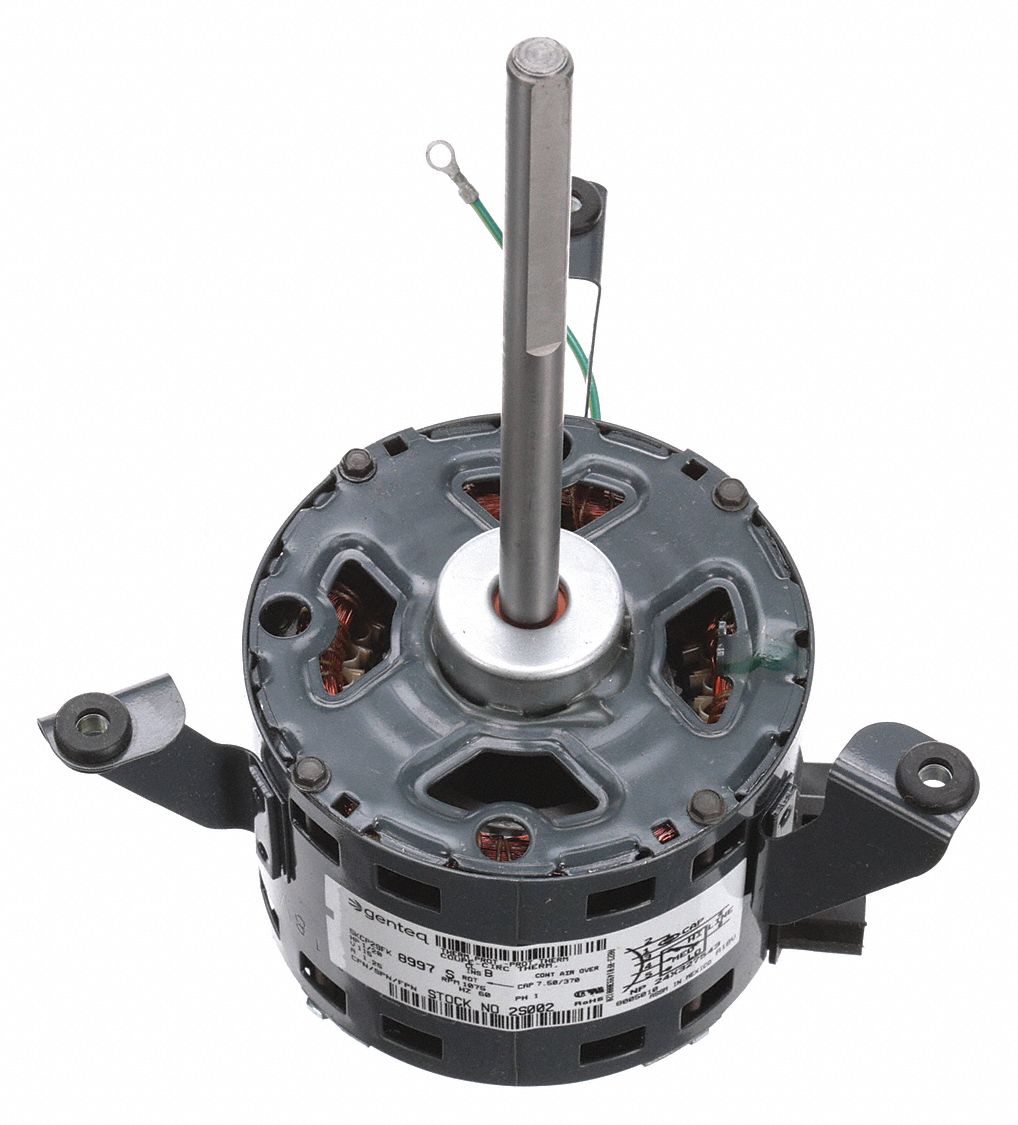

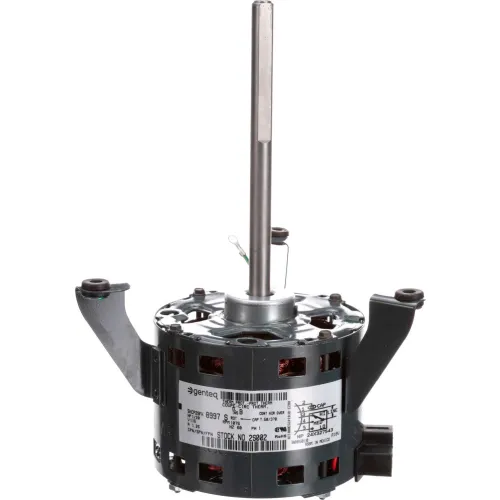

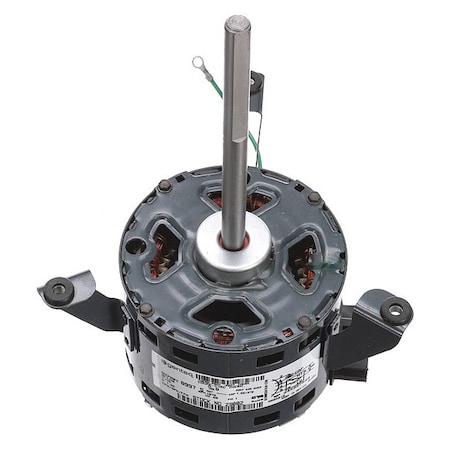

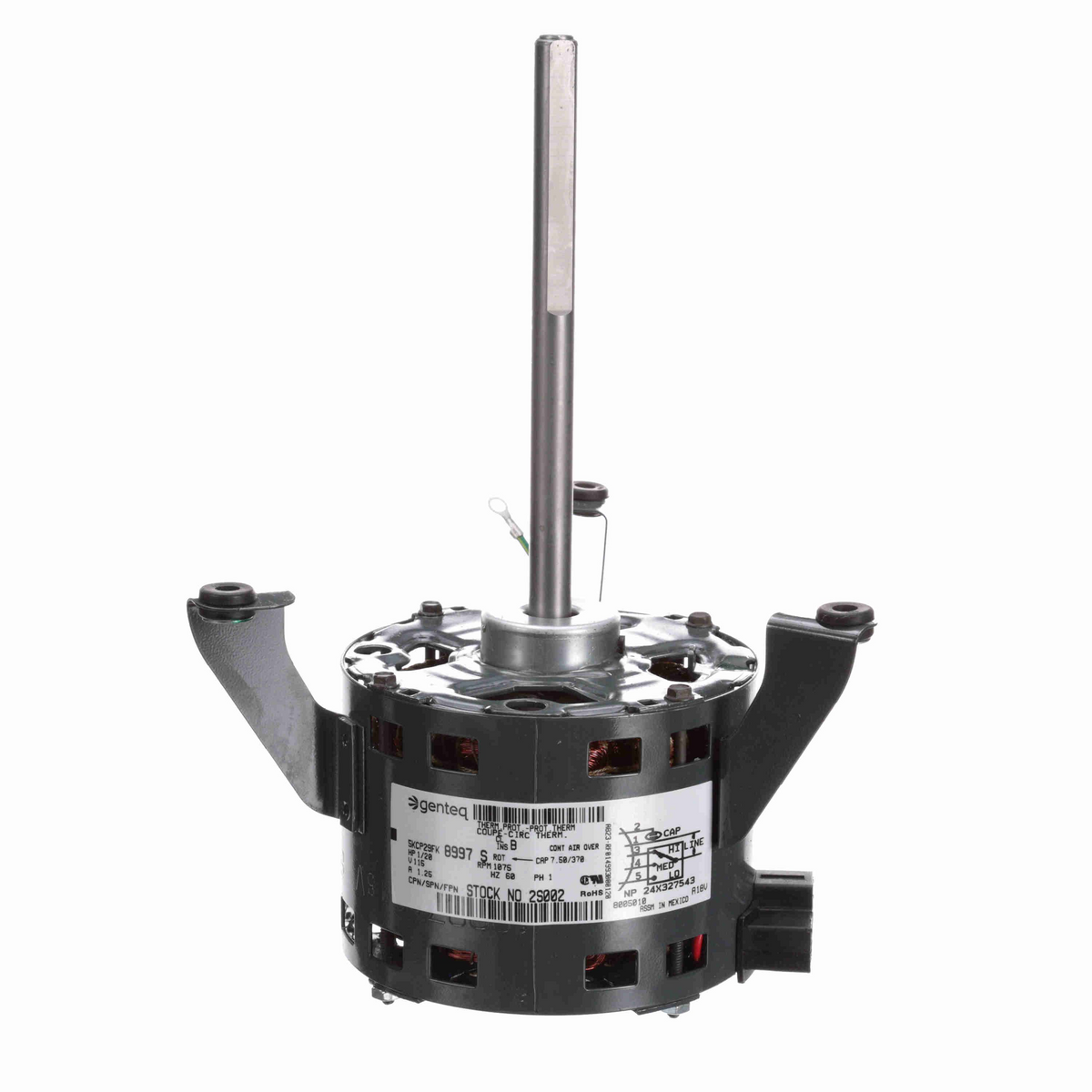

Condenser Fan Motor, 1/20HP, 1075 RPM, 1.2A

Condenser Fan Motor, 1/20HP, 1075 RPM, 1.2A

zoom

Brand: Genteq
PartNumber: 2S002
Model: 2S002
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	1.25
Bearings	Sleeve
Body Dia.	5"
Bolt Circle Dia.	4-5/8"
Brand	Genteq
C-Dimension (In.)	11.06
Capacitor	7.5MFD/370VAC
Catalog Number	2S002
CE	N
Cross Reference	International Environme.
CSA	Y
DE Bearing Type	Sleeve
DEM Reference	2S002
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Op.
Frame	42, 29
Frame Material	Rolled Steel
Frame Type	42
Frequency	60
HP	1/20 HP, 1/20, 0.05
Insulation Class	B
International Shipping	No
IP Code	-
Item	Motor
KVA Code	-
Length Less Shaft	4 9/16 in
Manufacturers Warranty .	1 yr.
Max Ambient	40?C
Motor Application	HVAC-R
Motor Design	Permanent Split Capacit.
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Lug
Motor Orientation	Horizontal
Motor Shaft Rotation	Counterclockwise
Motor Sub Application	Condenser Fan
Motor Thermal Protection	Automatic
Mounting	Flex Bracket
Mounting Type	Lug
Mpn	2S002
Nameplate RPM	1075 rpm
No. of Speeds	3
Number of Phases	1
Number of Shafts	1
Number of speeds	3
Number of Speeds	3
ODE Bearing Type	Sleeve
OEM Replacement Brand	IEC
Overall Length	11.04", 11.06"
Phase	1
Product Category	HVAC/R Motors > HVAC/R.
Product Type	PSC (Permanent Split Ca.
Rotation	Counterclockwise, CCW S.
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	1001-1100
Service Factor	1
Shaft Dia.	1/2"
Shaft Diameter (In.)	0.500
Shaft Extension (In.)	6.50
Shaft Length	6-1/2"
Shaft Type	Flat
Ship Weight	10 lbs.
SKU	ZO-G3725830
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Type of Overload Protec.	Thermally Protected
UL	Recognized
UPC	815585021360
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3725830	177.99	1	In Stock		Genteq	10.2	177.99 @ 1
	AmazonTP	B01MPZZX1B	184.32	1	In Stock	2	GENTEQ		184.32 @ 1
	emotorpro.com	2S002	192.57	1	In Stock		Genteq	10.0	192.57 @ 1
	simsupply.com	ZO-G3725830	206.57	1	In Stock		Genteq		206.57 @ 1
	Dreisilker	GE-RBC-2S002	207.37	1	In Stock		Genteq		207.37 @ 1
	Global Industrial	WBB2776888	239.95	1	In Stock		Genteq		239.95 @ 1
	sustainablesupply.com	C2781767	252.72	1	In Stock		Genteq	10.2	252.72 @ 1
