NTN R8ZZC3/5C

mpnR8ZZC3/5C
brandname: NTN
manufacturername: NTN

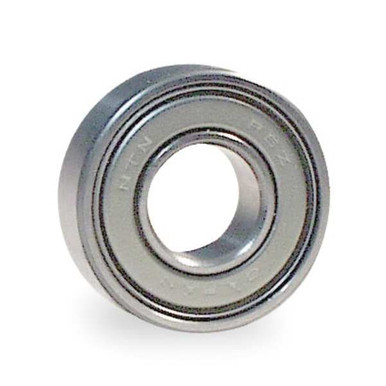

Radial Bearing, Shield, 0.5000 in. Bore

Radial Bearing, Shield, 0.5000 in. Bore

zoom

Brand: NTN
PartNumber: R8ZZC3/5C
Model: R8ZZC3/5C
Manufacturer: NTN
Label: NTN

Attributes

Key	Value
Ball Material	Alloy Steel
Bearing Industry Number	R8
Bearing Type	Shielded
Bore Dia.	0.5 in
Bore Diameter	1/2 in
Brand	Ntn
Cage Material	Steel
Cage Type	Pressed
Closure	Double Shielded
Closure & Seal Type	Double Shielded
Current Stock	197
Dynamic Load Capacity	1,150 lb
Dynamic Radial Load Cap.	5,120 N
Fillet Radius	0.406 mm
Finish	Chrome Plated
Includes Retaining Ring	No
Industry Number	R8ZZC3/5C
International Shipping	No
ISO Rating	Class 0
Item	Radial Ball Bearing
Lubricant Material	SRI 2 Grease, SRI 2
Lubrication	SRI#2 Grease
Maximum Speed	26,000 RPM
Maximum Temperature	120 Degrees C
Minimum Temperature	-40 Degrees C
Mpn	R8ZZC3/5C
Number of Rows	One
Outer Ring Width	0.312 in
Outside Dia.	1.125 in
Outside Diameter	1 1/8 in
Retaining Ring Diameter	Not Applicable
Retaining Ring Groove	No
Retaining Ring Thickness	Not Applicable
Ring Material	Alloy Steel
Seal Material	Synthetic Rubber Molded.
Seal/Shield Type	Double Shielded
Shield Material	Metal
Single Row/Double Row	Single Row
SKU	ZO-G2736876
Static Load Capacity	540 lb
Static Radial Load Capa.	2,400 N
SubCategory	Power Transmission
System of Measurement	Inch
Temp. Range	-20 Degrees to 250 Deg.
Width	0.3125 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	sustainablesupply.com	C1661514	20.43	1	In Stock		NTN	0.1	20.43 @ 1
	grainger.ca	WWG1L005	21.13547072	1	In Stock		NTN	0.1	21.13547072 @ 1
	AmazonTP	B000CCTSNQ	24.87	1	In Stock	2	Ntn		24.87 @ 1
	Zoro	G2736876	29.99	1	379		Ntn	0.1	29.99 @ 1
	Raptor Supplies	AB2BNY	34.5596355	1	In Stock		NTN		34.5596355 @ 1
	simsupply.com	ZO-G2736876	43.24	1	197		Ntn		43.24 @ 1
