- mpn15154005
- brandname: Osg
- manufacturername: Osg

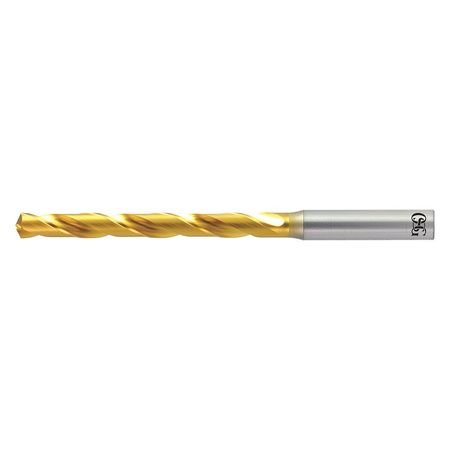

Jobber Drill Bit, #23, HSS - Co
- PackageQuantity: 1
- Manufacturer: OSG
- Label: OSG
Attributes
| Key | Value |
|---|
| Application | For Aluminum : Casting. |
| brand | OSG |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| coolant through | No |
| Country of Origin | Japan |
| Country of Origin (subj. | Japan |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.154, 0.1540 |
| Depth x Dia. Ratio | 5xD |
| Depth:Dia. Ratio | 5xD |
| diameter tolerance | +0 / -0.018mm |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 130 ?, 130 Degrees |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | #23 |
| Drill Diameter Tolerance | +0.000/-0.018 mm |
| Drill Length Class | Jobber Length |
| Finish - Machining | TiN |
| flute angle | 30 Degree |
| Flute Length | 2 in |
| flute length mm | 50.00 |
| Flute Type | Spiral |
| Helix Angle | 30 Degrees, 30? |
| Item | Jobber Length Drill Bit |
| Item? | 34ZA79 |
| list number | 1500 |
| List Number | 1500 |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 in |
| Measurement System | Wire |
| Mfr. Model? | 15154005 |
| number of flutes | 2 |
| Number of Flutes | 2 |
| Overall Length | 3 7/16 in, 3-7/16 in |
| overall length inch | 3.425 |
| point angle | 130 |
| Point Type | X |
| Primary Material Applic. | Steel, Tool and Die Ste. |
| Primary Material Applic. | P |
| Secondary Material Appl. | Aluminum, Cast Iron, Ha. |
| Secondary Material Appl. | H, K, M, N, P, H; K; M;. |
| Series | 1500 |
| Shank Dia. | 3/16 in |
| Shank Length | 37.00 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1760678 | 21.13 | 1 | In Stock | 7 | Osg | 0.1 | 21.13 @ 1 |
| Grainger | 34ZA79 | 22.4 | 1 | In Stock | | OSG | | 22.4 @ 1 |
| tmttoolbox.com | 15154005 | 23.48 | 1 | In Stock | | osg | | 23.48 @ 1 |
 | sustainablesupply.com | C2799498 | 25.08 | 1 | In Stock | | OSG | 0.1 | 25.08 @ 1 |
 | bscsource.com | 15154005 | 29.09 | 1 | In Stock | | OSG | | 29.09 @ 1 |
 | National Supply Network | 09593492 | 30.42 | 1 | In Stock | | OSG | | 30.42 @ 1 |
 | Guardian | 09593492 | 30.93 | 1 | In Stock | | OSG | | 30.93 @ 1 |
