- mpnLCA2/0-38-X
- brandname: PANDUIT
- manufacturername: PANDUIT

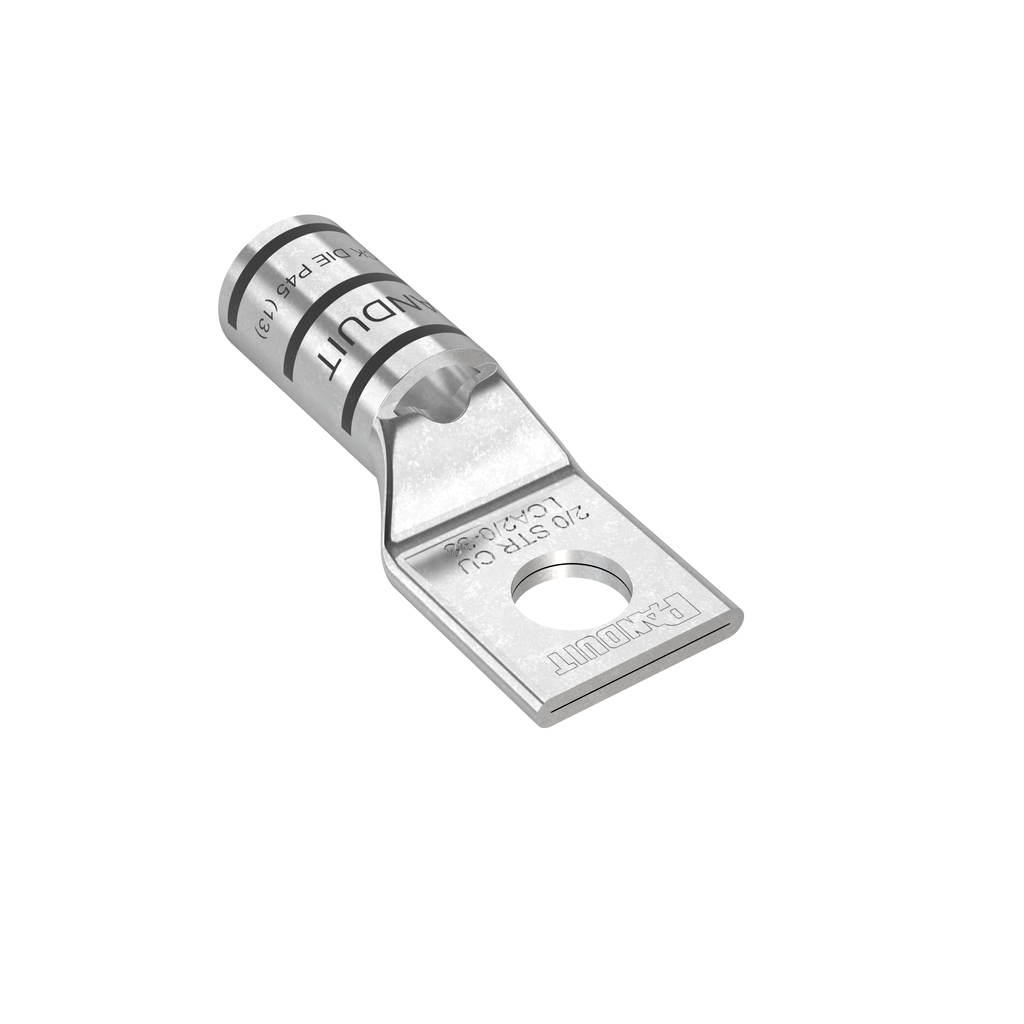

Panduit LCA2/0-38-X Copper Compression Lug, One-Hole, Standard Barrel with Window, 2/0 AWG Wire, 3/8" Stud Hole (Pack of 10)
- Brand: Panduit
- PartNumber: LCA2/0-38-X-Pand
- Model: LCA2/0-38-X
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 2/0 |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Barrel Type | Standard Barrel with In. |
| Base Material | Copper |
| Brand | Panduit, Pan-Lug? |
| Burndy Die Index Number | 13 |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Catalog Number | LCA2/0-38-X |
| Color | Black |
| Color Code | Black |
| Color Family | Black |
| Copper Code Conductor S. | 2/0, 36557 |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin 2Digit | MX |
| Die Color | Black |
| EAN | 00074983900305 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gross Weight | 0.805 lbs |
| GTIN | 00074983900305 |
| GTIN Package | 00074983900305 |
| Hazardous Material Flag | N |
| Inside Diameter (In.) | 0.45 |
| Inside Diameter (mm) | 11.43 |
| Item Number | LCA2/0-38-X |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Lug Type | 1 Stud Hole Lug |
| Lug Wire Size | 2/0 AWG |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCA2/0-38-X |
| Material | Copper |
| Material/Composition | Copper |
| Max Conductor Range | 2/0 AWG |
| Maximum Voltage (kV) | 35 |
| Mercury Content Indicat. | No |
| Min Conductor Range | 2/0 AWG |
| Min Order Qty | 40 |
| Min. Order UOM | Piece |
| Mounting | 42370, 1-Hole |
| Net Weight | 0.065 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Outer Diameter | 0.58 in. |
| Outer Diameter (In.) | 0.58 |
| Outer Diameter (mm) | 14.73 |
| Overall Length (In.) | 2.15 |
| Overall Length (mm) | 54.6 |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P45 |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Type | Copper Compression Conn. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Lug LCA Series |
| Size | 2/0 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0184 |
| Standard Package Weight. | 0.8050 |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.4 |
| Std Package Height MM | 86.36 |
| Std Package Length In | 4.75 |
| Std Package Length MM | 120.65 |
| Std Package Width In | 3.4 |
| Std Package Width MM | 86.36 |
| Std. Pkg. Qty. | 10 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 44993, 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Size | 3/8 in, 44628 |
| Sub Brand | Pan-Lug, Pan-Lug? |
| T & B Die Index Number | 13 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Type | Compression Lug, 1 Hole |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 074983900305, 074983900. |
| UPC Code | 074983900305 |
| Volts AC | 600 |
| Wire Size | 2/0 AWG |
| Wire Strip Length (In.) | 1-1/16, 42370 |
| Wire Strip Length (mm) | 27 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA2/0-38-X | 4.37 | 1 | 10 | | PANDUIT | | 4.37 @ 10 |
 | Digi-Key | 298-10571-ND | 6.42 | 1 | 10 | | Panduit Corp | | 6.42 @ 10 |
 | mayerelectric.com | PANLCA2038X | 6.5534 | 1 | 52 | | PANDUIT | 0.805 | 6.5534 @ 10 |
 | alldataresource.com | LCA2/0-38-X | 6.83 | 1 | 10 | | Panduit | | 6.83 @ 10 |
| Onlinecomponents.com | LCA2/0-38-X | 8.12 | 1 | 194 | | PANDUIT | | 8.12 @ 10 |
 | Newark | 14AC2028 | 8.39 | 1 | 75 | | PANDUIT | | 8.39 @ 10 |
| Hotenda | H1651030 | 8.454 | 1 | 10 | | Panduit | | 8.454 @ 10 |
 | Platt.com | 0713055 | 10.34 | 1 | 10 | | Panduit | | 10.34 @ 10 |
 | Galco | LCA2/0-38-X-PNDT | 10.54 | 1 | 10 | | Panduit | 0.805 | 10.54 @ 10 |
 | crescentelectric.com | 113594 | 11.06 | 1 | 33 | | Panduit | | 11.06 @ 10 |
| us.rs-online.com | 70518585 | 12.21 | 1 | 17 | | Panduit | | 12.21 @ 10 |
 | Carlton Bates Company | 07498390030 | 94.7 | 1 | 10 | | PANDUIT | | 94.7 @ 10 |
 | jensentools.com | 10016327 | 106.73 | 1 | 10 | | Panduit | | 106.73 @ 10 |
 | Zoro | G909173581 | 121.99 | 1 | 10 | | Panduit | | 121.99 @ 10 |
 | gordonelectricsupply.com | LCA2/0-38-X | 408.0 | 1 | 10 | 12 | PANDUIT | | 408.0 @ 10 |
| steinerelectric.com | 7050 | 490.37 | 1 | 10 | | Panduit | | 490.37 @ 10 |
 | turtle.com | PAN LCA2/0-38-X | 1144.5 | 1 | 10 | | Panduit | | 1144.5 @ 10 |
| Airline Hydraulics | 2043486 | 1170.55 | 1 | 10 | | PANDUIT | | 1170.55 @ 10 |
| Graybar | 88198137 | 1268.4896 | 1 | 20 | | Panduit | | 1268.4896 @ 10 |
