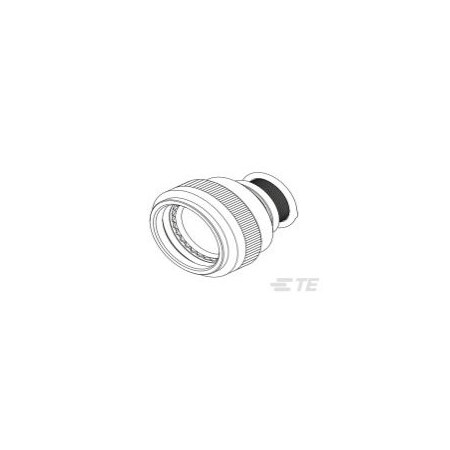

TE Raychem TXR76AB00-1610AI

B07NQT7KYM

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter AngleStraight
Adapter Entry Size10
Adapter Plating MaterialCadmium (AMS-QQ-P-416, .
Backshell MaterialAluminum
Base Product NumberTXR76AB00
Cable Diameter Range7.9 ? 12.7 mm[.313 ? .5.
Cable Entry Diameter.2 ? 15.9 mm[.01 ? .63 .
Cable Exit180?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.Patt 105, Patt 603
Connector General Speci.BS9522 F0017,BS9522 N00.
Connector Shell Size16
Diameter - Outside1.173"" (29.80mm)
FeaturesTinel Lock
For Use With/Related Pr.BS9522 N0001 (PATT603),.
Includes4 pcs - 1 Backshell, 1 .
Ingress Protection-
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Raychem.
Operating Temperature R.-65 ? 175 ?C[-85 ? 347 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
Part StatusActive
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Salt Spray Resistance500 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert16
ShieldingShielded
TE Adapter Code76
Termination Device Incl.TR10AI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread Size15/16-20 UNEF
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key239512742.13750In StockTE Connectivity Raychem Cable Protection42.137 @ 50
VericalTXR76AB00-1610AI45.89132TE Connectivity / Raychem45.89 @ 1
WaldomTE CONNECTIVITY RAYCHEM TXR76AB00-1610AI48.13279TE CONNECTIVITY / RAYCHEM48.13 @ 2
thumbzoomZoroG60096212565.392In StockRaychem65.39 @ 2
Newark75AC276387.66179RAYCHEM - TE CONNECTIVITY87.66 @ 1
Allied ElectronicsE5198259129.125In StockTE Connectivity129.12 @ 5
