CLEVELAND C13832

mpnC13832
brandname: CLEVELAND
manufacturername: CLEVELAND

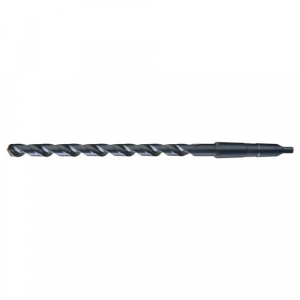

CLEVELAND Taper Shank Drill Bit,Size 33/64" C13832

CLEVELAND Taper Shank Drill Bit,Size 33/64" C13832

zoom

Brand: CLEVELAND
PartNumber: C13832
Model: C13832
Size: 33/64"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Tool Steel, Carbo.
Application	For Drilling Carbon Ste.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5156
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Steam Oxide
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Notched Point
Drill Bit Size	33/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.5156 in
Drill Size - Fraction	33/64 in
Finish	Steam Oxide
Finish - Machining	Black Oxide
Flute Length	8 in
Flute Type	Spiral
Grade	Heavy-Duty
Helix Angle	35 Degrees to 45 Degre.
Item	Taper Shank Drill Bit
List Number	940E
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	High Performance
Maximum Drilling Depth	8 in
Measurement System	Fractional Inch
Morse Taper	#2
Number of Flutes	2
Overall Length	12 in
Point Angle	118 deg
Point Type	K-Notch, Notched
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Secondary Material Appl.	Cast Iron
Secondary Material Appl.	K
Series	940E
Shank Taper Designation	#2 Morse Taper
Shank Type	Taper
Shank Type - Machining	Taper
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	940E
Surface Condition	Steam Oxide
Taper Shank Size	MT2
Through Coolant (Yes/No)	No
Tool Size	33/64"
Type	Extra Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110679	101.32	1	In Stock		Cleveland		101.32 @ 1
	usmegastore.com	C13832	107.4	1	In Stock		Cleveland		107.4 @ 1
	Zoro	G2991182	113.87	1	1		Cleveland	0.62	113.87 @ 1
	Amazon	B00075EMO8	148.71	1	In Stock		Cleveland		148.71 @ 1
	bscsource.com	C13832	197.69	1	In Stock		Cleveland		197.69 @ 1
	Guardian	68310879	227.23	1	In Stock		Cleveland		227.23 @ 1
