Dodge INS-DL-012-CR

mpnINS-DL-012-CR
brandname: Dodge
manufacturername: Dodge

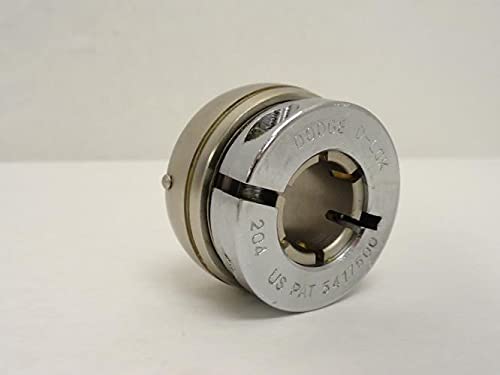

INS-DL-012-CR Insert Bearing ; 3/4 BORE IR WID 1.85" OD"

INS-DL-012-CR Insert Bearing ; 3/4 BORE IR WID 1.85" OD"

zoom

Brand: Dodge
PartNumber: INS-DL-012-CR
Model: INS-DL-012-CR
PackageQuantity: 1
Manufacturer: Dodge
Label: Dodge

Attributes

Key	Value
Application	Washdown
Bearing type	Ball, ball
Bore	0.75 Inch \| 19.05 Milli.
bore type:	Round
Brand	DODGE
Category	Insert Bearings Spheric.
Duty	Standard Duty
Expansion	No
finish/coating:	Uncoated
Global Part Number GPN	560577
Greasable	Yes
Harmonized Tariff Code	8482.10.50.00
High temp	No
Inch - Metric	Inch
Inner Race Profile	Wide Inner Ring
Insert option	Corrosion resistant
Insert type	Ball Bearing
Length Thru Bore	1.281 Inch \| 32.537 Mil.
Locking	Concentric Collar
locking device:	Concentric Collar
manufacturer catalog nu.	126685
Manufacturer Name	ABB MOTORS AND MECHANIC.
Mounting Method	Concentric Collar
Other Features	Single Row \| Normal Dut.
Outer Race Profile	Spherical
Outer Race Width	0.591 Inch \| 15.011 Mil.
Outside Diameter	1.85 Inch \| 46.99 Milli.
price	$ 123.87 / each
radial dynamic load cap.	2899 lb
radial static load capa.	1482 lb
Relubricatable	Yes
Relubrication	Yes
Rolling element	Standard duty ball
Seal option	DualGuard seals with fl.
Seal Type	Single Lip Contact
seal type:	Contact/Lip
series:	204
Shaft attachment	Clamp collar
Shaft diameter	0.7500 in
Snap Ring	No
Suitable for high tempe.	No
Suitable for washdown	No
title	INS-DL-012-CR
Type	Ball bearing insert
UNSPSC	31171536
Weight / kgm	0.27
Weight / LBS	0.6

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Lily Bearing	INS-DL-012-CR	105.29	1	In Stock		DODGE	0.594	105.29 @ 1
	MRO Supply	127051	119.71	1	In Stock		Dodge		119.71 @ 1
	motionindustries.com	02718453	152.61	1	In Stock		Dodge		152.61 @ 1
