Genteq 2S001

mpn2S001
brandname: Genteq
manufacturername: Genteq

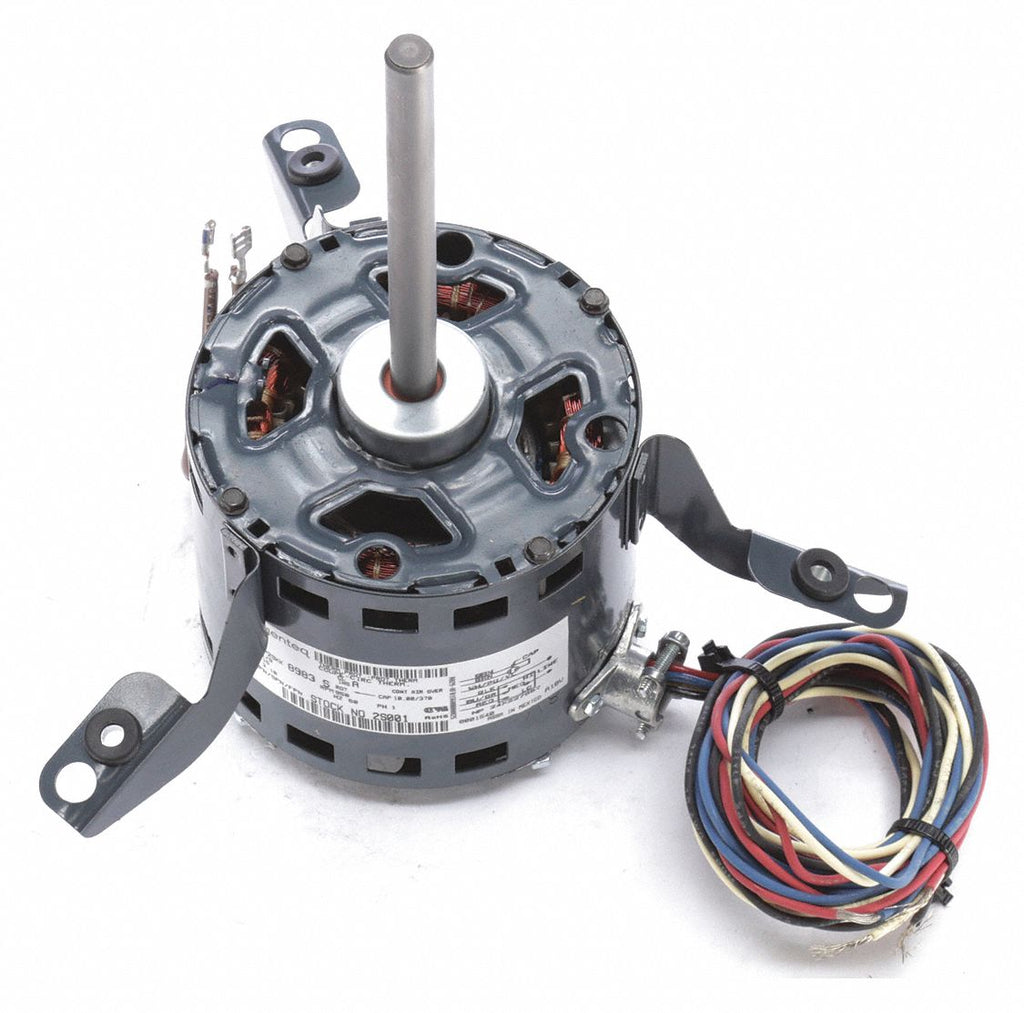

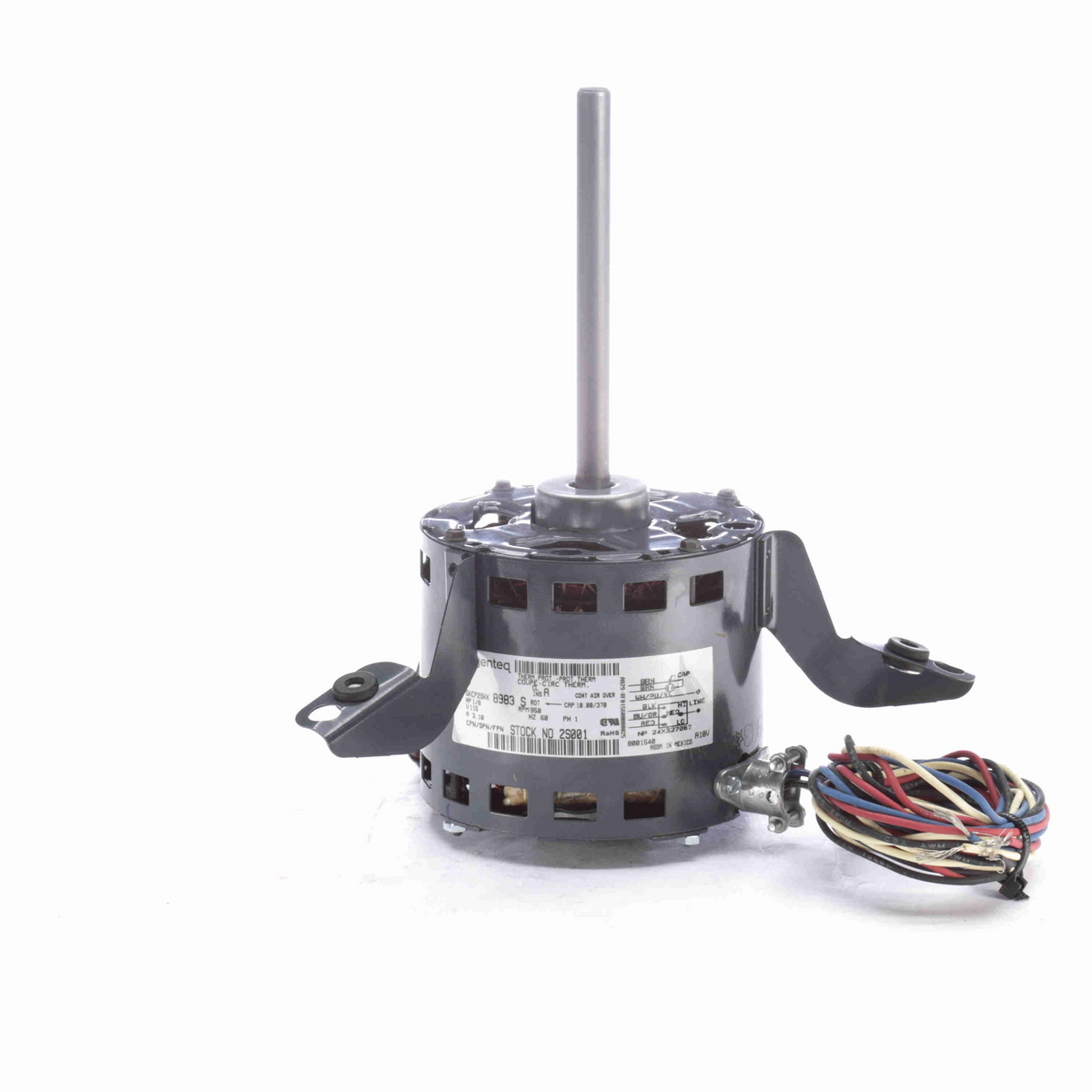

OEM Replacement Motor, 1/8HP, 950 RPM, 3.1A

Brand: Genteq
PartNumber: 2S001
PackageQuantity: 1
Binding: Misc.
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	3.10, 3.1
Bearings	Sleeve
Body Dia.	4.91"
Bolt Circle Dia.	4-5/8"
Brand	Genteq
C-Dimension (In.)	10.56
Capacitor	10MFD/370VAC
Catalog Number	2S001
CE	N
Cross Reference	International Environme.
CSA	Y
Current Stock	23
DE Bearing Type	Sleeve
DEM Reference	2S001
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Op.
Frame	42, 29
Frame Material	Rolled Steel
Frame Type	42
Frequency	60
HP	1/8 HP, 0.13, 1/8
Insulation Class	A
International Shipping	No
IP Code	-
Item	Motor
KVA Code	-
Length Less Shaft	5 1/16 in
Manufacturers Warranty .	1 yr.
Max Ambient	40?C
Motor Application	OEM Replacement
Motor Design	Permanent Split Capacit.
Motor Enclosure Design	Open Air-Over
Motor Mounting Type	Lug
Motor Orientation	Horizontal
Motor Shaft Rotation	Counterclockwise
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Automatic
Mounting	Flex Bracket
Mounting Type	Lug
Mpn	2S001
Nameplate RPM	950 rpm
No. of Speeds	3
Number of Phases	1
Number of Shafts	1
Number of speeds	3
Number of Speeds	3
ODE Bearing Type	Sleeve
OEM Replacement Brand	IEC
Overall Length	10.54", 10.56"
Phase	1
Product Category	HVAC/R Motors > HVAC/R.
Product Type	PSC (Permanent Split Ca.
Rotation	Counterclockwise, CCW S.
RPM	950
RPM (Nameplate)	950
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	0-1000
Service Factor	1
Shaft Dia.	1/2"
Shaft Diameter (In.)	0.500
Shaft Extension (In.)	5.50
Shaft Length	5-1/2"
Shaft Type	Flat
Ship Weight	12 lbs.
SKU	ZO-G3725849
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Type of Overload Protec.	Thermally Protected
UL	Recognized
UPC	815585023937
Volts	115

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonTP	B01M4IDN8E	199.99	1	In Stock	2	GENTEQ		199.99 @ 1
Zoro	G3725849	208.99	1	1		Genteq	11.95	208.99 @ 1
Dreisilker	GE-RBC-2S001	226.72	1	In Stock		Genteq		226.72 @ 1
simsupply.com	ZO-G3725849	242.54	1	In Stock		Genteq		242.54 @ 1
emotorpro.com	2S001	246.43	1	In Stock		Genteq	12.0	246.43 @ 1
sustainablesupply.com	C2781776	289.99	1	In Stock		Genteq	11.95	289.99 @ 1
