Genteq 5KCP29HKB023S

mpn2S006
brandname: Genteq
manufacturername: Genteq

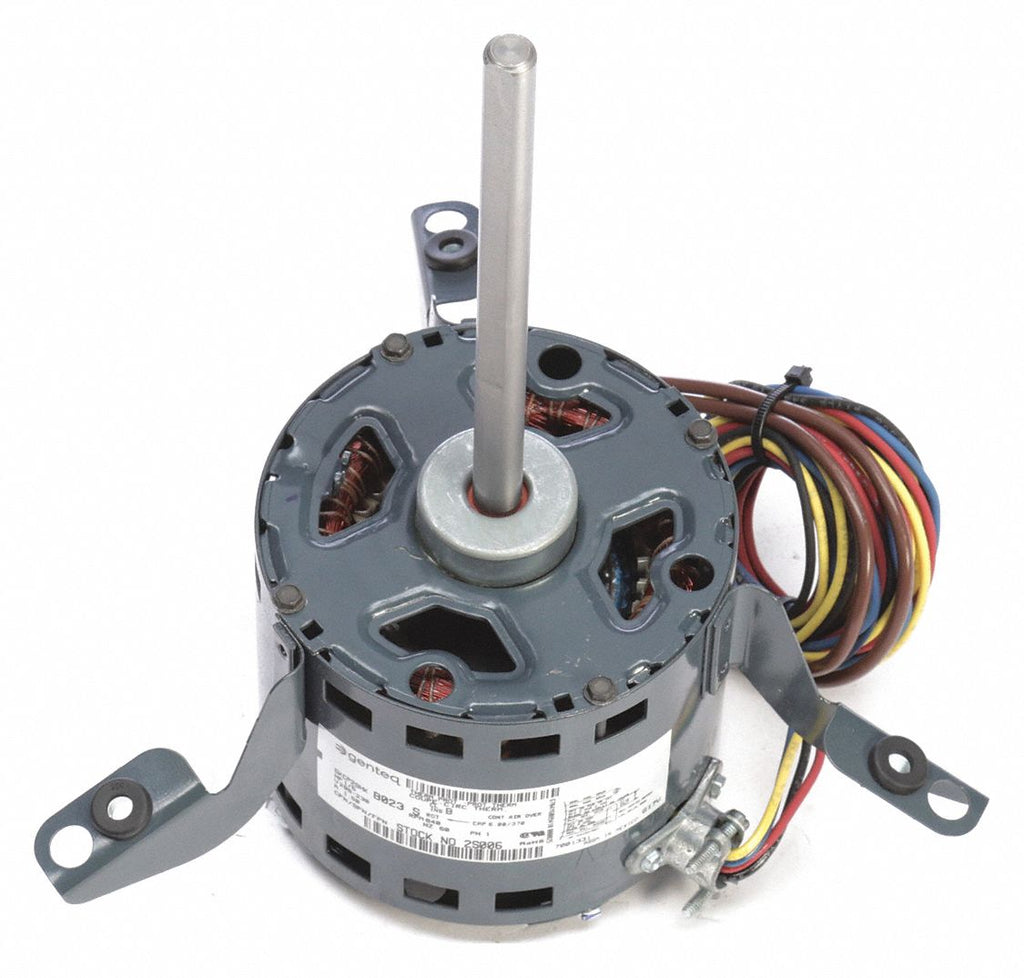

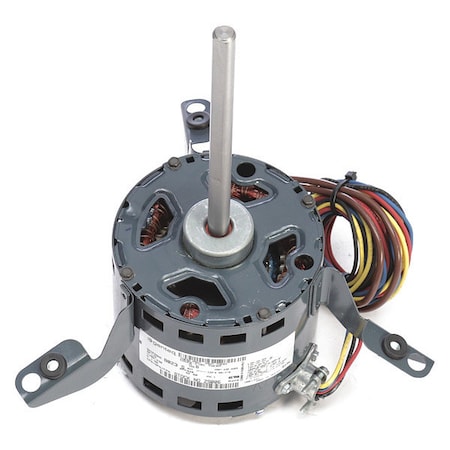

Condenser Fan Motor, 1/5 HP, 840 RPM, 1.5 A

Condenser Fan Motor, 1/5 HP, 840 RPM, 1.5 A

zoom

Brand: Genteq
PartNumber: 5KCP29HKB023S
Model: 2S006
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Application	General Electric
Body Dia.	4.91"
Bolt Circle Dia.	4-5/8"
Capacitor Required	2MDV5
Country of Origin (subj.	Mexico
Duty	Continuous Air Over
Duty Cycle	Continuous
Frame	42
Full Load Amps	1.5A
HP	1/5 HP
Hz	60 Hz
Ins. Class	B
Item	Motor
Length Less Shaft	5 1/16 in
Manufacturers Warranty .	1 yr.
Max. Ambient Temp.	40 Degrees C
Motor Application	HVAC-R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Lug
Motor Service Factor	1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	Counterclockwise
Motor Sub Application	Condenser Fan
Motor Thermal Protection	Automatic
Nameplate RPM	840 rpm
No. of Speeds	3
Number of Shafts	1
OEM Replacement Brand	IEC
Overall Length	12.06"
Phase	1
Replacement For	5KCP29HK6106S
RPM Range	0-1000
Shaft Dia.	1/2"
Shaft Length	7"
Standards	UL Recognized, CSA Cert.
Stud Size	#8-32
Usable @ 200V	No
Usable @ 208V	Yes
Voltage	208-230V
Voltage Compatibility	115/208-230V AC, 208-23.
Weight	11 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	sustainablesupply.com	C2781775	227.33	1	In Stock		Genteq	11.4	227.33 @ 1
	Zoro	G3725797	348.82	1	In Stock	26	Genteq	11.4	348.82 @ 1
